M22 X 150 HIGH SPEED CHUN ZU 4 DIE 4 STATION BOLT FORMER

View Seller Detail

MSZ-3969

Price: USD 284,200.00

Delivery Time	90 DAYS
Condition	GOOD & RUNNING
Country of Mfg	TAIWAN
Cut of Dia	23 mm
Cut of Length	195 mm
HP	75
Location	OUT OF INDIA
Make	CHUN ZU
Max Shank Length	150 mm
Max wire dia	22 mm
Model	CBF-204S
speed of machine	95 ppm
Weight	64000 KG
Year of Mfg	1986
Quantity	1

Specifications:

MACHINE IS IN RUNNING AND GOOD CONDITION

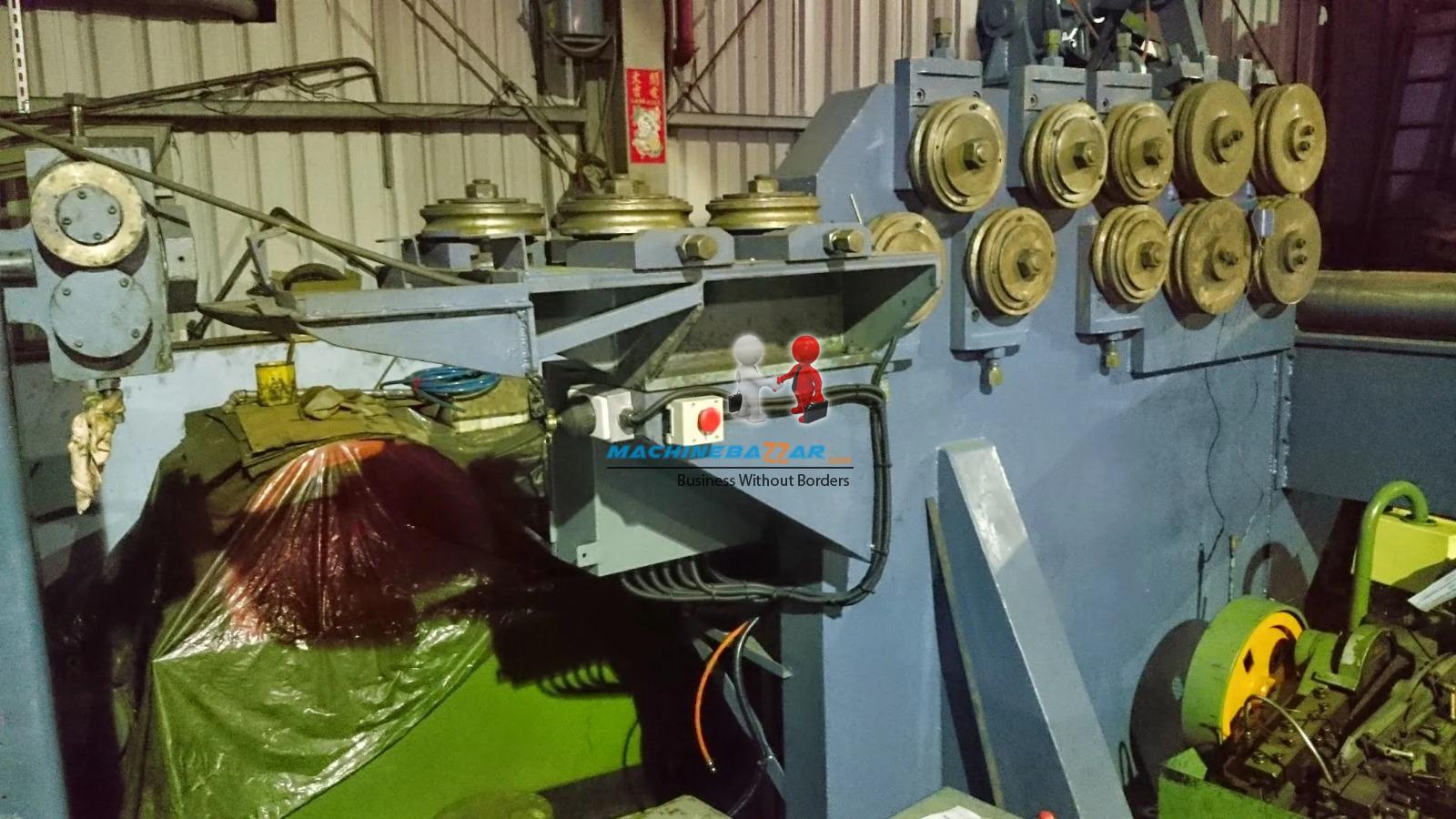

Accessories = Wire Straightener
Conditions = Reconditioned
Power = 220V 60HZ 3PH
Pattern: 4D4B
Forging Station: 4
Forging Load: 350000
Max Cut Off DIA: 23
Max Cut Off Length: 195
Max Out Put: 95 pcs/min
PKO Stroke: 46
KO Stroke: 170
Main Motor: 75 hp
Cut Off Die DIA: 75x120
Punch Dia: 90x215
Main Die DIA: 125x200
Size of Bolt: 12-20
Shank Length of Blank: 25-152 MM
L*W*H: 7300*3300*2800
Machine Weight: 64000
