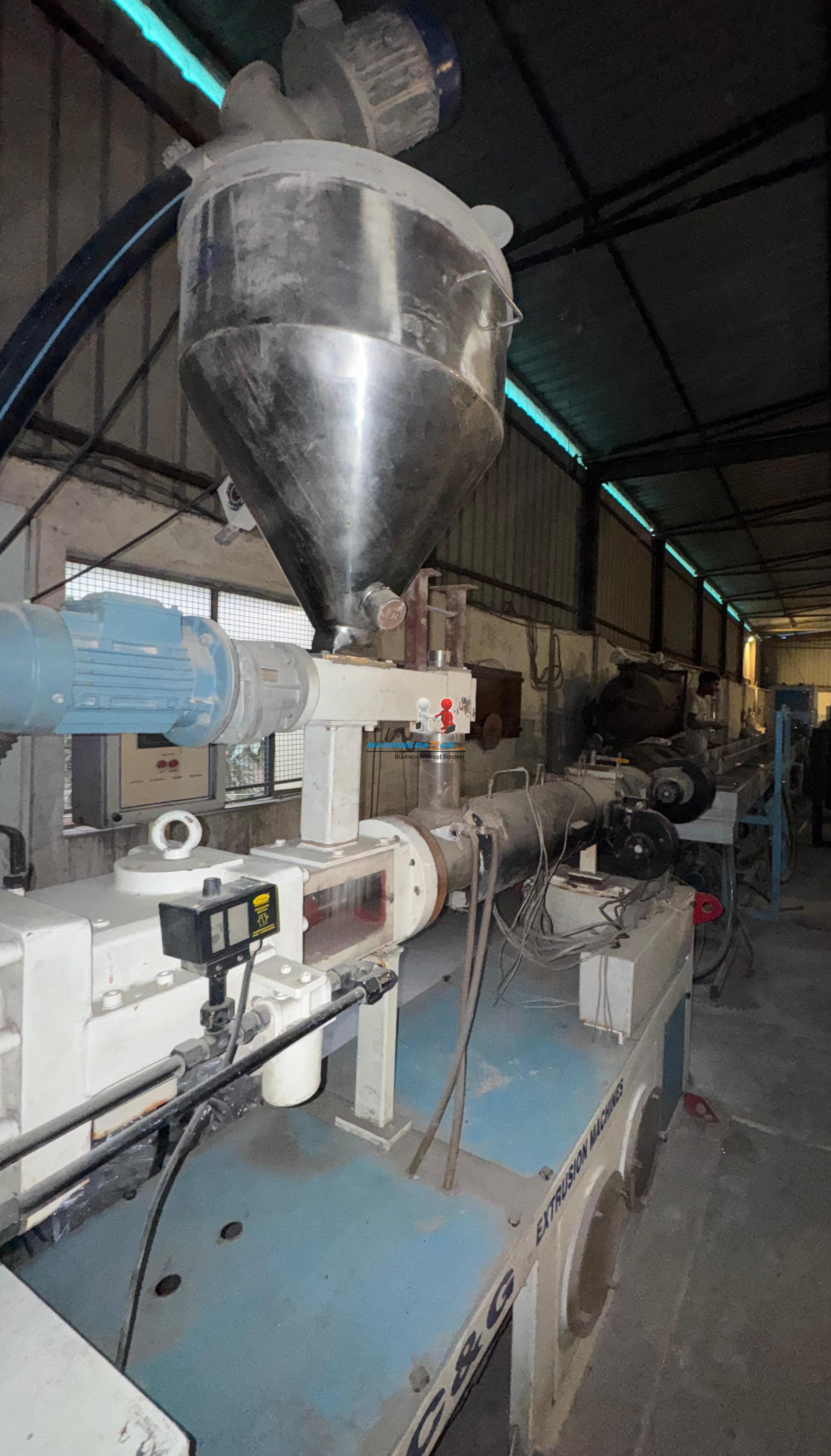

1. Twin Screw extruder CGT 250 with Ac drive panel &Touch screen panel
Screw Diameter: 65mm
Screw Speed: 5-54 rpm
L/D Ratio: 22:1
Main Motor (AC): 22.5 KW
Max. Output PVC: 230-250 kg/hr
Range (Single Die): 63-200
Range (Double Die): 20-50
2. Profile die with vaccum calibrator 60 x 35
3. Profile die with vaccum calibrator 90 x 45
4. Profile die with vaccum calibrator 100 x 65
5. Profile die with vaccum calibrator 125 x 65 (Double Rib)

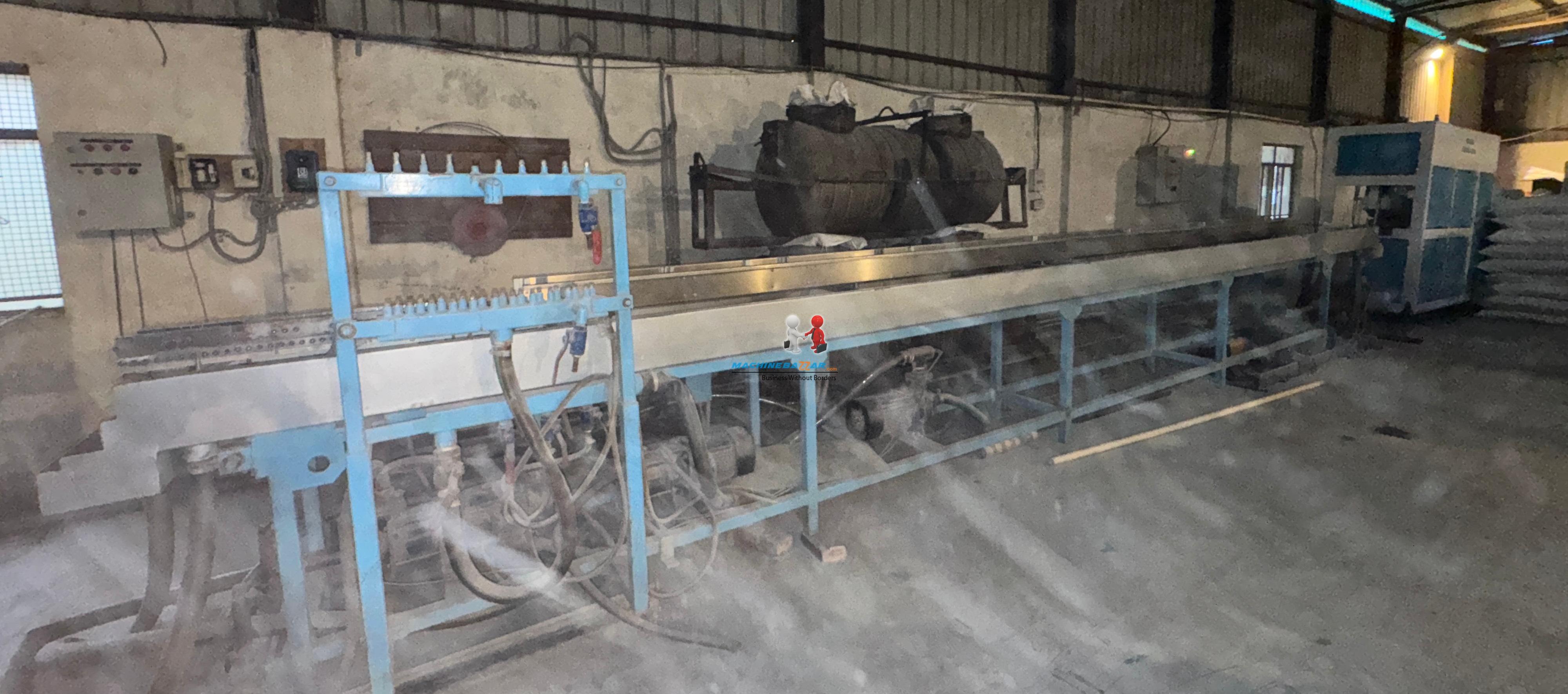

6. Spray tank suitable up to 200mm size x 6mtr

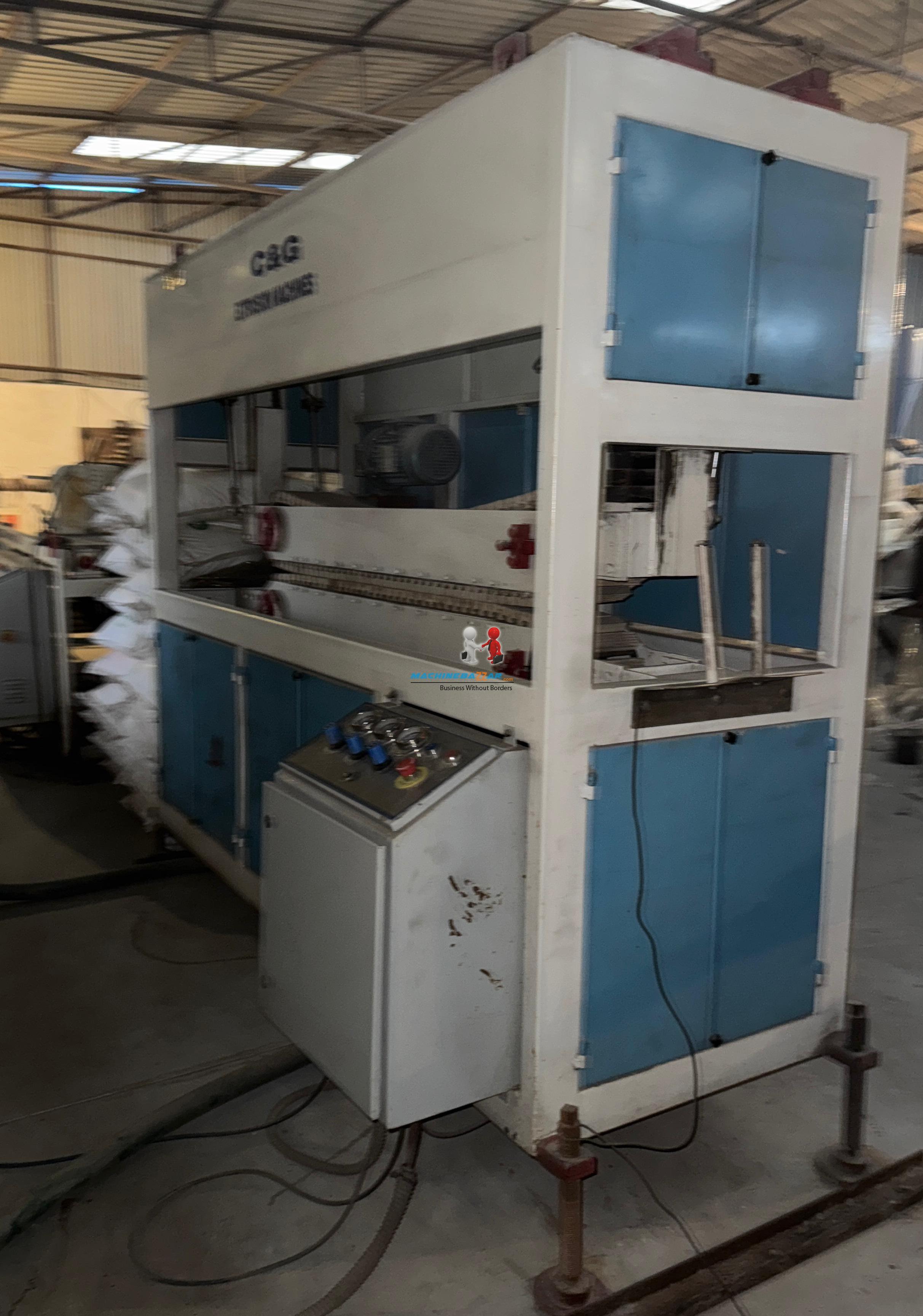

7. Traction unit TTU-200 PN
Range: 20-200 mm
No of Tracks: 2
Max line Speed: 10 Mtrs/Min
Contract length: 1200 mm

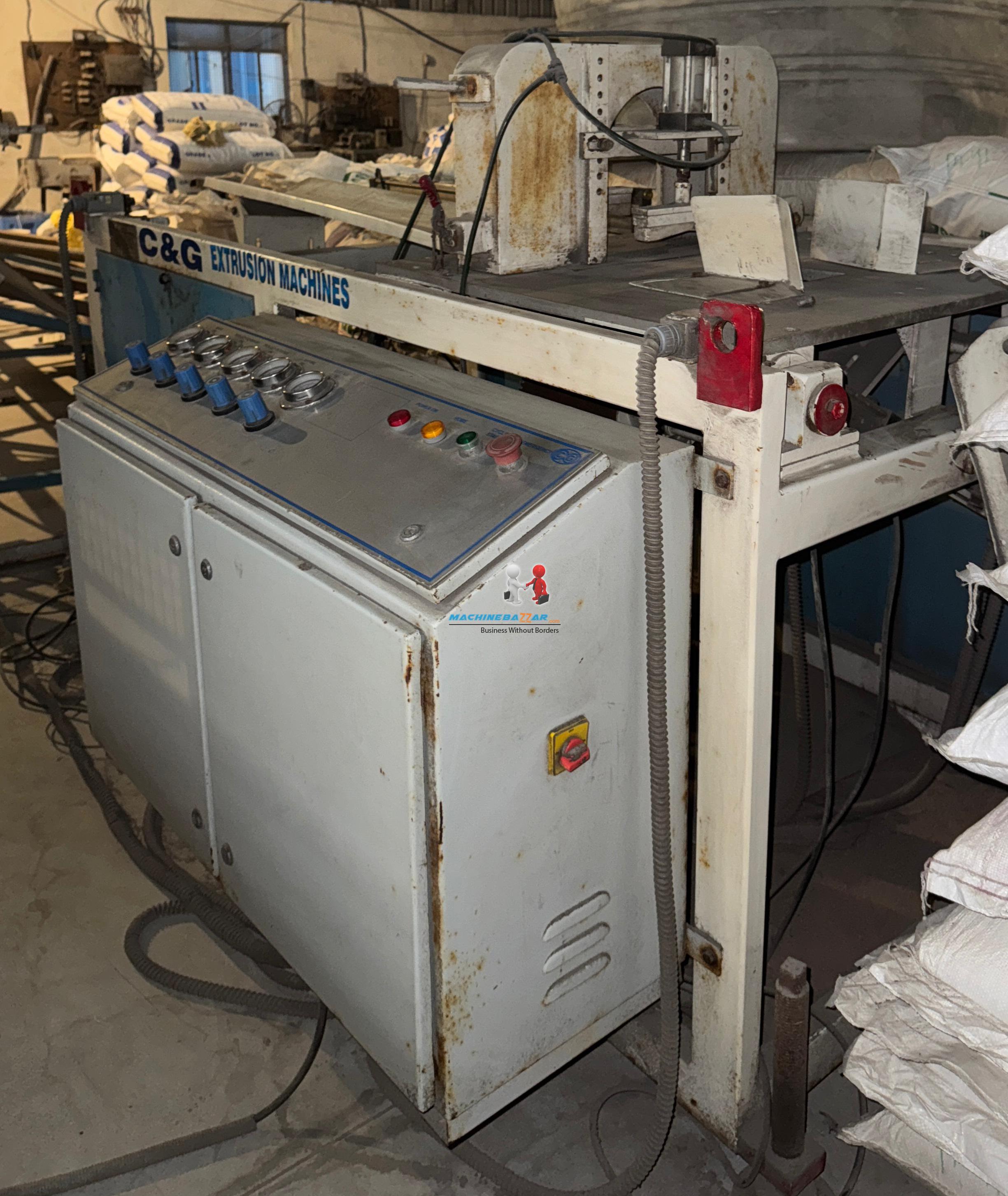

8. Saw cutter unit TCU 200 PN
Range: 50-200 mm
Cutting Speed: 10 mm
Clamping From: Top
9. Tilting Unit PTU 200 PN

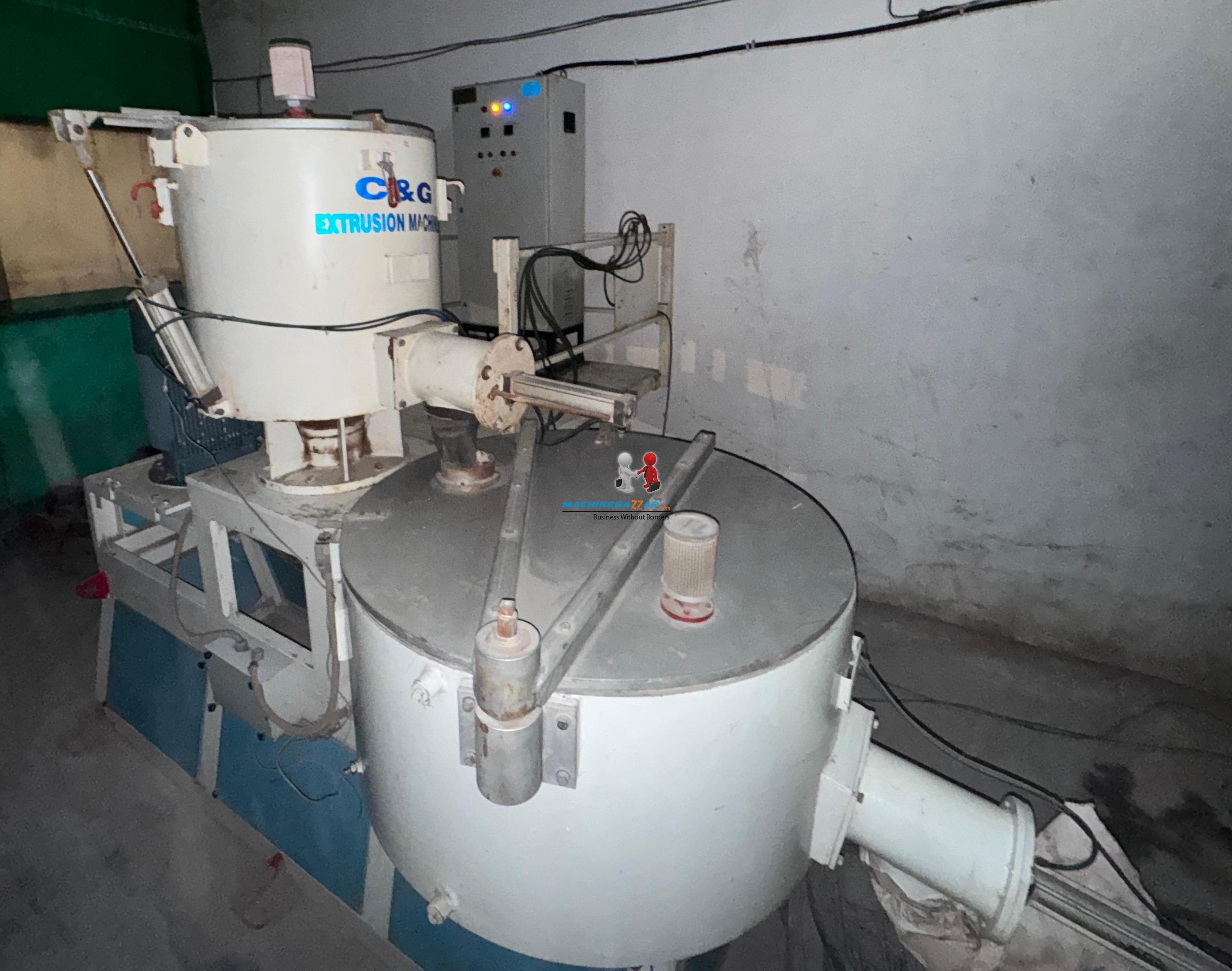

10. Hot /cooler mixer three batch with AC drive panel
Motor Heater Pot: 37.5 KW
Motor Cooler Pot: 5.5 KW
Charge Capacity: 90kg/ Batch
Production Capacity: 450 kg/hr
11. Hopper loaders 350kg/hr
12. Pulverizer 200kg/hr (hammer type)
13. UPS 100 KVA with 30 batteries (3 Month Old)
