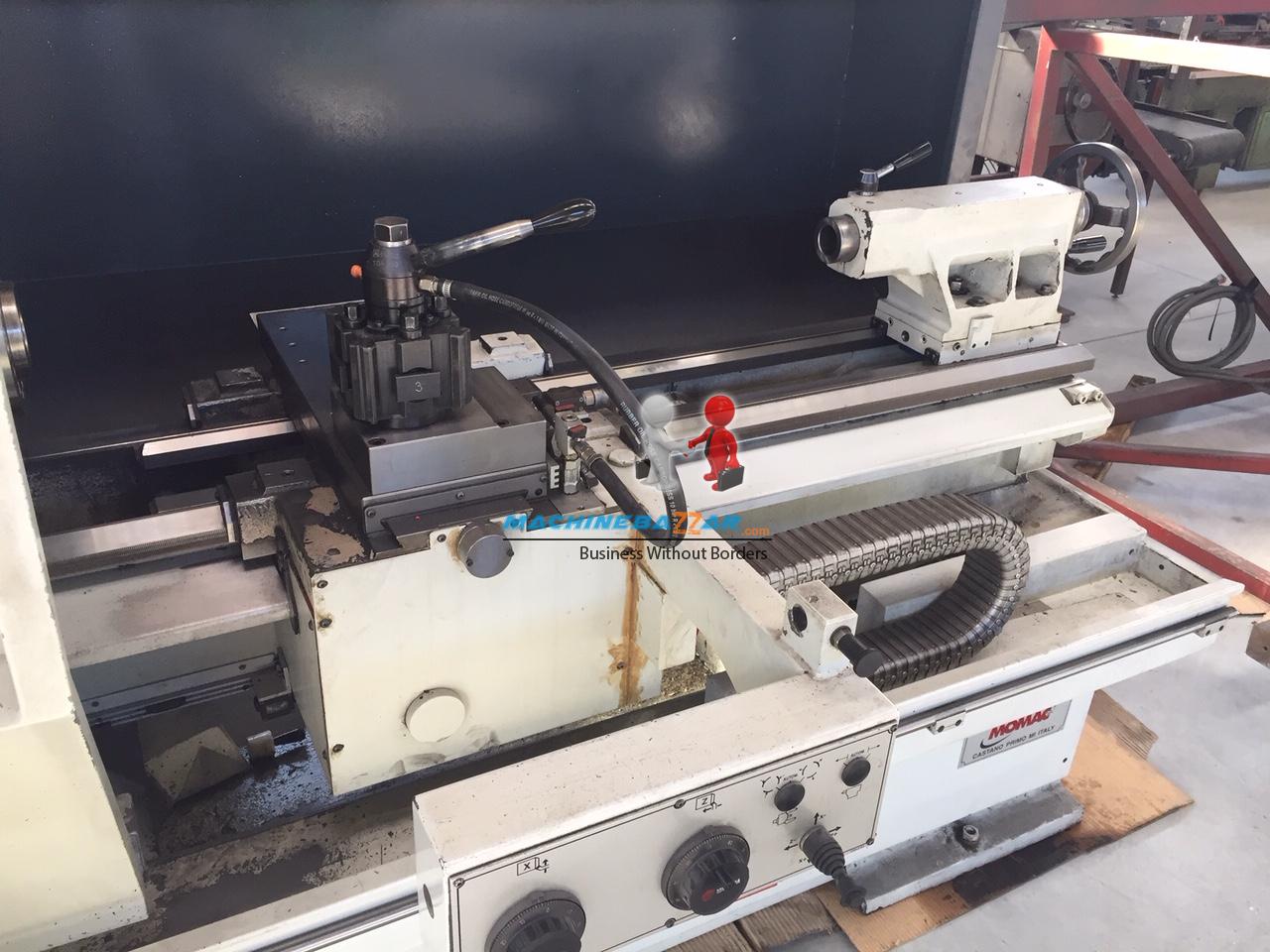

400 X 1500 Momac CNC Lathe machine

View Seller Detail

MSZ-3841

Price: USD 27,000.00
Colour Grey
Condition GOOD & RUNNING
Country of Mfg ITALY
Location OUT OF INDIA
Make Momac
Model TA20
Weight 3 tons
Chuck size 400 mm
Max length of product 1500 mm
Sedal size 370
Spindle dia 210 mm
Type ( All gear or manual) TA20
Quantity 1

Specifications:

machine is in running and good condition

One Lathe Momac model TA20

Height of the centers 200mm

Distance between centers 1000-1500mm

Max swing dia. over bed 400mm

Max swing over carriage 370mm

Max swing dia. over slide 210mm

Bench width 300mm

Bearings external/internal dia. 125/90mm

Spindle bore 65mm

Spindle nose mounting ASA B 5.9 - A2/6"

Spindle taper CM 5

Range of spindle speeds 0-3000 RPM

Spindle speed range 1

Z, X axis travel 0-7000 mm/min

Z, X axis rapid moving speed 10 m/min

Steerer stroke manual 220mm

Steerer diameter 68mm

Steerer morse taper 5

Main motor 12Kw

Pump motor 0.57Kw

Total installed power 15Kw

Dimensions 2800x3300x1850mm

Year of manufacture 2011

Weight 2.100kg
