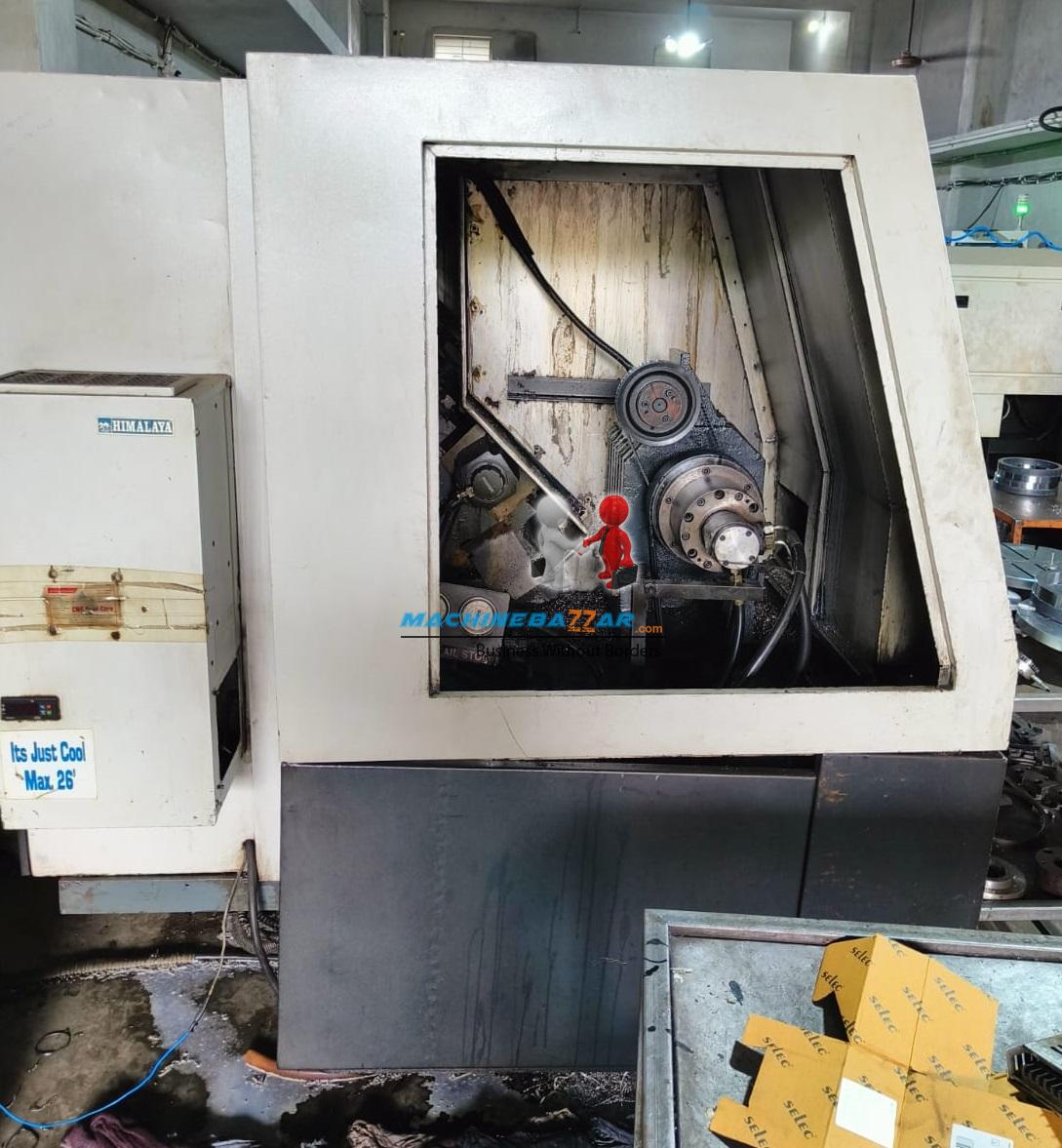

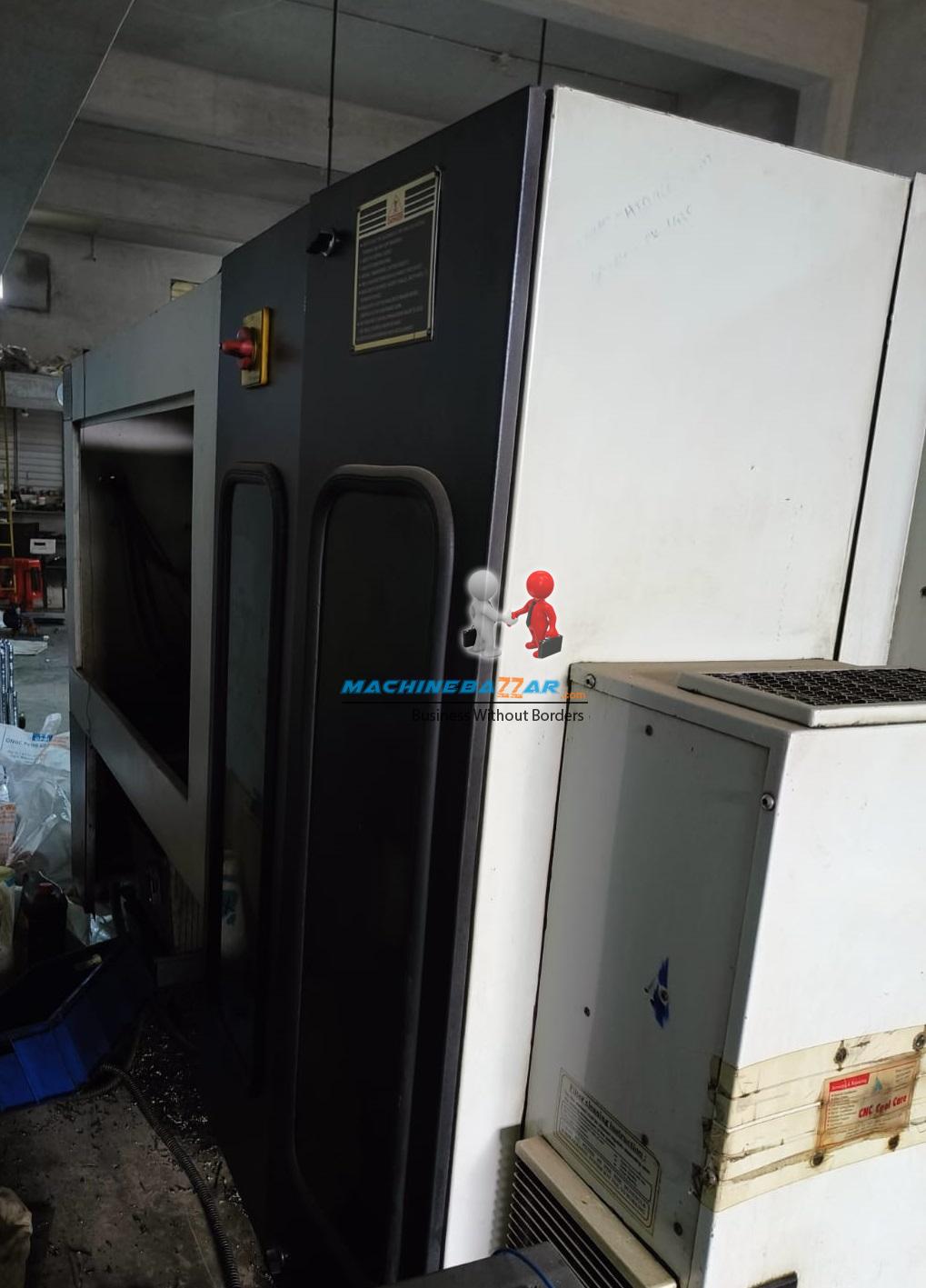

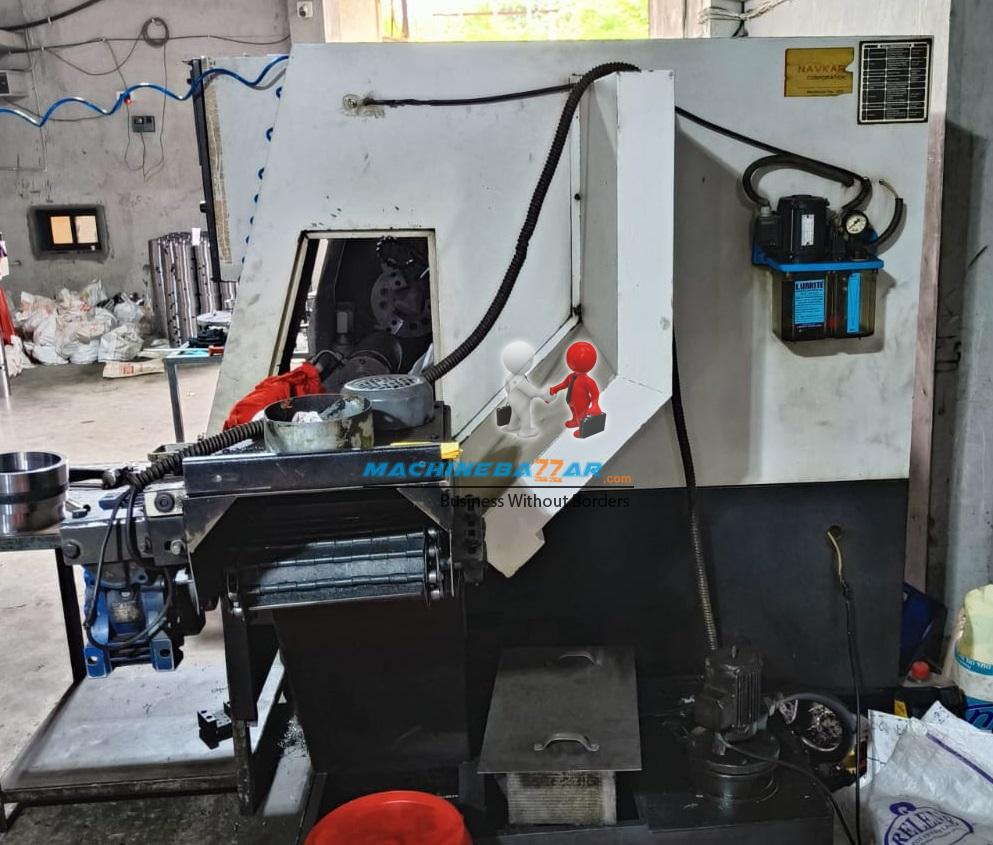

200 X 500 Mahavir CNC Turning Center

Sold Machines

MSZ-3529

Price: INR 700,000.00

Colour	White-Gray
Condition	POOR
Country of Mfg	India
Location	India
Make	MAHAVIR
Model	MX 200 S
speed of machine	1000-3500 RPM
Type	CNC TURNING
Weight	3900 KG
With tool kit	NO
Year of Mfg	2017
Chuck dia	200 mm
Max length of product	500 mm
Spindle dia	300 mm

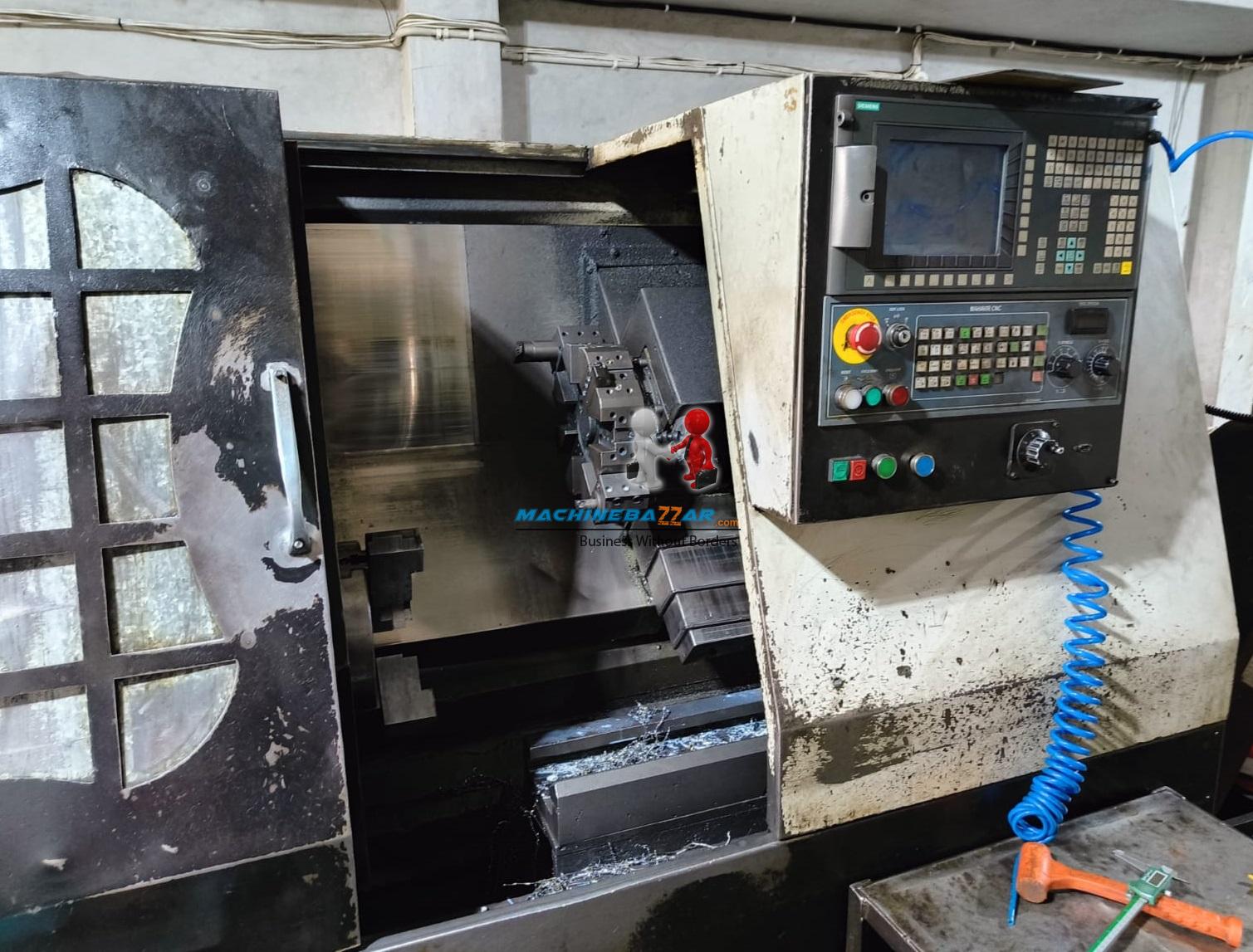

System {Operating}	SIEMENS
Quantity	1

Specifications:

Brand Mahavir
Quill Diameter 80 mm
Quill Stroke 100 mm
Repeatability 0.003 mm
P ositioning Accuracy 0.010 mm
Machine dimension 2500X1610X1570 inch ( LXBXH )
Max Tur Dia 300 mm
Max Tur Length 500 mm
Z Axis 32x10 p mm
Motor Torque Z Axis 7 nm
Rapid Feed X and Z Axis 24 m/min
Longitudinal Z Axis Travel 550 mm
Cross X Axis Travel 175 mm
Weight 3900 kg
Max Borring bar Capacity 40 mm
Spindle Bore 52/63 mm
Spindle Nose A2-6
Continuous Rating 9 kW /11 kW
Spindle Motor 9 kW /11 kW
Swing Over Bed 450 mm
Max Bar Capacity 42/55 mm

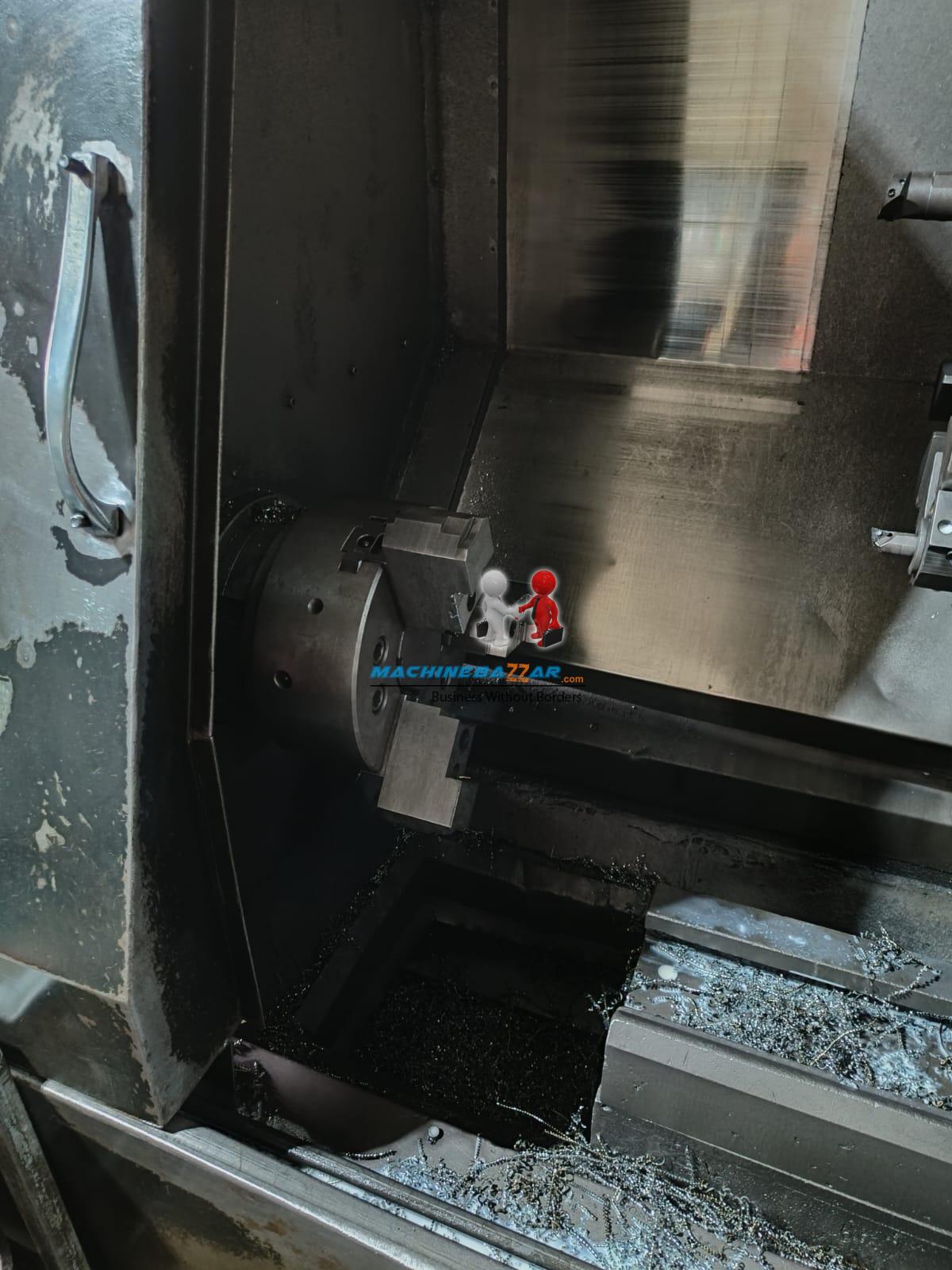

Chuck Size 200 mm

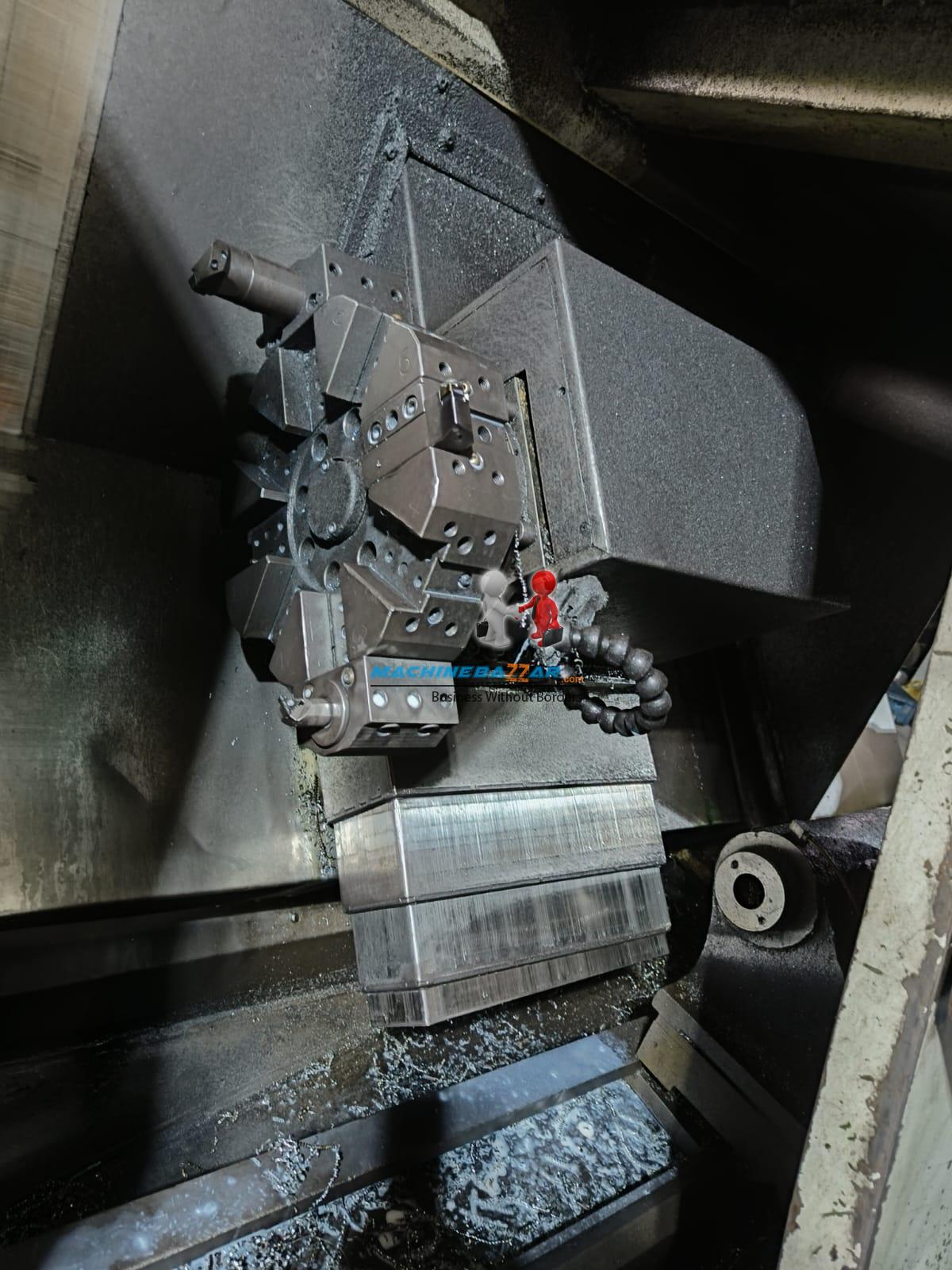

No Of Station 8
Std Tur Dia 200 mm
Full Power Speed Range 1000-3500 RPM
Speed Range 50-3000 RPM
Tool Size 25x25 mm
