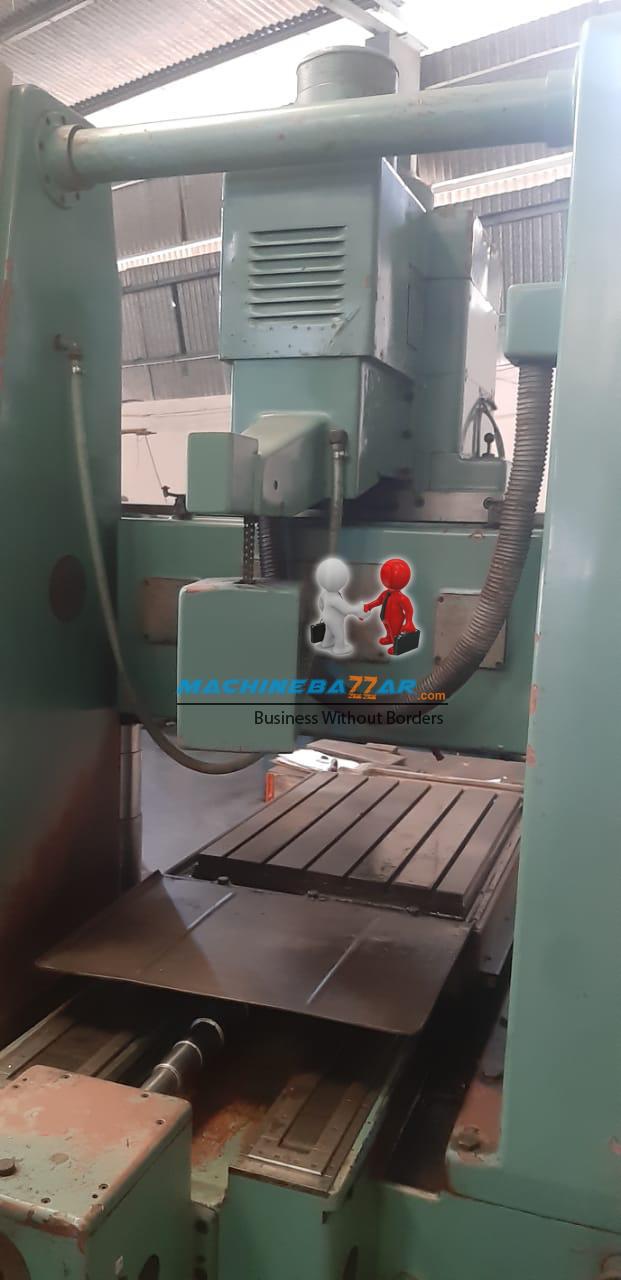

630 X 900 MAS WKV Horizontal boring machine

View Seller Detail

MSZ-3525

Price: INR 650,000.00

Location	India
Make	MAS WKV
Size 1	630 mm
size 2	900 mm
Quantity	1

Specifications:

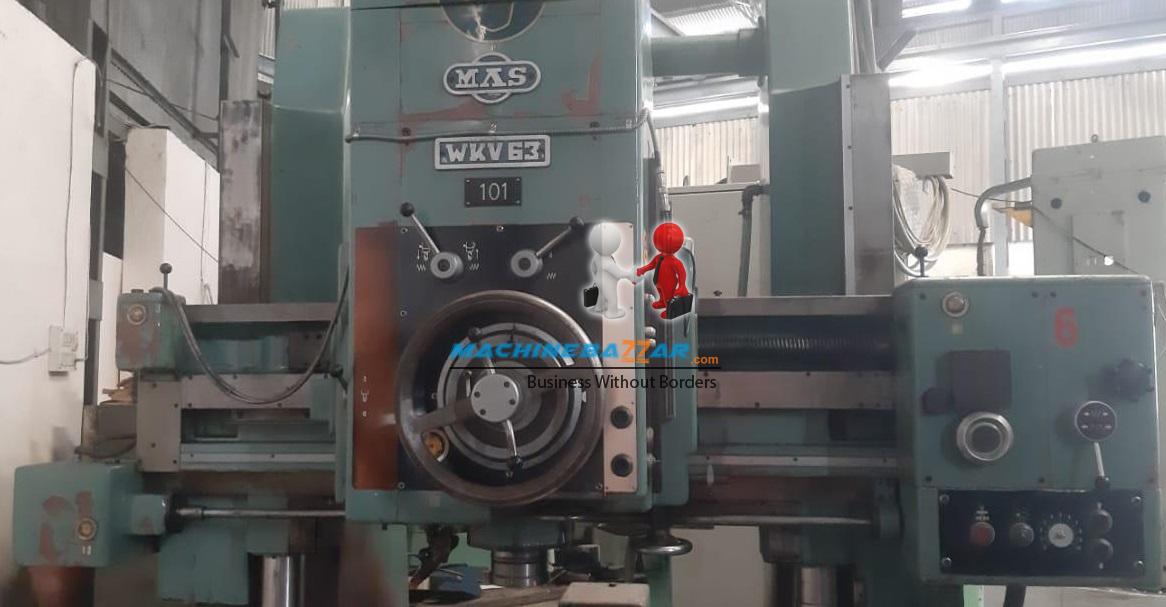

MAS WKV 63 JIG BORING
EXCELLENT CONDITION

Technical Data :

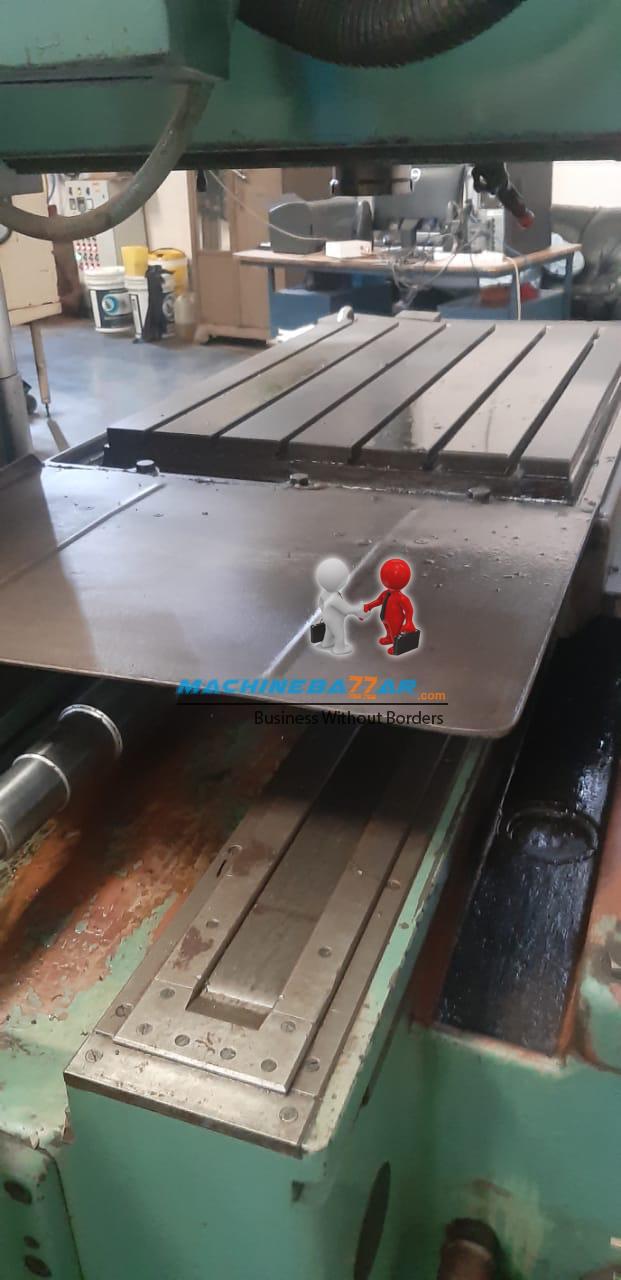

Table working area: 630900 mm
Table longitudinal travel: 850 mm
Cross rail vertical travel: 550 mm
Distance of spindle from table: 200750 mm
Horizontal travel of spindle on cross rail: 600 mm
Spindle quill diameter: 110 mm
Quill travel: 220 mm
Spindle taper: ISA 40
Spindle speed: 22,42000 rpm in 14 steps
Spindle slow speed: 0,870 rpm
Spindle shift: 0,0250,63 mm.rev-1 in 8 steps

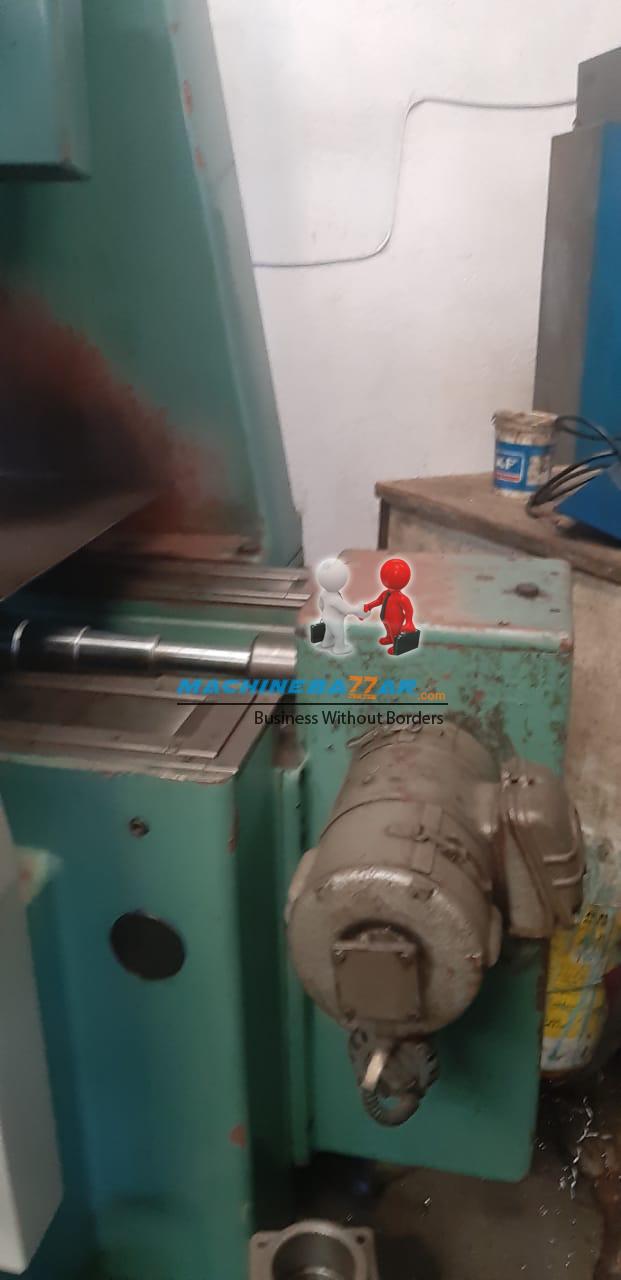

Headstock motor: 2,2 kW
Speed of headstock travel on cross rail: 15150 mm.min-1 (stepless)
Headstock rapid feed: 1600 mm.min-1
Table feed: 23230 mm.min-1 (stepless)
Table rapid feed: 2300 mm.min-1
Dimensions: length x width x height: 279322202445 mm
Max. height of the machine with cross rail at top position: 2295 mm
