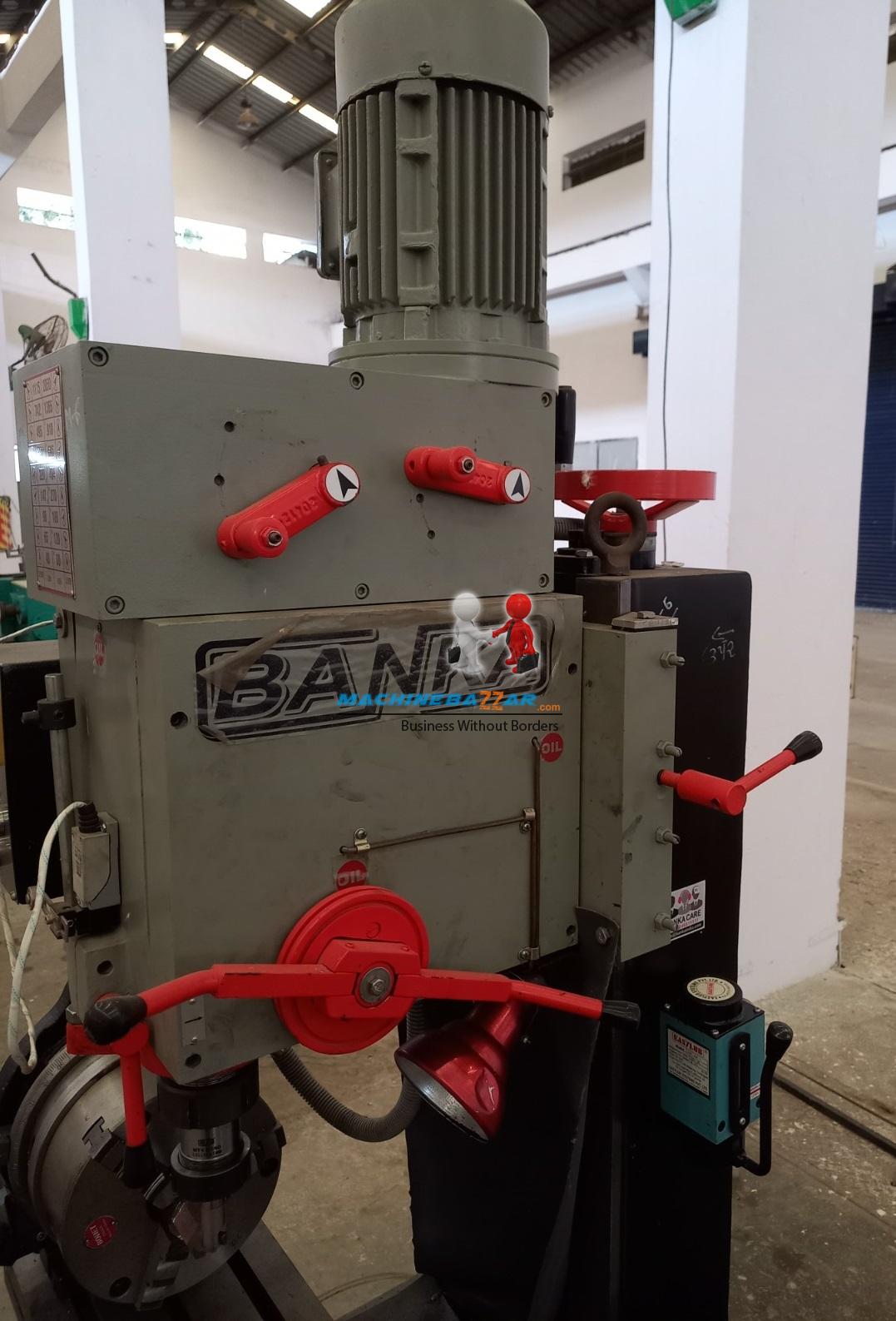

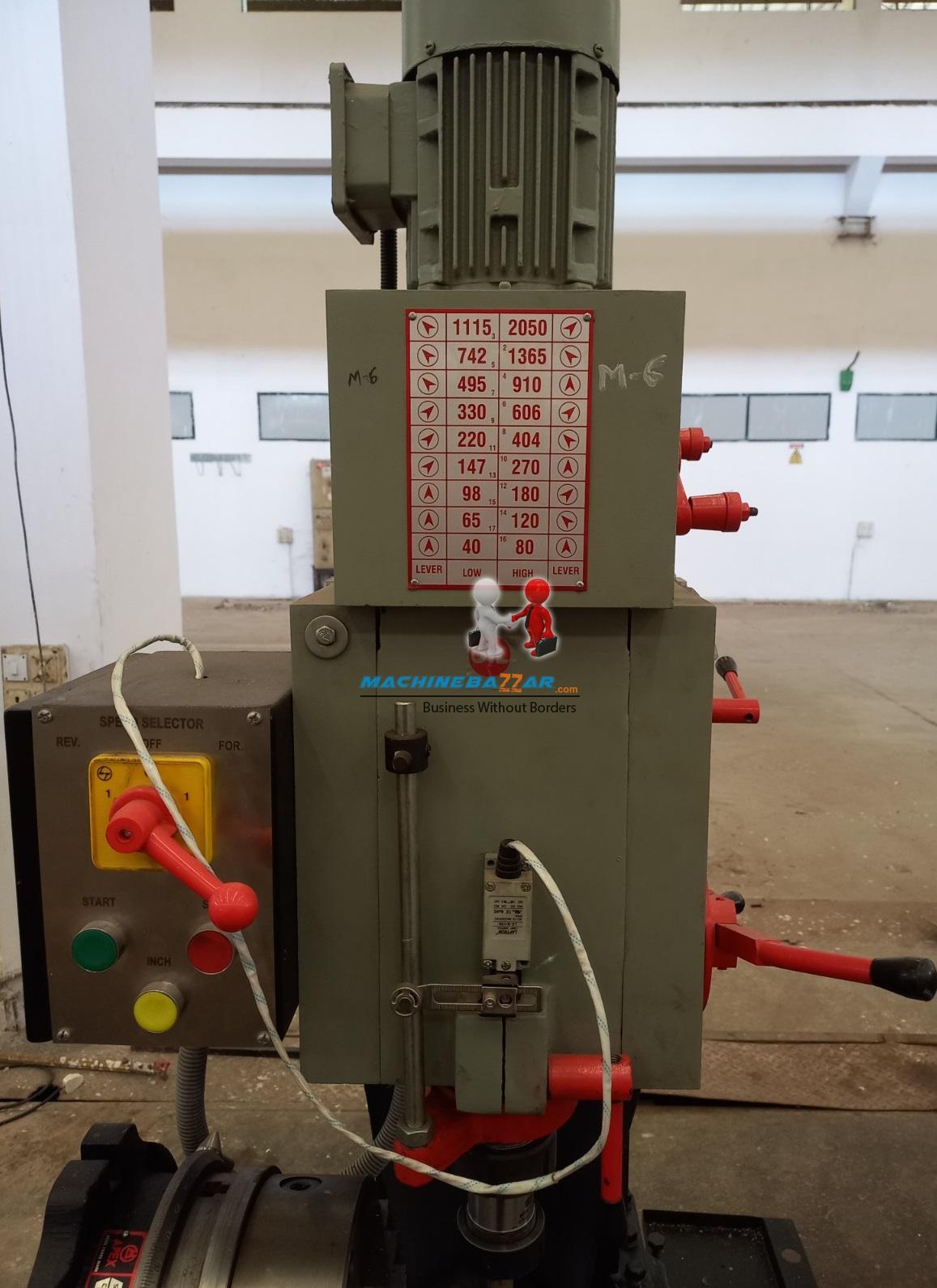

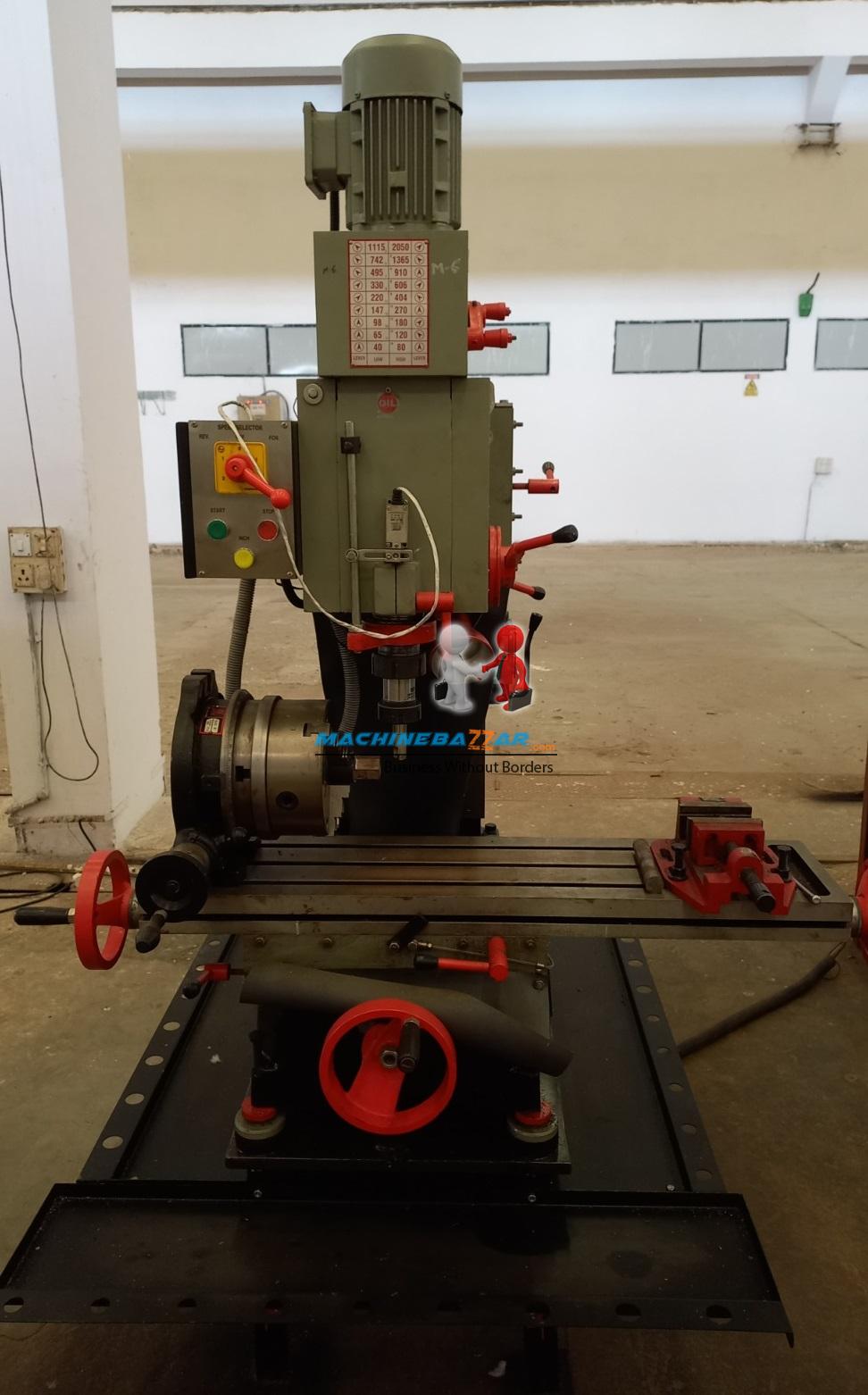

250 X 1000 All geared drilling cum milling machine

View Seller Detail

MSZ-3277

Price: INR 150,000.00

Feed size of cutting	0.08-0.02-0.04
Types of milling machine { in number }	Vertical milling
Colour	Black & Grey
Condition	used
Country of Mfg	2023
HP	2
Location	India
Make	Banka
Model	DCM-40
speed of machine	22-2000
Type	Manual vertical milling machine
Weight	550 kg
With tool kit	yes
Year of Mfg	2023
Table size ( small size ) X	250 mm
Table size (large size ) Y	1000 mm
Quantity	1

Specifications:

Table size: 250 x 1000 mm
Drilling & tapping capacity: 38 mm
Spindle nose: MT-4
Spindle travel (Drilling depth): 170 mm
Spindle speed: 22-1020 RPM
No. of power feeds: 3
No. of spindle speeds: 18
Spindle to base distance: 550 mm
Distance from column to spindle: 300 mm
Cross slide travel: 600 x 230 mm
Spindle sleeve diameter: 75 mm
Motor: 2HP
Weight: 550 kg
