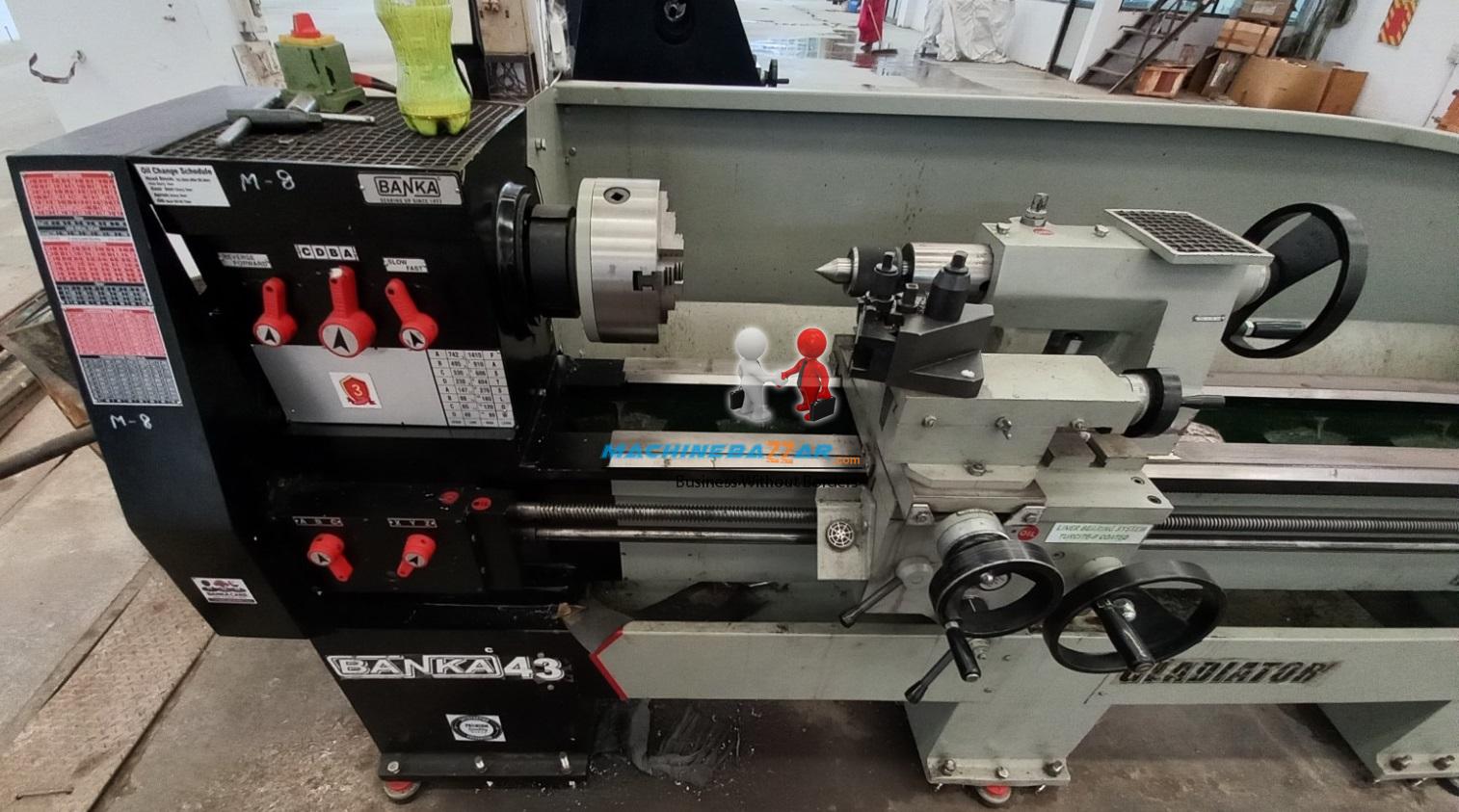

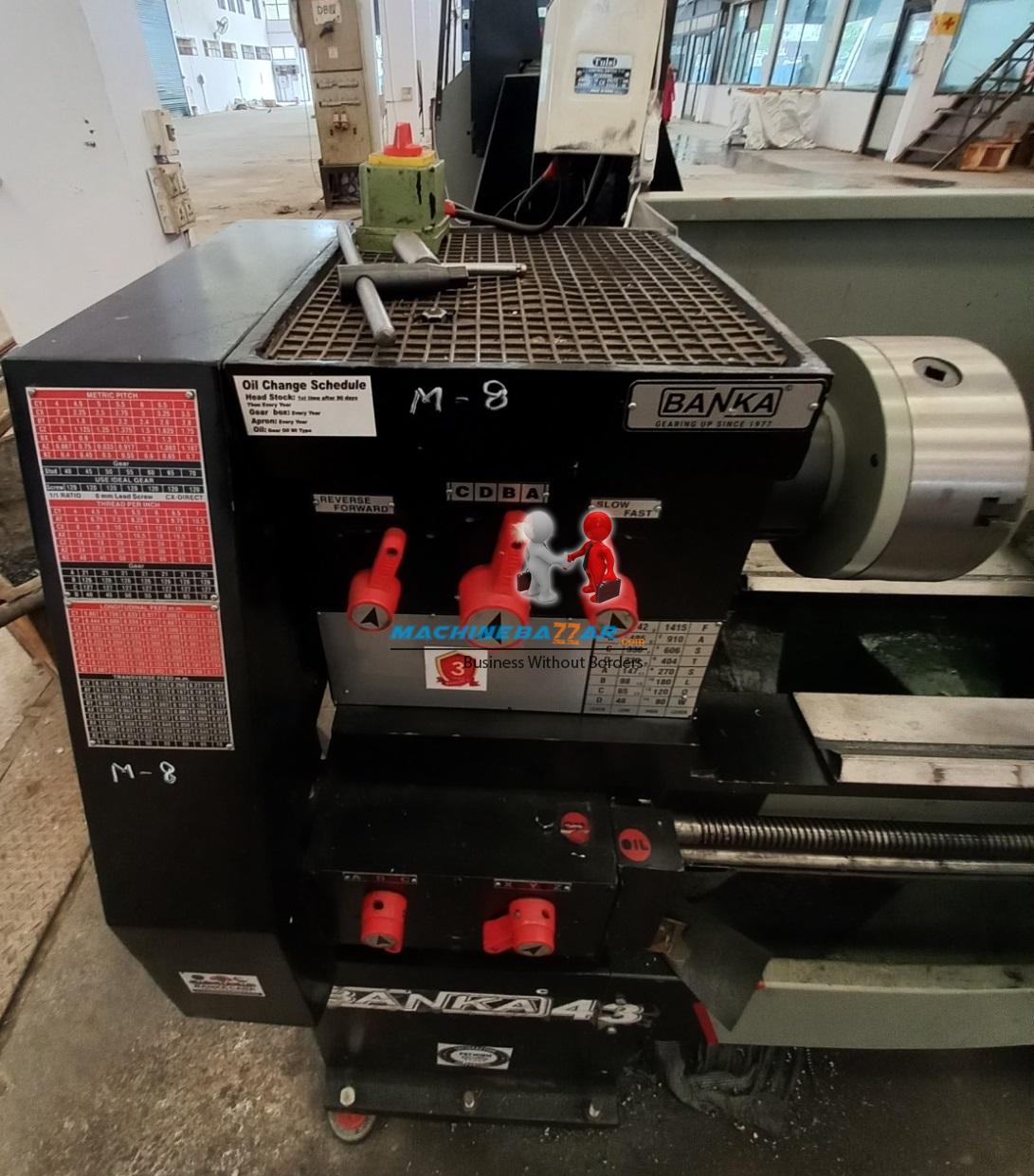

8 feet medium duty all geared lathe machine

View Seller Detail

MSZ-3276

Price: INR 350,000.00

Colour	Grey
Condition	Used
Country of Mfg	India
HP	3
Location	India
Make	Banka
Model	Gladiator 1500
speed of machine	22-1020
Type	All gear medium duty lathe
Weight	1400
With tool kit	yes
Year of Mfg	2023
Max length of product	1500 mm
Spindle dia	52 mm
Type ( All gear or manual)	All gear
Quantity	1

Specifications:

Bed Length: 8 Feet
Admit between center: 1500 mm
Cross slide: 240 mm
Width of bed: 305 mm
Swing over slide: 270 mm
Swing over bed: 430 mm
Height of center: 215 mm
Quill dia./ Travel: 75/150 mm
Spindle bore: 52 mm
Spindle nose: LO type
Spindle speed: 16 H-L
RPM: 48-1415
Top slide travel: 130 mm
Tail stock sleeve: MT-4
Main motor: 3 HP
Lead screw: 6 mm
Thread per inch: 45/70-4 TPI
Metric thread: 40/0.4-7 mm
Feed Transverse: 60/0.02-0.25
Feed Longitudinal: 60/0.08-1
Tool shank section: 20 x 20 mm
Weight: 1400 kg (approx.)
