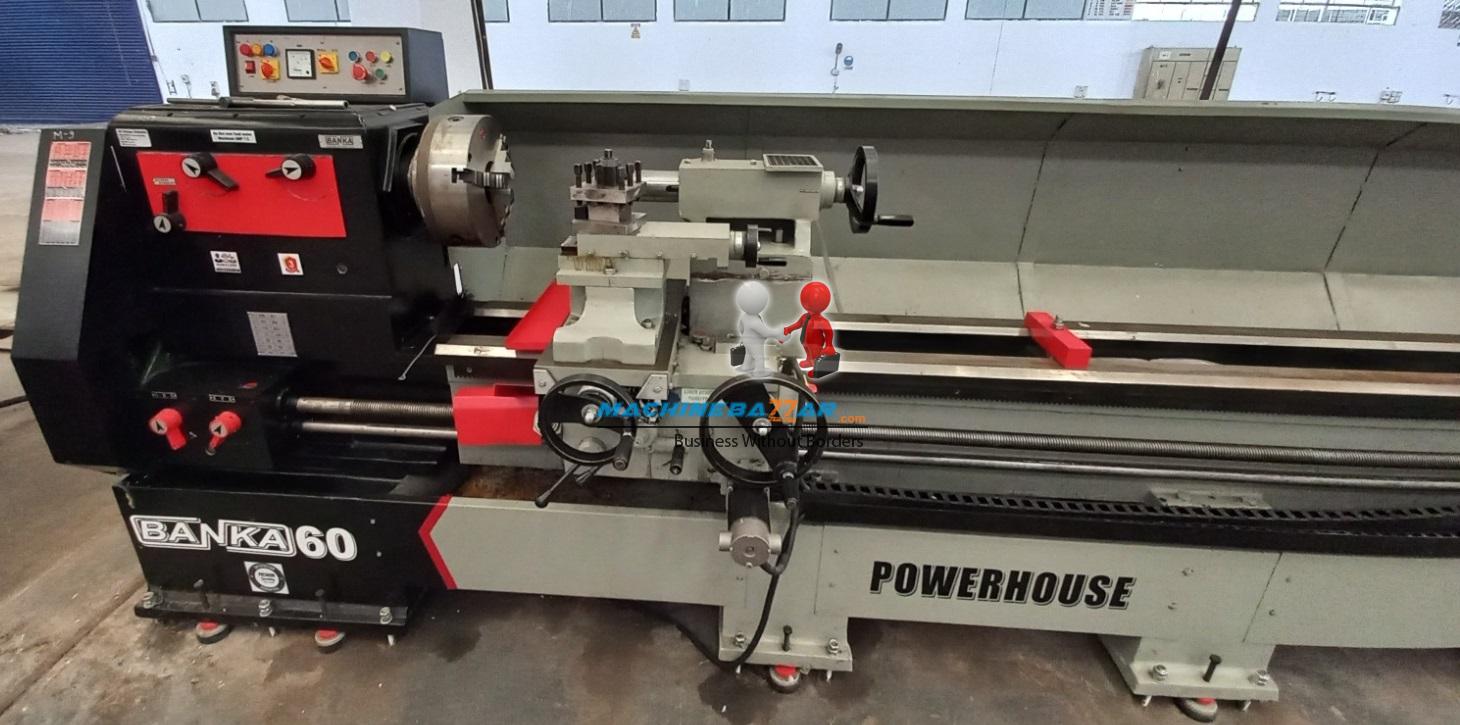

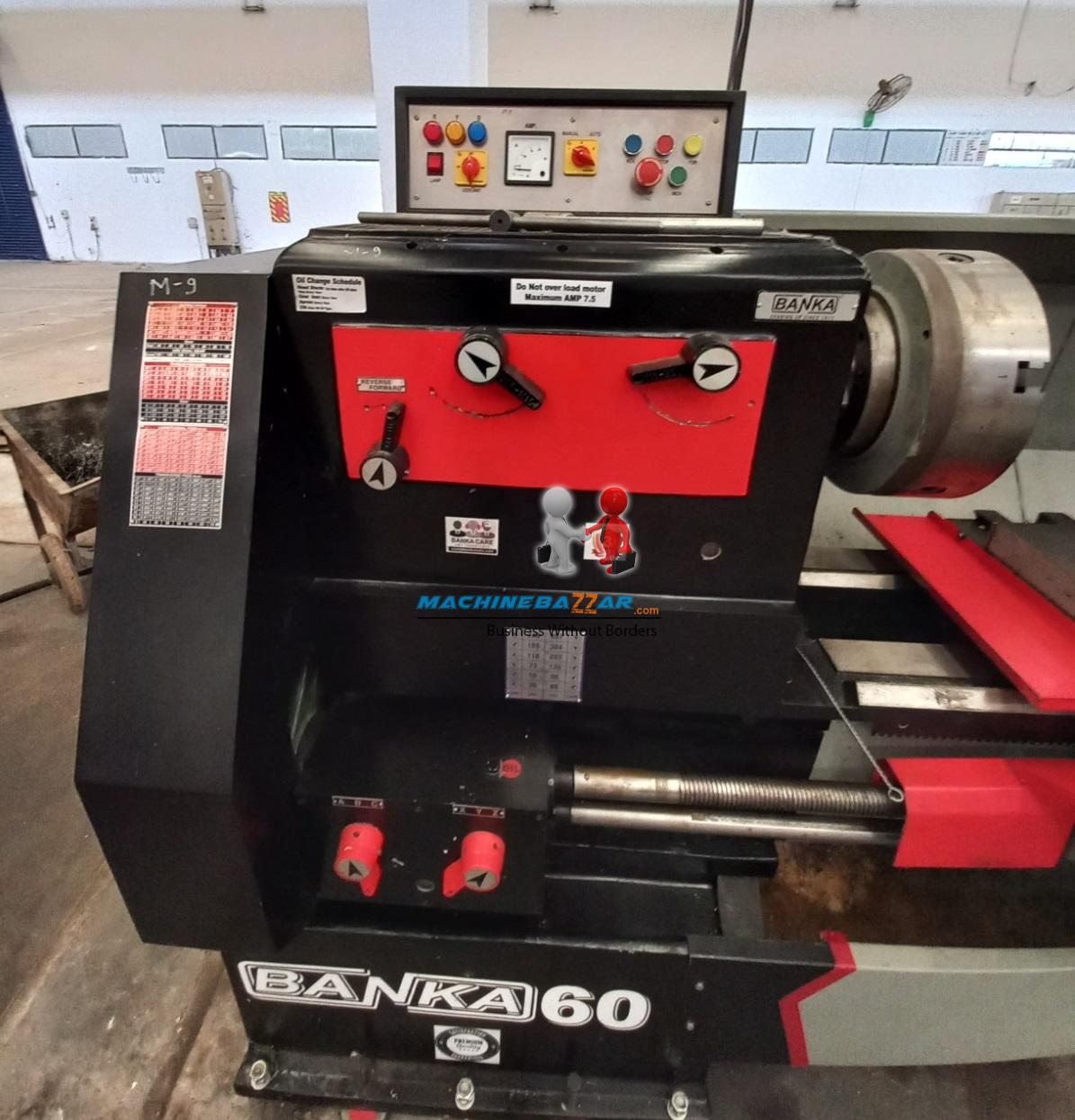

16 feet heavy duty all geared lathe machine

View Seller Detail

MSZ-3275

Price: INR 600,000.00

Colour	Grey
Condition	Used
Country of Mfg	India
HP	5
Location	India
Make	Banka
Model	Powerhouse 3500
speed of machine	30-1050
Type	All gear heavy duty lathe
Weight	2900
With tool kit	yes
Year of Mfg	2023
Max length of product	3500 mm
Spindle dia	80 mm
Type ( All gear or manual)	All gear
Quantity	1

Specifications:

Bed Length: 16 Feet
Admit between center: 3500 mm
Cross slide: 325 mm
Width of bed: 375 mm
Swing over slide: 390 mm
Swing over bed: 600 mm
Height of center: 300 mm
Quill dia./ Travel: 75/150 mm
Spindle bore: 80 mm
Spindle nose: LO type
Spindle speed: 16 H-L
RPM: 30-1050
Top slide travel: 150 mm
Tail stock sleeve: MT-4
Main motor: 3.7 KW / 5 HP
Lead screw: 6 mm
Thread per inch: 45/70-4 TPI
Metric thread: 40/0.4-7 mm
Feed Transverse: 60/0.02-0.25
Feed Longitudinal: 60/0.08-1
Tool shank section: 25 x 25 mm
Weight: 2900 kg (approx.)
