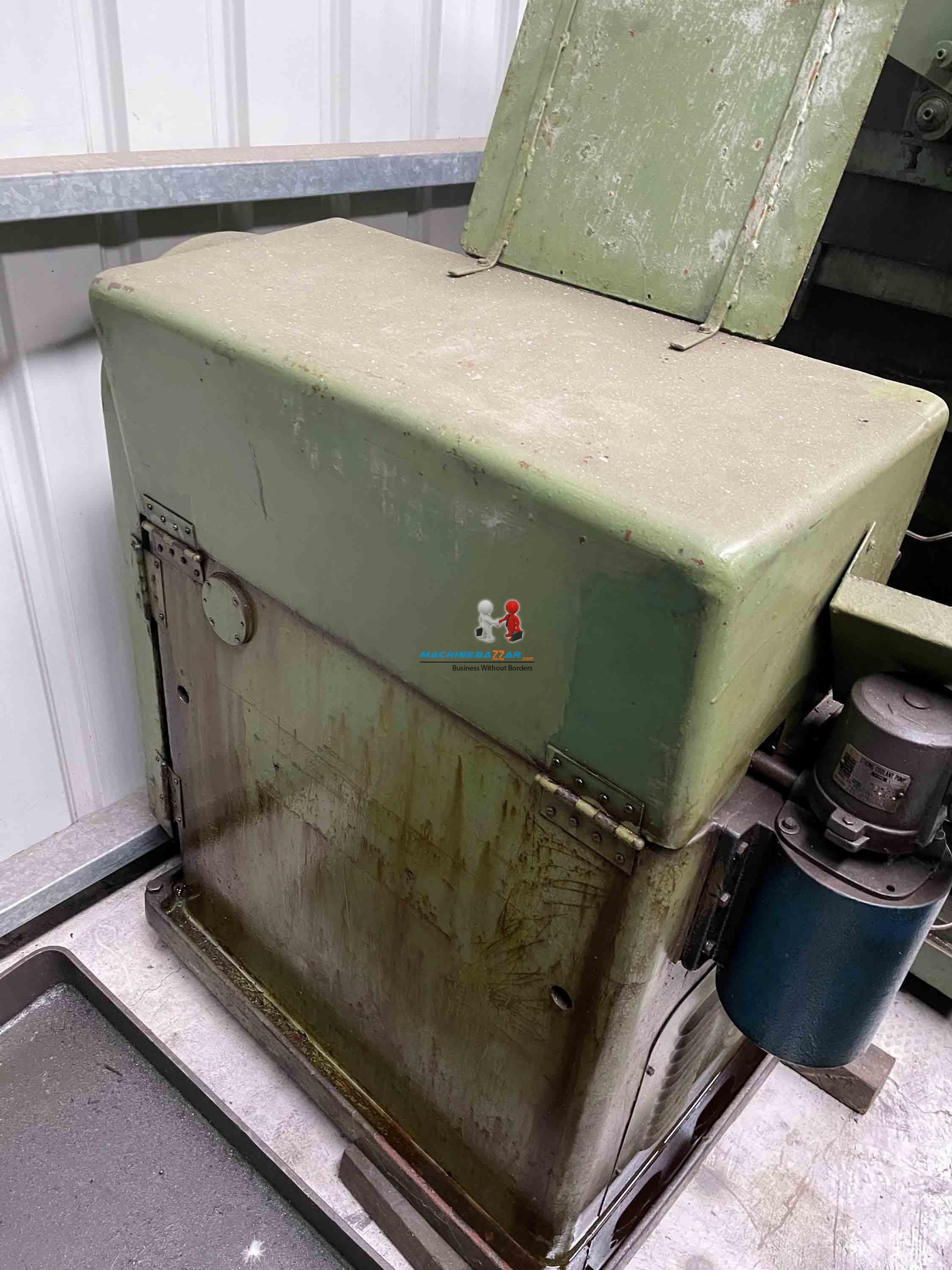

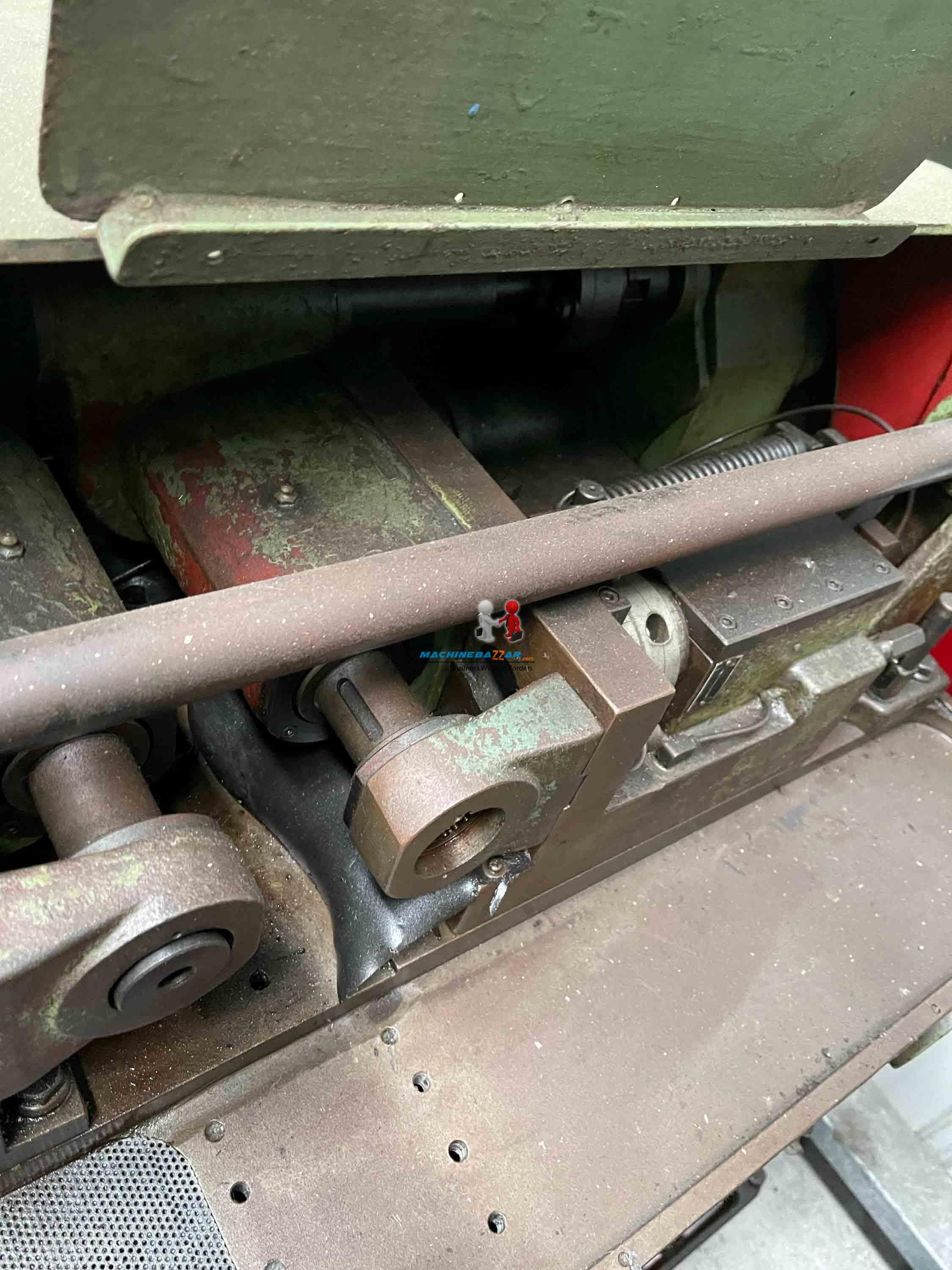

M22 x 48 I-Cheng 2 Die Cylindrical thread rolling machine

View Seller Detail

MSZ-2824

Price: USD 3,050.00

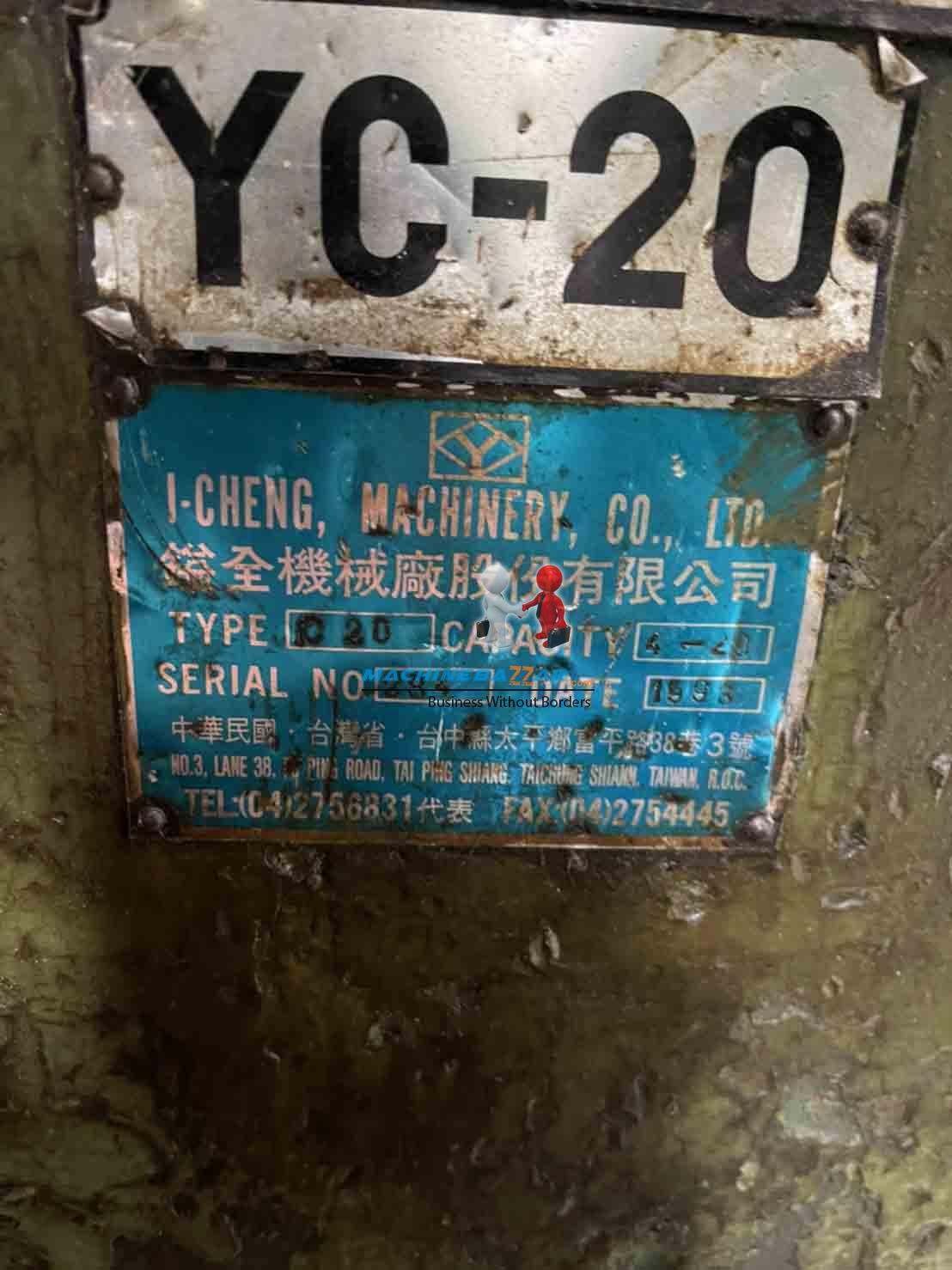

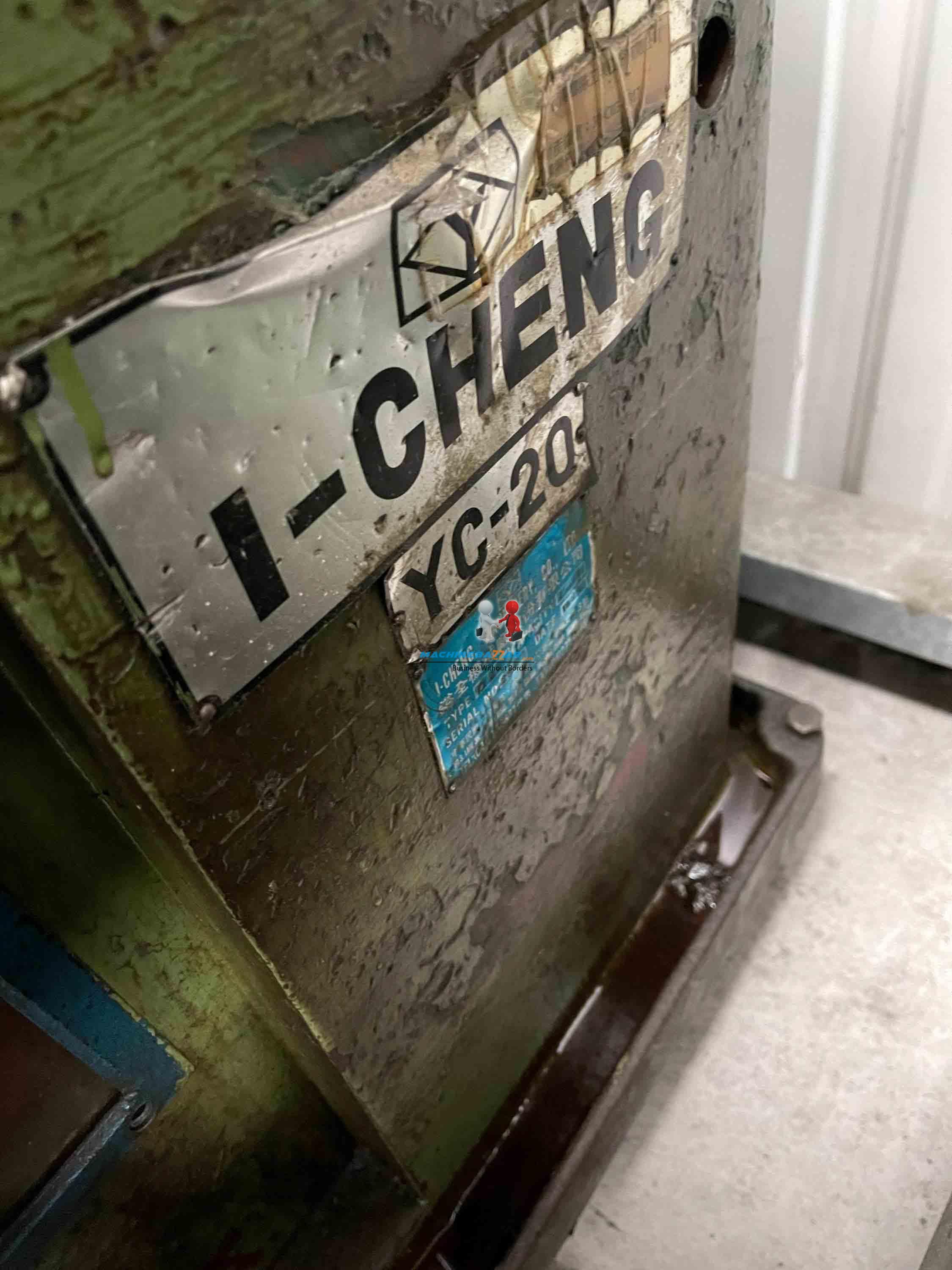

Make	I-Cheng
Model	YC-20
speed of machine	30 ppm
Max dia of screw / bolt	22 mm
Max Thread Leangth	48 mm
Quantity	1

Specifications:

Thread Diameter: 5-22 mm
Pitch: 0.75-2.5P
MAX. Thread Length: 48 mm
Rotary Die Speed: 40 rpm
MAX. Rotary Die DIA.: 120 mm
Bore Dia. of Rotary Dies: 40 mm
Rotary Dies Width: 50 mm
MAX. Centre Distance of Die-Spindle: 140 mm
MIN. Centre Distance of Die-Spindle: 100 mm
Output: 9-30
Height from table surface to Die Center: 118 mm
Motor 3 phase A.C.: 3 HP
Overall Dinesions: 1090x740x1070
Net Weight: 970 kg
Packing Size: 1245x850x1220
Packing Net Weight: 160 kg
Price including: Cleaning and Voltage Change
Price not including: Painting
