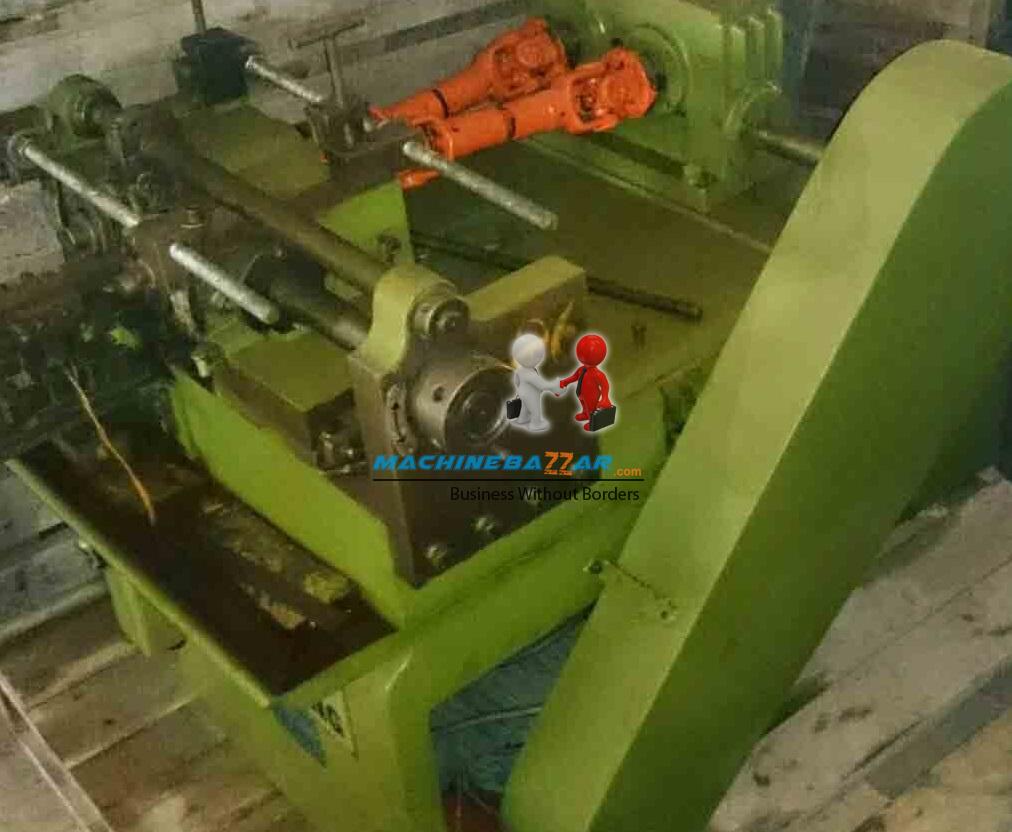

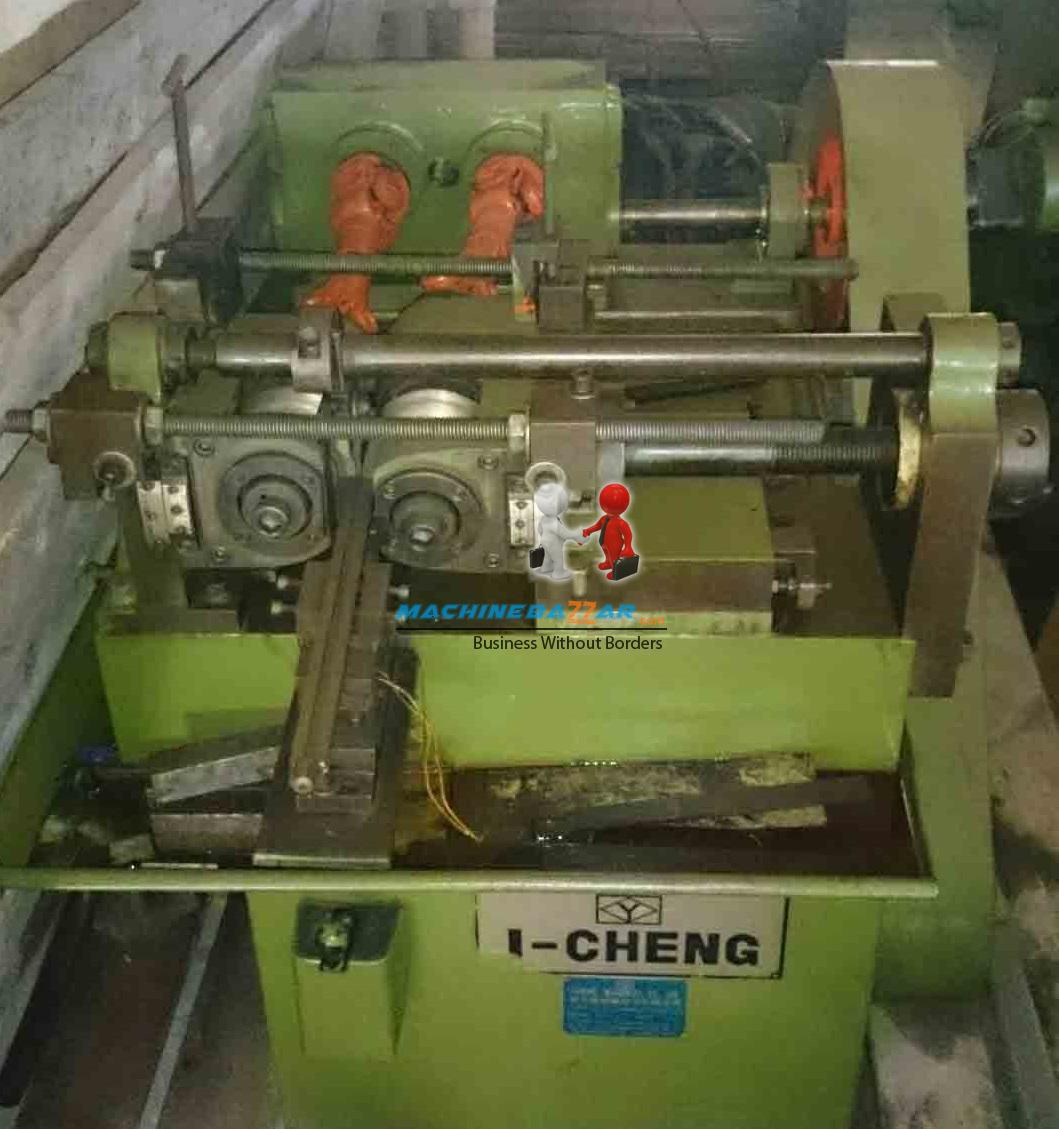

M16 I-Cheng 2 Die Cylindrical thread rolling machine

View Seller Detail

MSZ-2823

Price: USD 6,430.00

Make	I-Cheng
Model	IC-310
speed of machine	50 ppm
Max dia of screw / bolt	16 mm
Max Thread Leangth	1000 mm
Quantity	1

Specifications:

- Thread Diameter: M2-M16
- Pitch: 0.4~1.75 P
- Maximum length of thread: Through
- Rotary die speed: 54 rpm
- Maximum diameter or rotary dies: 100 mm
- Bore diameter of rotary dies: 50.5 mm
- Width of rotary dies: 30~40 mm
- Minimum center distance of die-spindled: 90 mm
- Maximum center distance of die-spindled: 120 mm
- Output (pcs/min): 30~50
- Height from table surface to die center: 105mm
- Motor: 3 phase, A.C. Hydraulic motor
- Dimensions (LMH): 1400 x 940 x 750 mm
- Net weight, approx: 500 kg
- Size of packing: 1575 x 1030 x 910 mm
