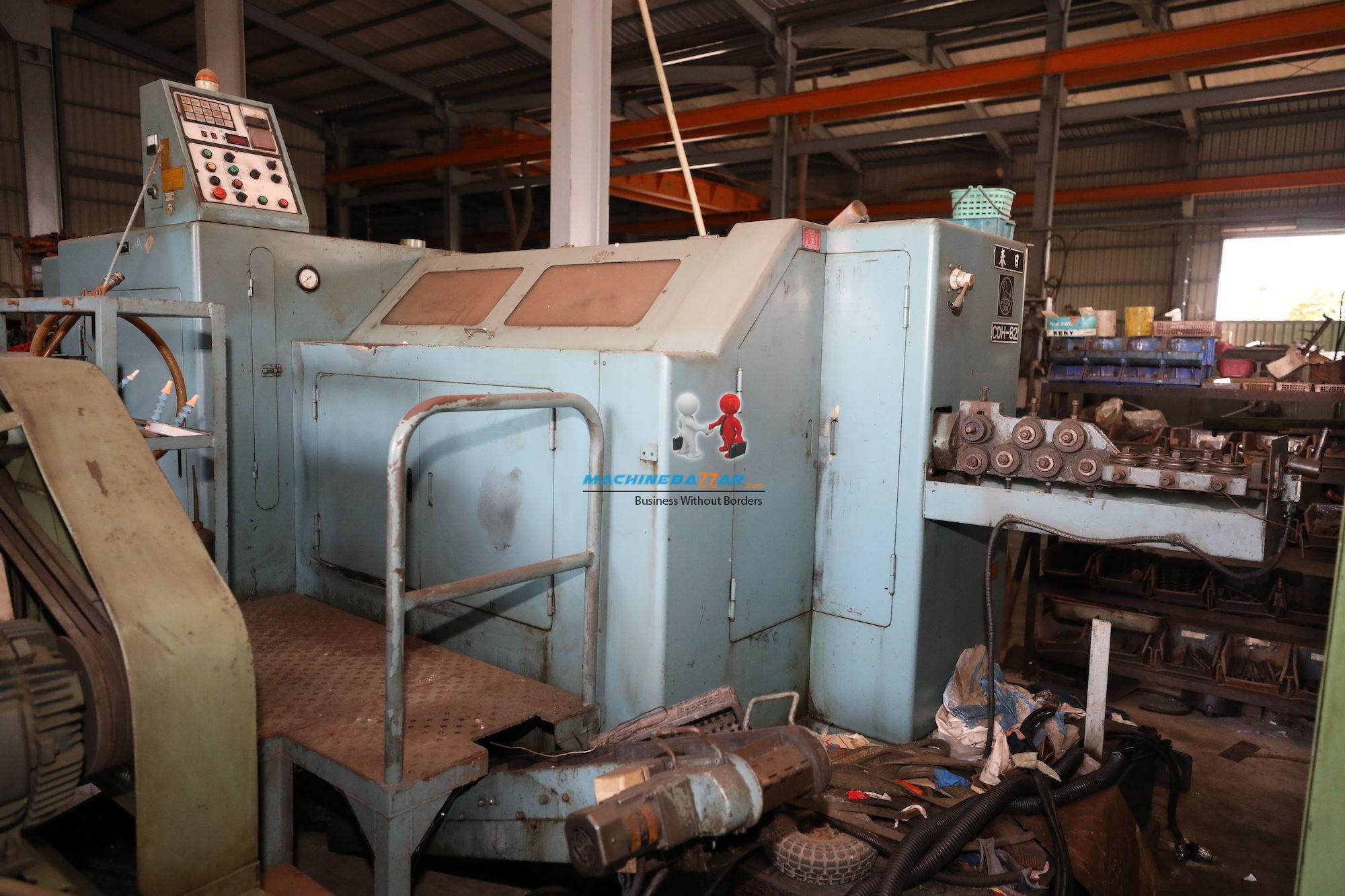

M8 X 105 Chun Zu 2D2B Cold header machine

View Seller Detail

MSZ-2784

Price: USD 41,350.00

Country of Mfg	China
Location	Out of India
Make	Chun Zu
Max Shank Length	105 mm
Model	CDH-82
speed of machine	240 ppm
Max cutting length	120 mm
Max wire cutting dia	8 mm
Max wire {shank} dia	8 mm
Quantity	1

Specifications:

Forging Station: 2 station
Forging Force: 50000 kgs
Max. Cut-Off DIA.: 8 mm
Max. Cut-Off Length: 105 mm
Max. Output: 240 pcs/min
P.K.O. Stroke: 12 mm
K.O. Stroke: 76 mm
Main Slider Stroke: 190 mm
Main Motor: 15 kW
Cut-Off Die DIA.: 53x56L
Main Die DIA.: 60x120L
Die Pitch: 80 mm
Punch Sizes: Activity 45x100L / Fixed 45x95L
Approx. Weight: 9500 kgs

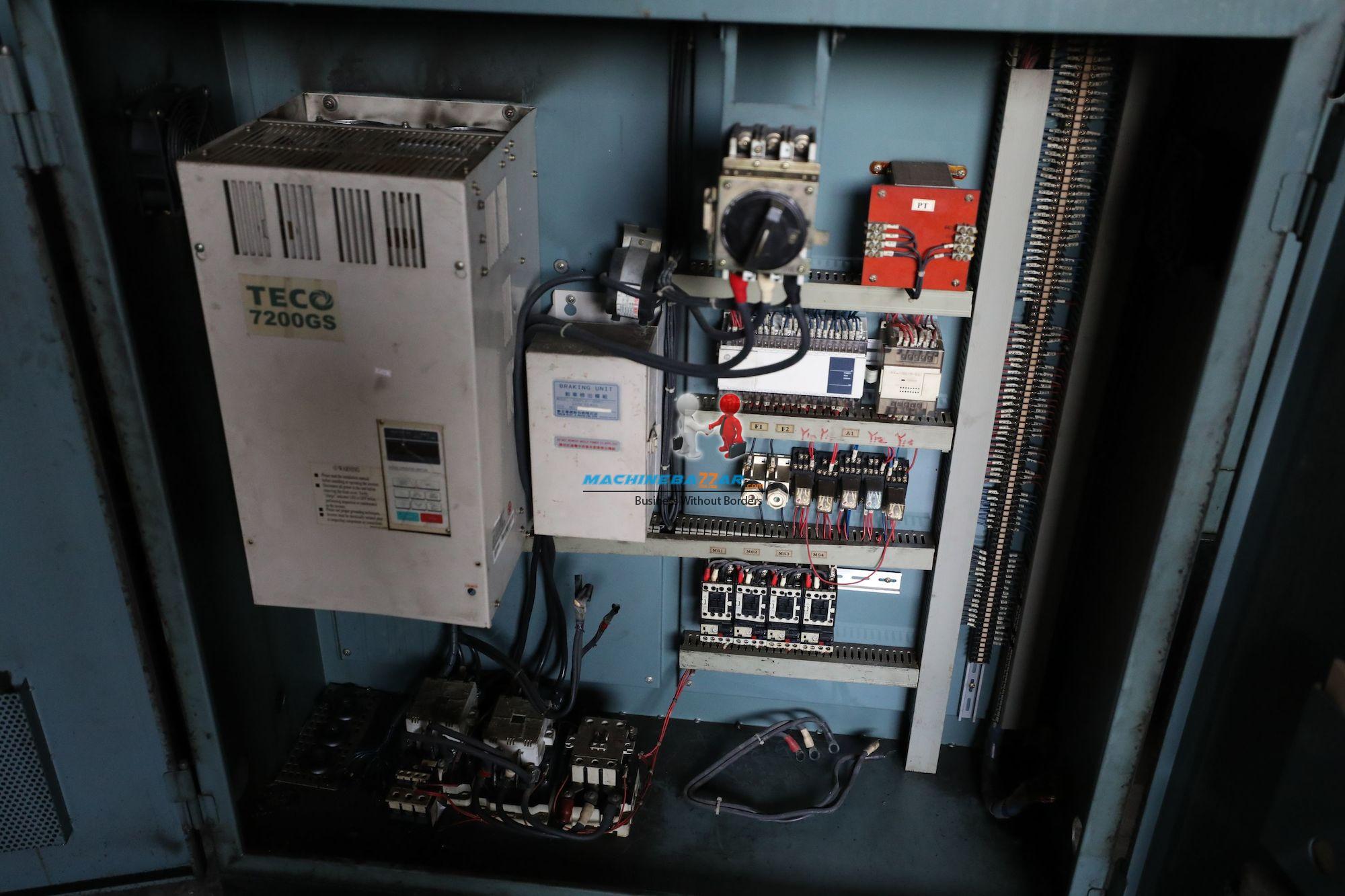

Including 1 set of inverter and 1 set of conveyor.
