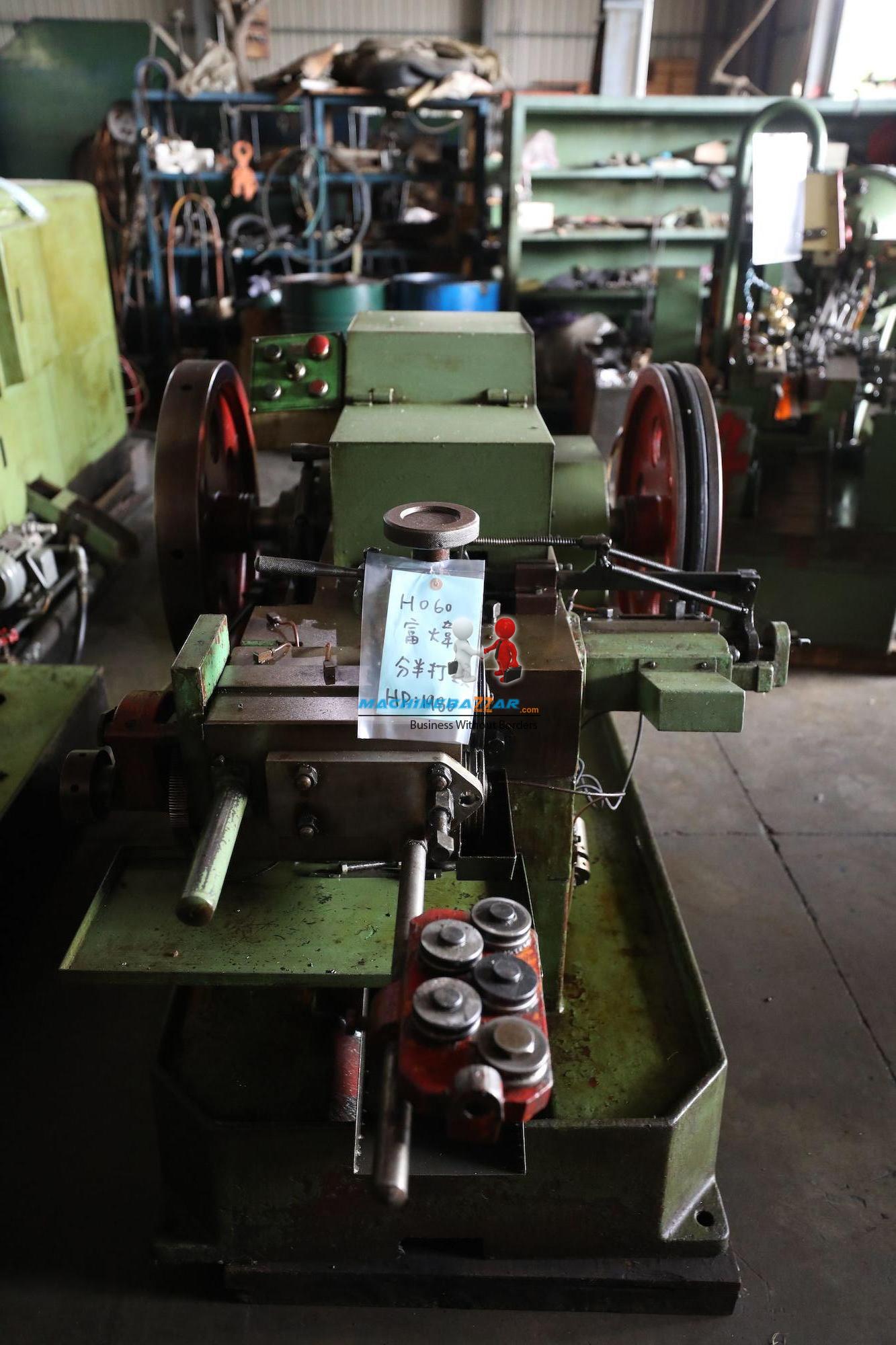

M2.2 X 15 Fu Wei 1D2B Cold header machine

View Seller Detail

MSZ-2781

Price: USD 5,120.00
Country of Mfg Taiwan
HP 2-4
Location Out of India
Make Fu Wei
Max Shank Length 14 mm
speed of machine 220 ppm
Max cutting length 20 mm
Max wire cutting dia 2 mm
Max wire {shank} dia 2 mm
Quantity 1

Specifications:

Wire DIA.: 0.5 - 2.2 mm
Cut-Off Length= 2-14 mm
KO Length: 14 mm
Production Rate: 80-220 pcs/min
Main Stroke: 36 mm
Up/Down Stroke: 26 mm
1st PKO Stroke: -
2nd PKO Stroke: 6*/9
Main Motor: 2HP - 4P
Main Die DIA.: 30x35.3L
1st Punch DIA.: 18x50L
2nd Punch DIA.: 18x50L
Pusher/Quill DIA.: 14/12
Cutter Dimensions: 6Hx20Wx58L
Net Weight: 1000 kgs
Packing Size: 2100x1200x17501
