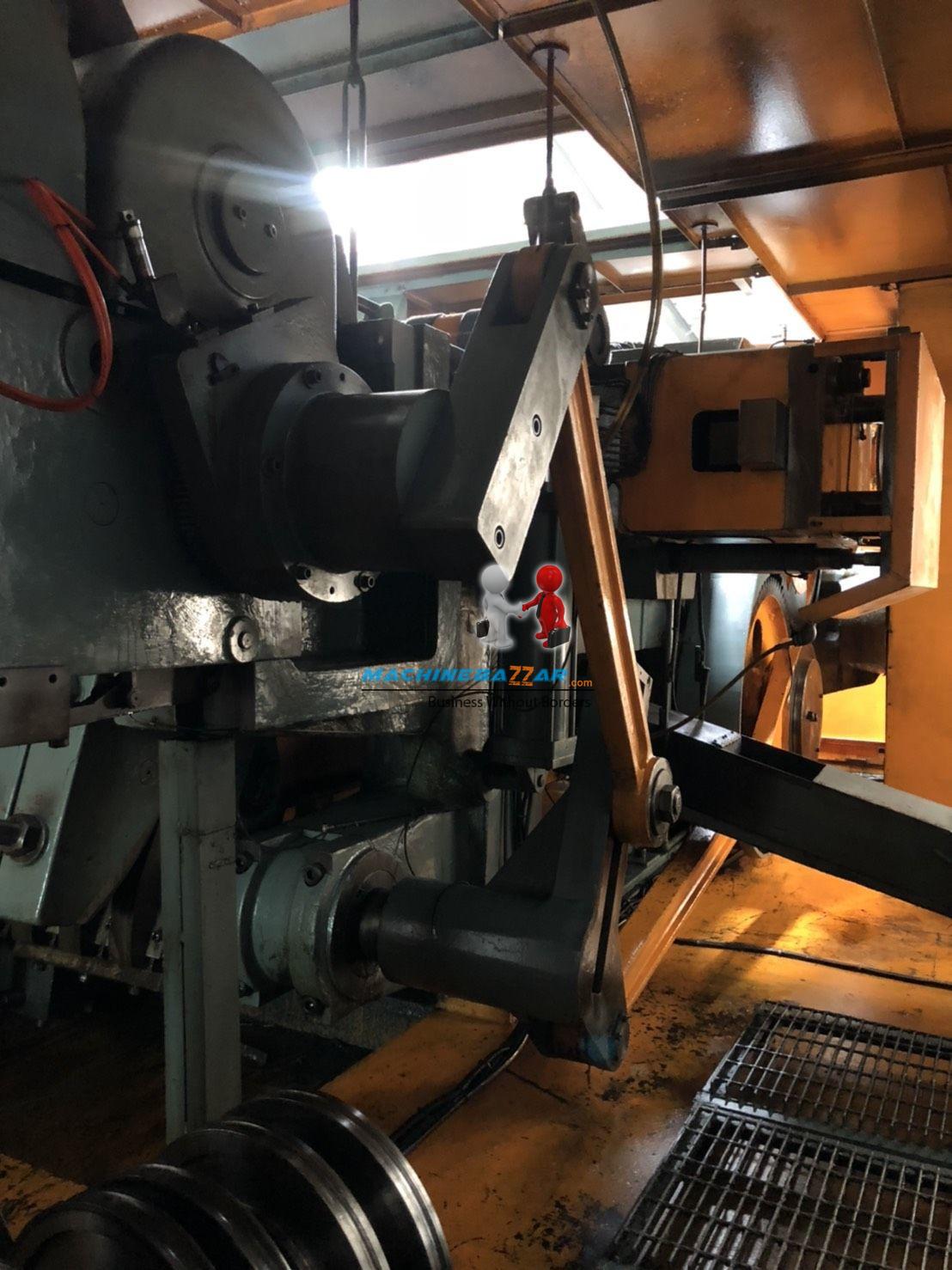

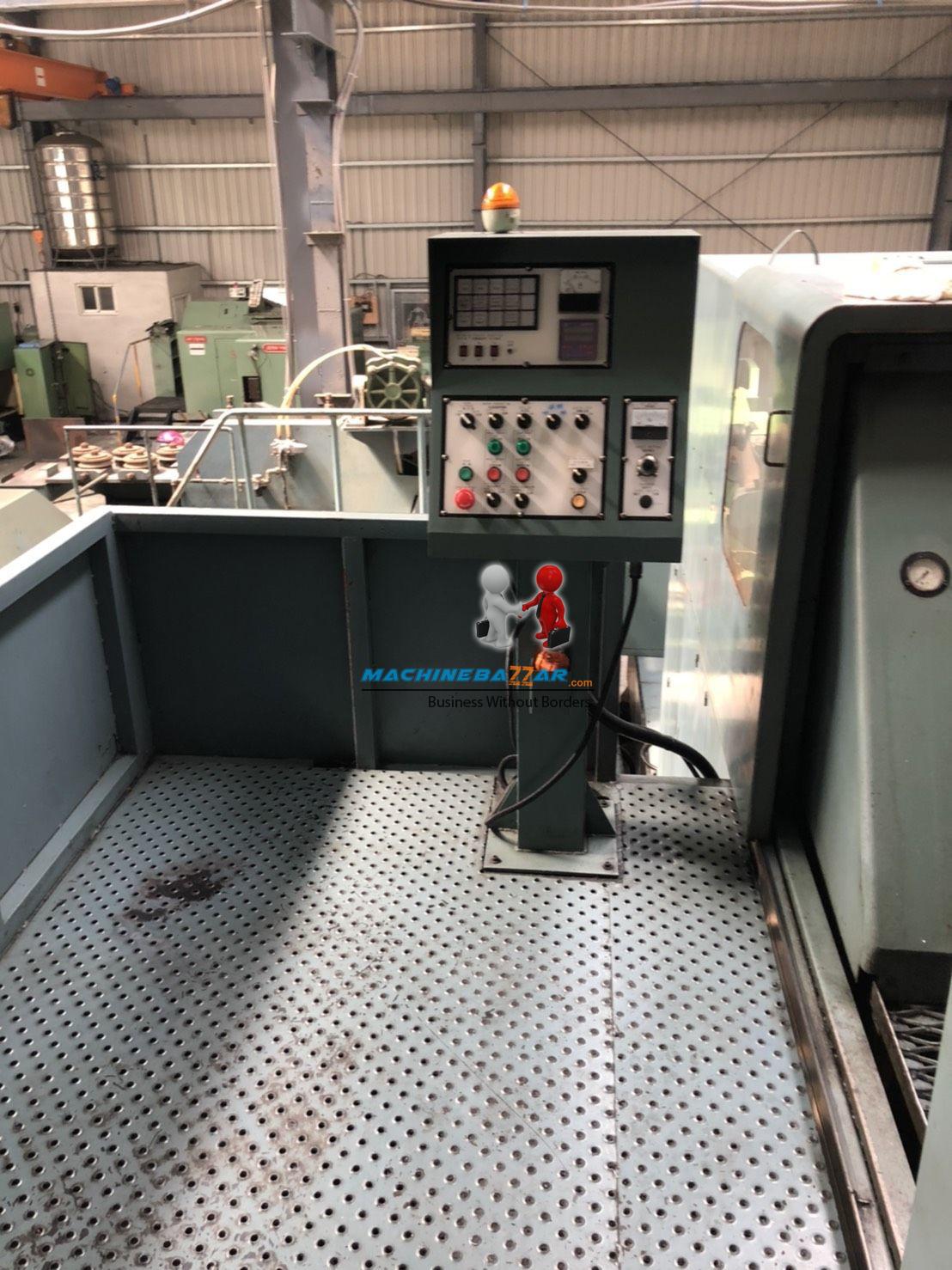

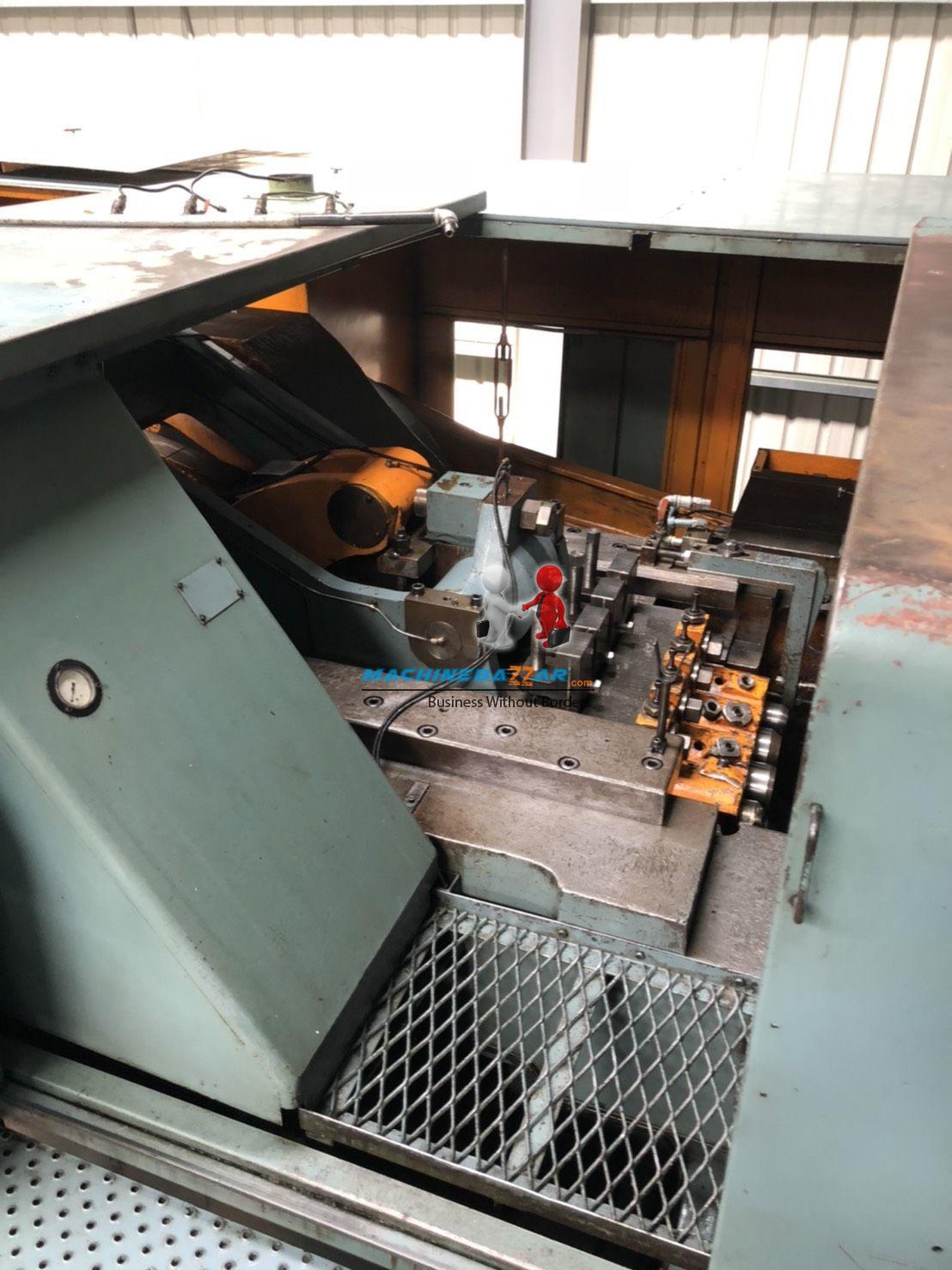

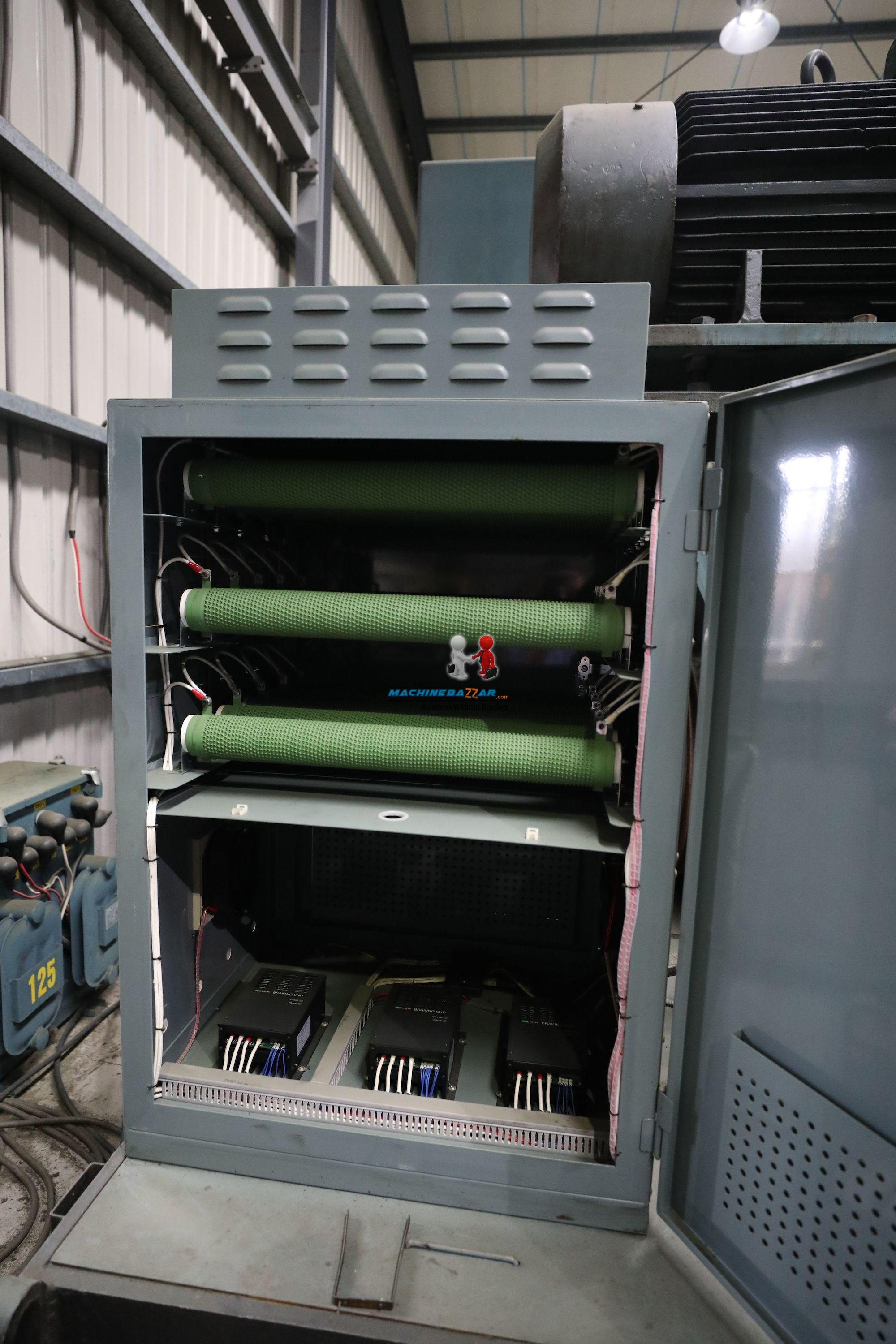

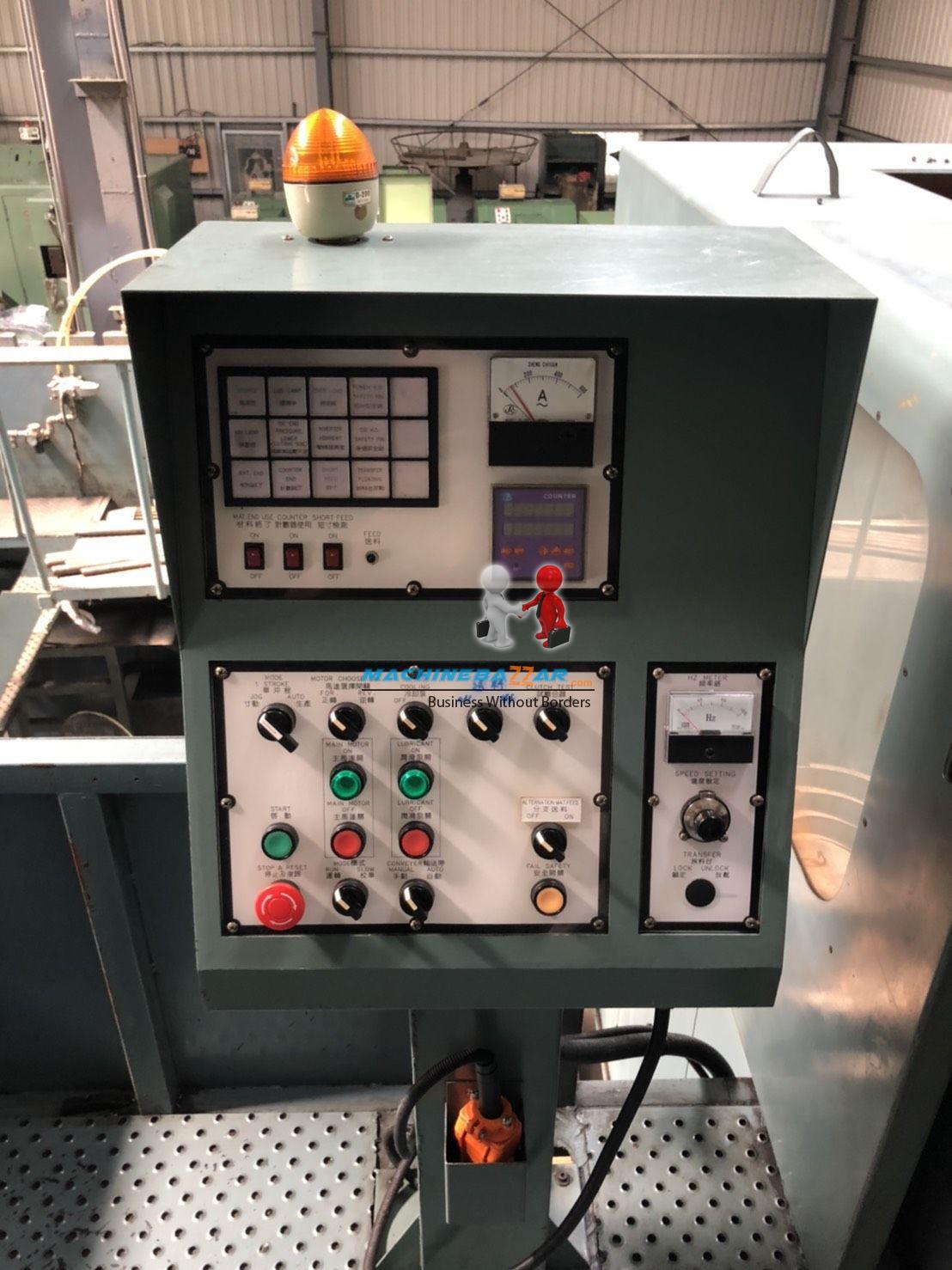

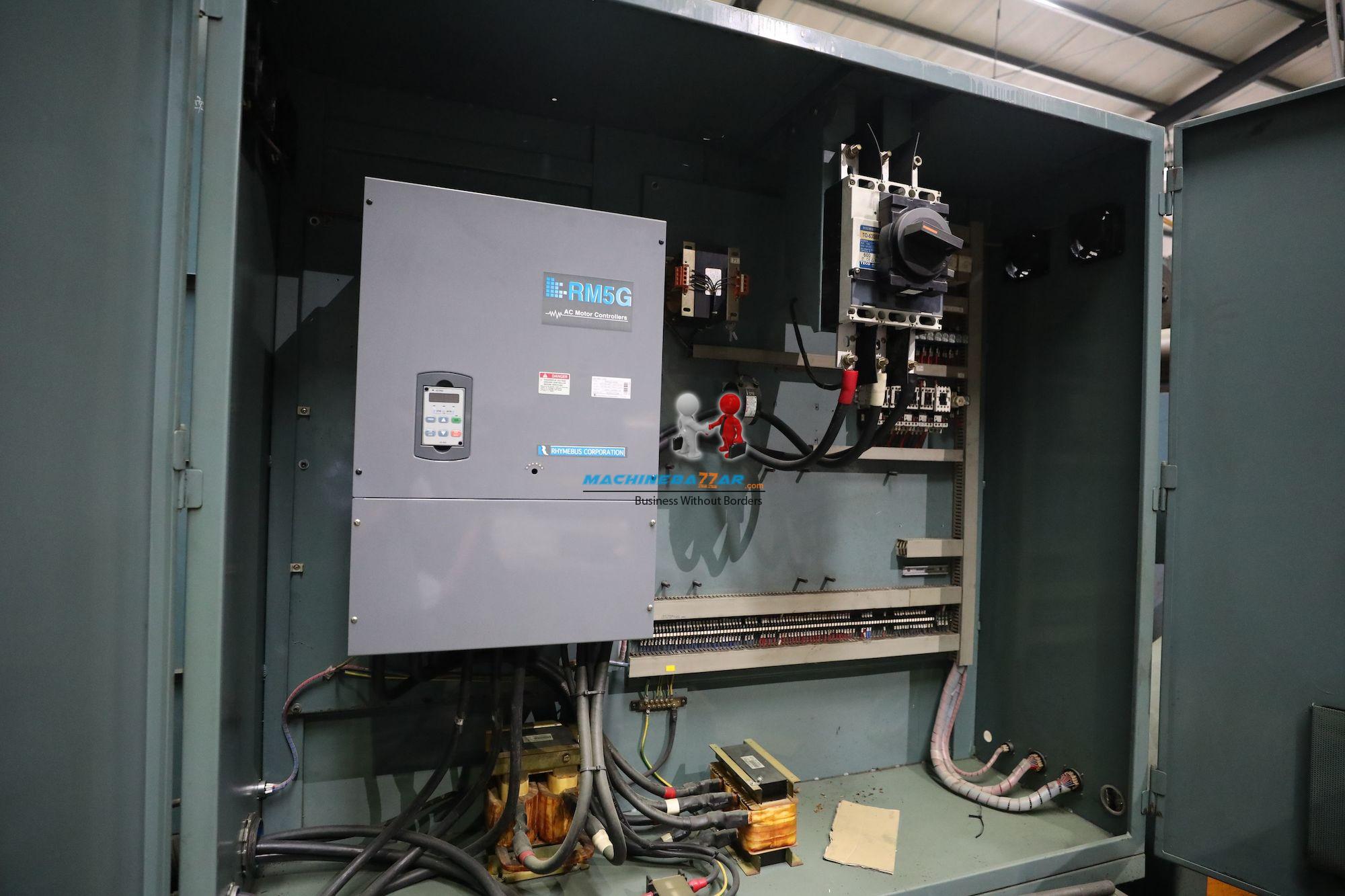

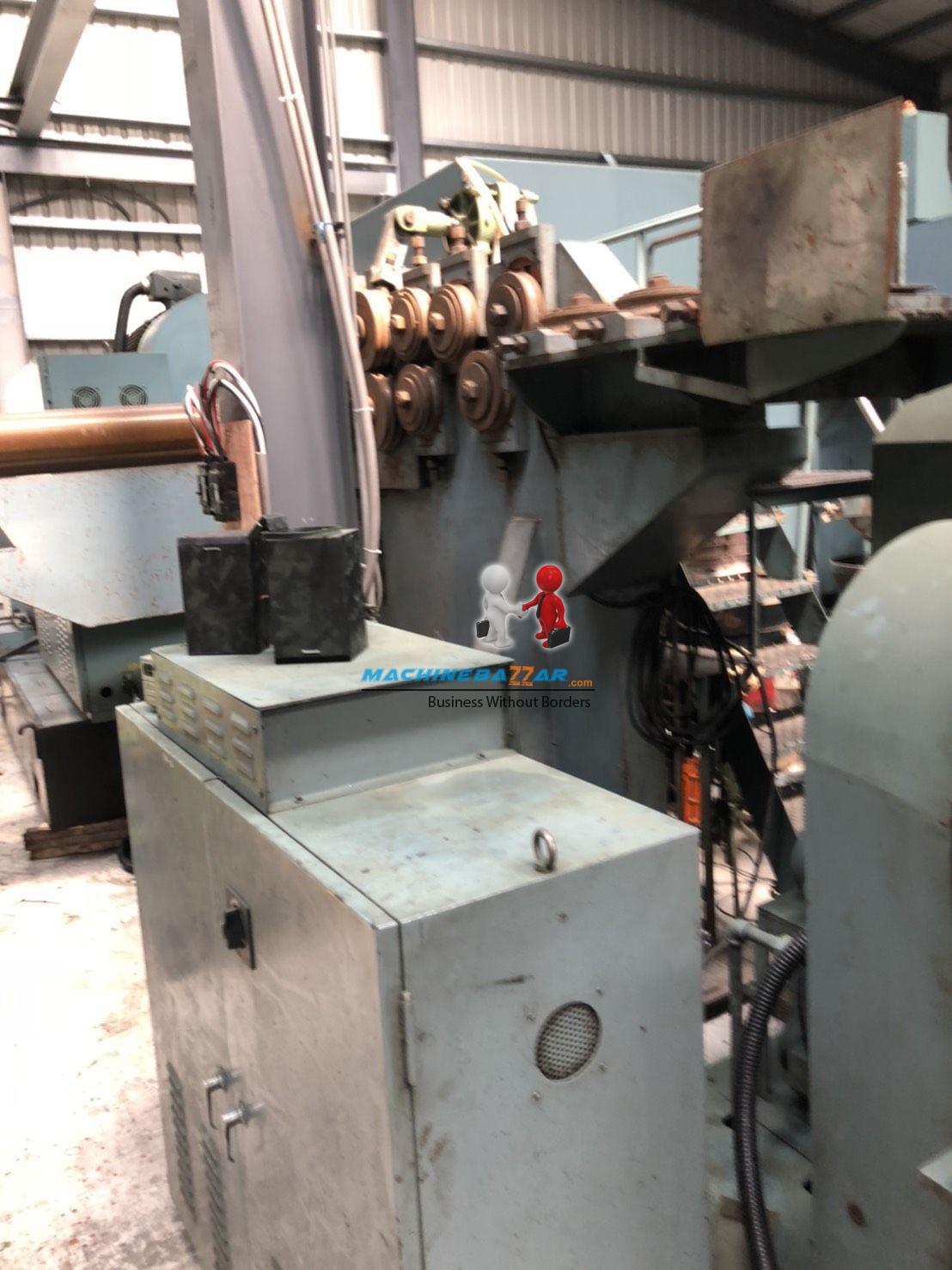

M26 X 175 Chun Zu 4 die 4 station Bolt former

View Seller Detail

MSZ-2765

Price: USD 318,940.00

Country of Mfg	china
Cut of Dia	26 mm
Cut of Length	253 mm
HP	125hp
Location	Out of india

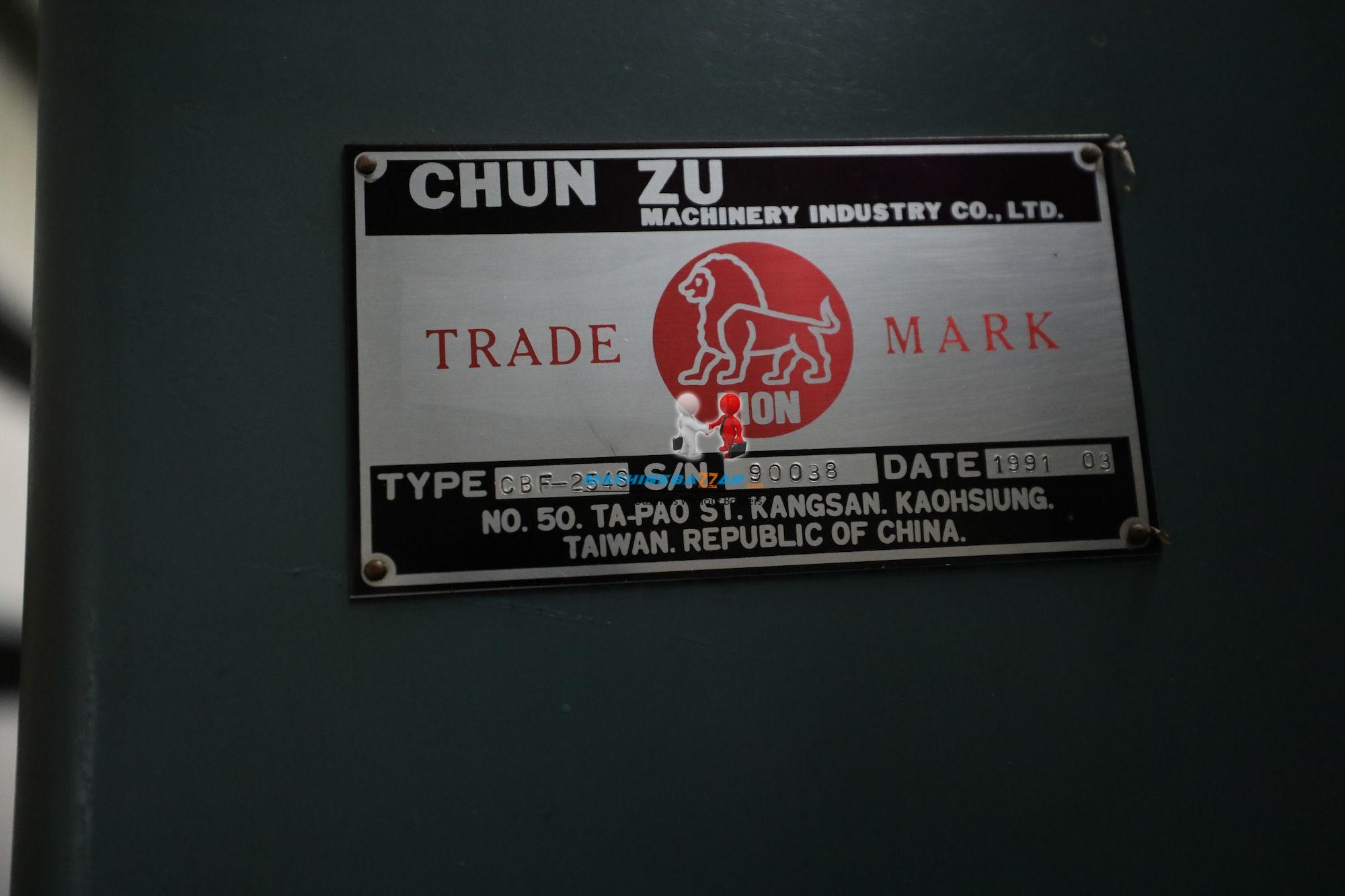

Make	Chun Zu
Max Shank Length	175 mm
Max wire dia	26 mm

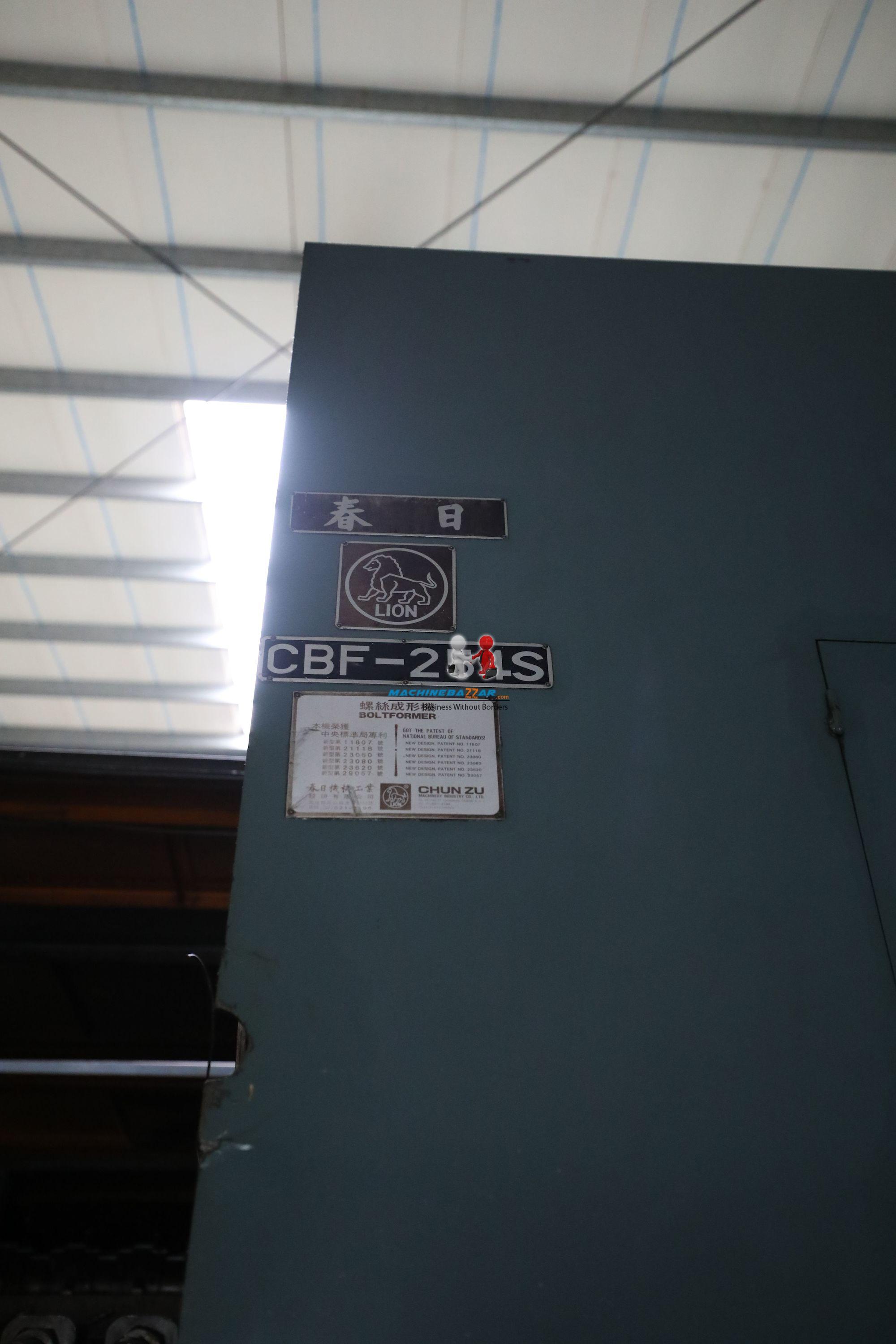

Model	CBF-254S
speed of machine	70 ppm
Quantity	1

Specifications:

Forging Station: 4 stations
Forging Load: 430000 kgs
Max. Cut-Off DIA.: 26
Max. Cut-Off Length: 253
Max Output: 70 pcs/min
P.K.O. Stroke: 40 mm
K.O. Stroke: 175 mm
Main Motor: 125 HP
Cut-Off Die DIA.: 80
Main Die DIA.: 140 x 250 L
Punch DIA.: 120 x 270 L
Machine Weight: 105000 kgs
Normal Size Of Bolt: 14 - 25.4
Shank Length Of Blank: 175
