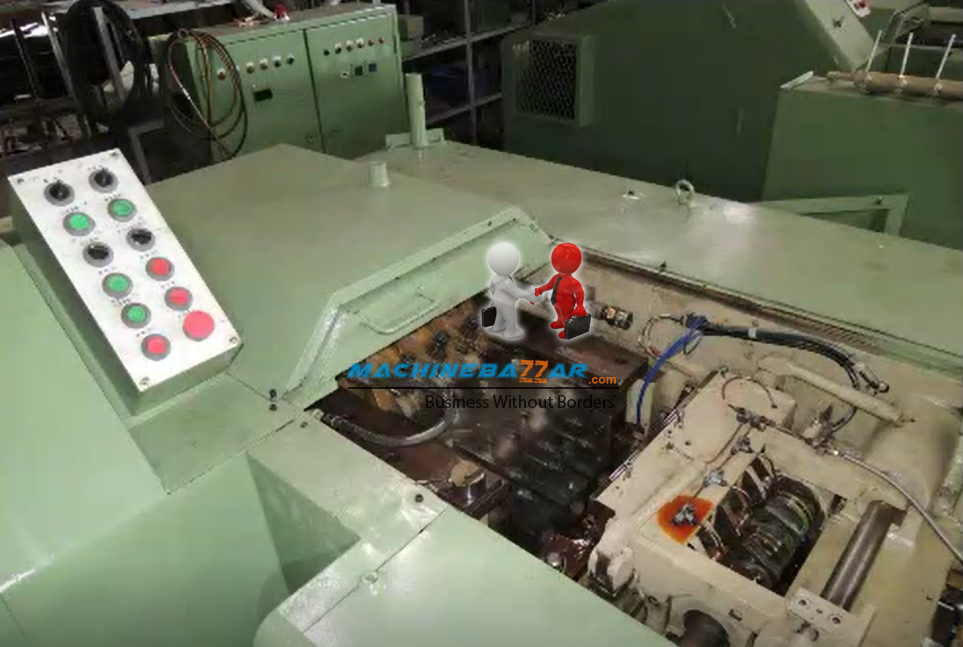

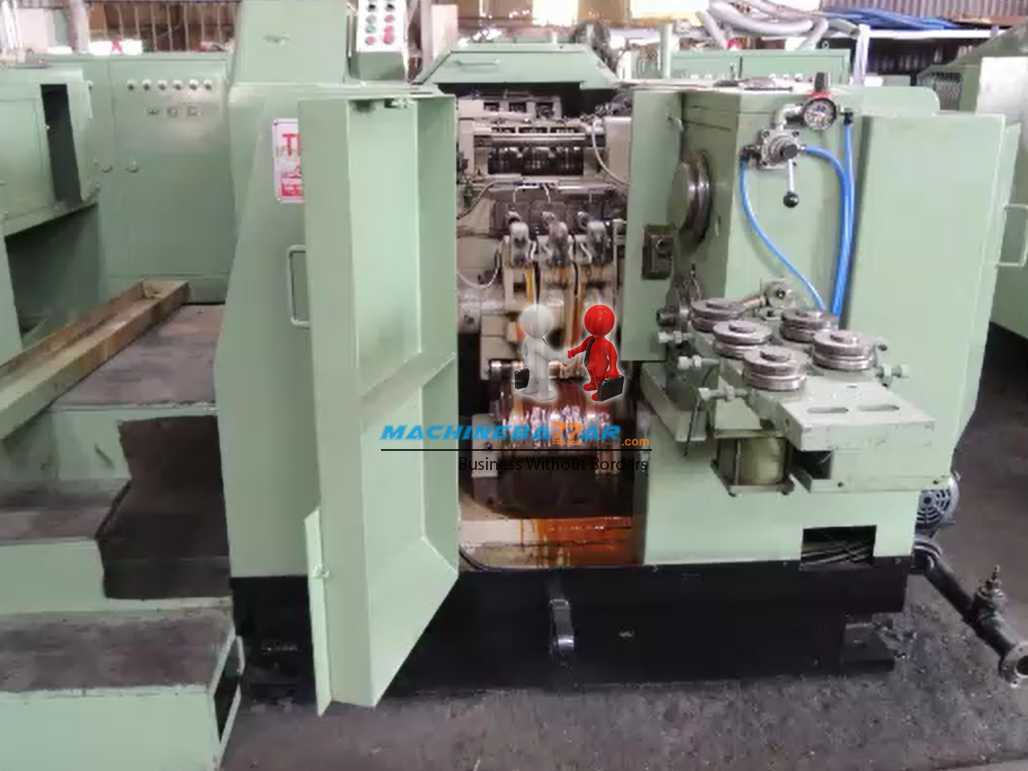

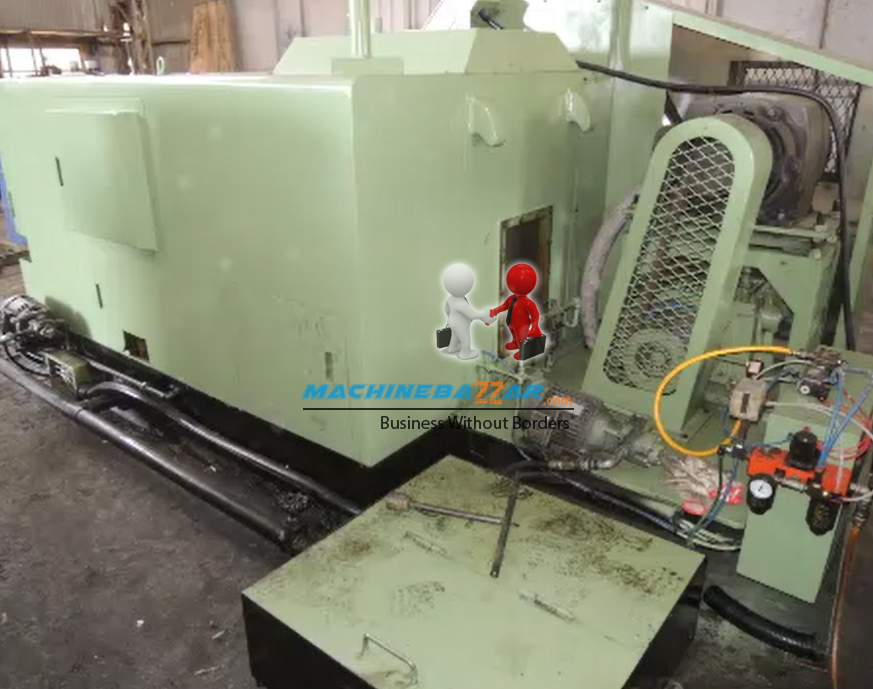

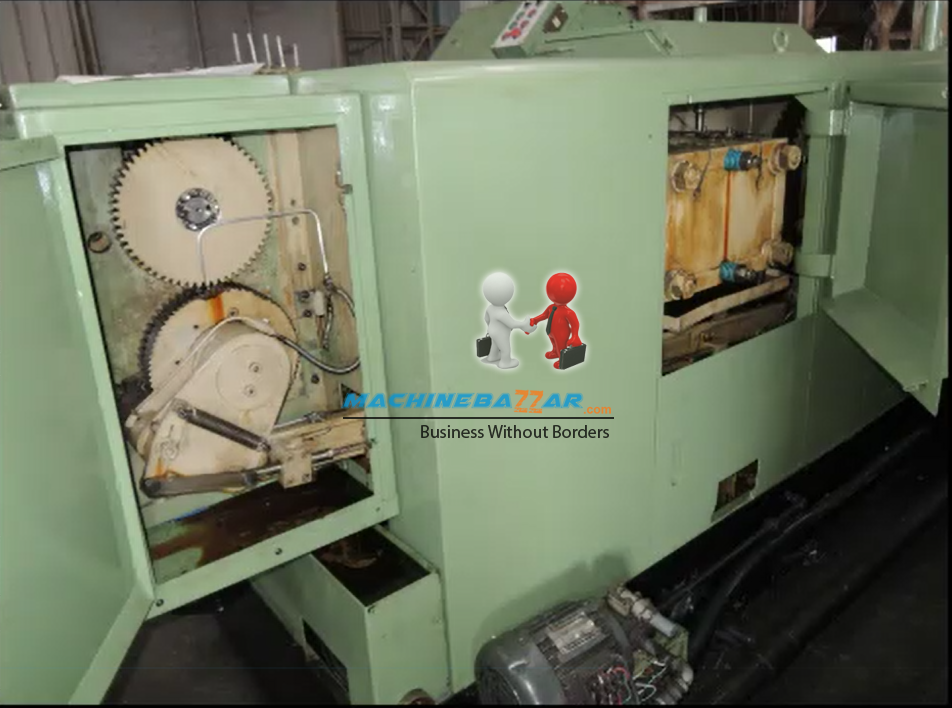

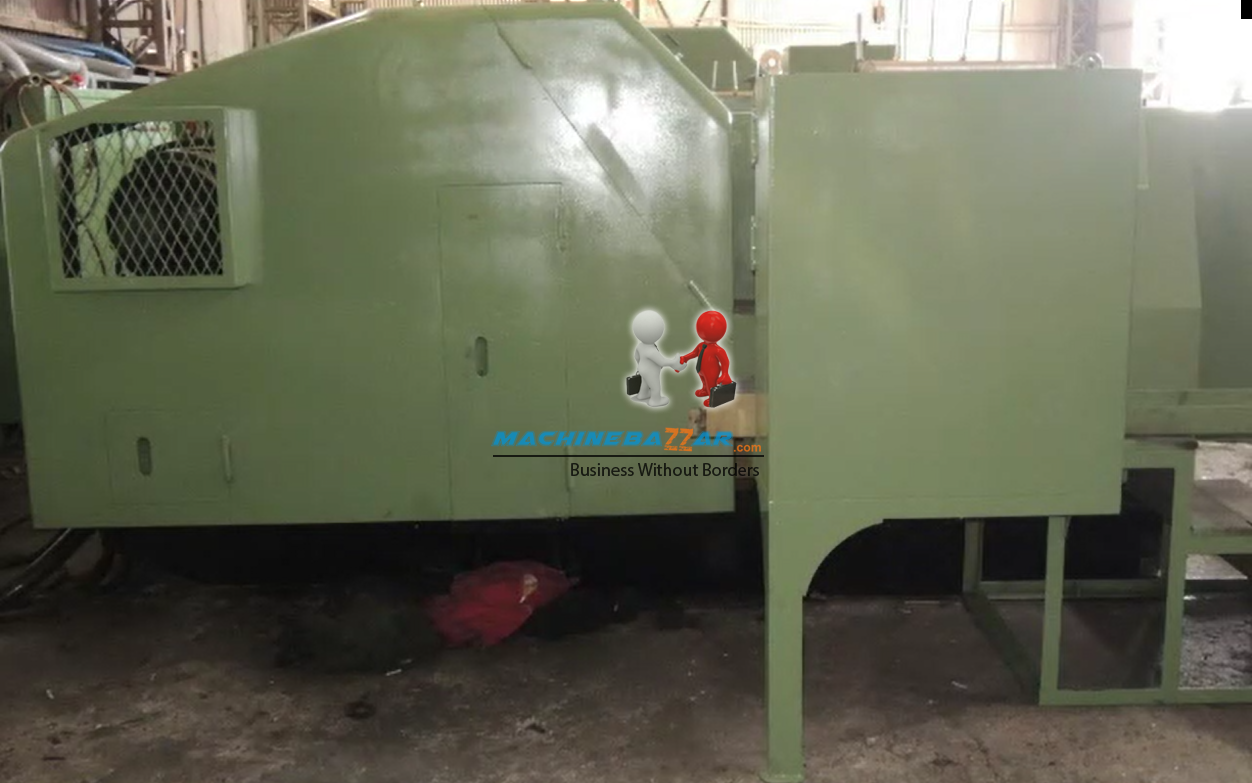

M10 X 70 high speed TK Ware 3 die 3 station Bolt former

View Seller Detail

MSZ-2762

Price: USD 55,820.00

Country of Mfg	Taiwan
Cut of Dia	10 mm
Cut of Length	94 mm
HP	15
Location	Out of india
Make	TK Ware
Max Shank Length	70 mm
Max wire dia	10 mm
Model	TK13B3S
speed of machine	250 ppm
Quantity	1

Specifications:

Forging Station: 3 Station
Cut-Off DIA. (MAX): 10 MM
Cut-Off Length (MAX): 94 MM
Kick-Out Length (MAX): 70 MM
Punch Kick-Out Length (MAX): 16 MM
Cut-Off Quill (DIA.xLength): 40x80 MM
Main Die (DIA.xLength): 60x110 MM
Center Distance Between Dies: 87 MM
Punch Hole (DIA.xLength): 45x103 MM
RAM Storke: 140 MM
Forging Power (TON): 40 tons
Products: M8X65
Out Put (MAX): 250 PCS/MINUTE
Main Motor: 15 HP
Lubrication Motor: 1 HP
Cooling Motor: 1 HP
Lubricant: 180 L
Coolant: 220 L
Approx. Weight: 10000 kgs
