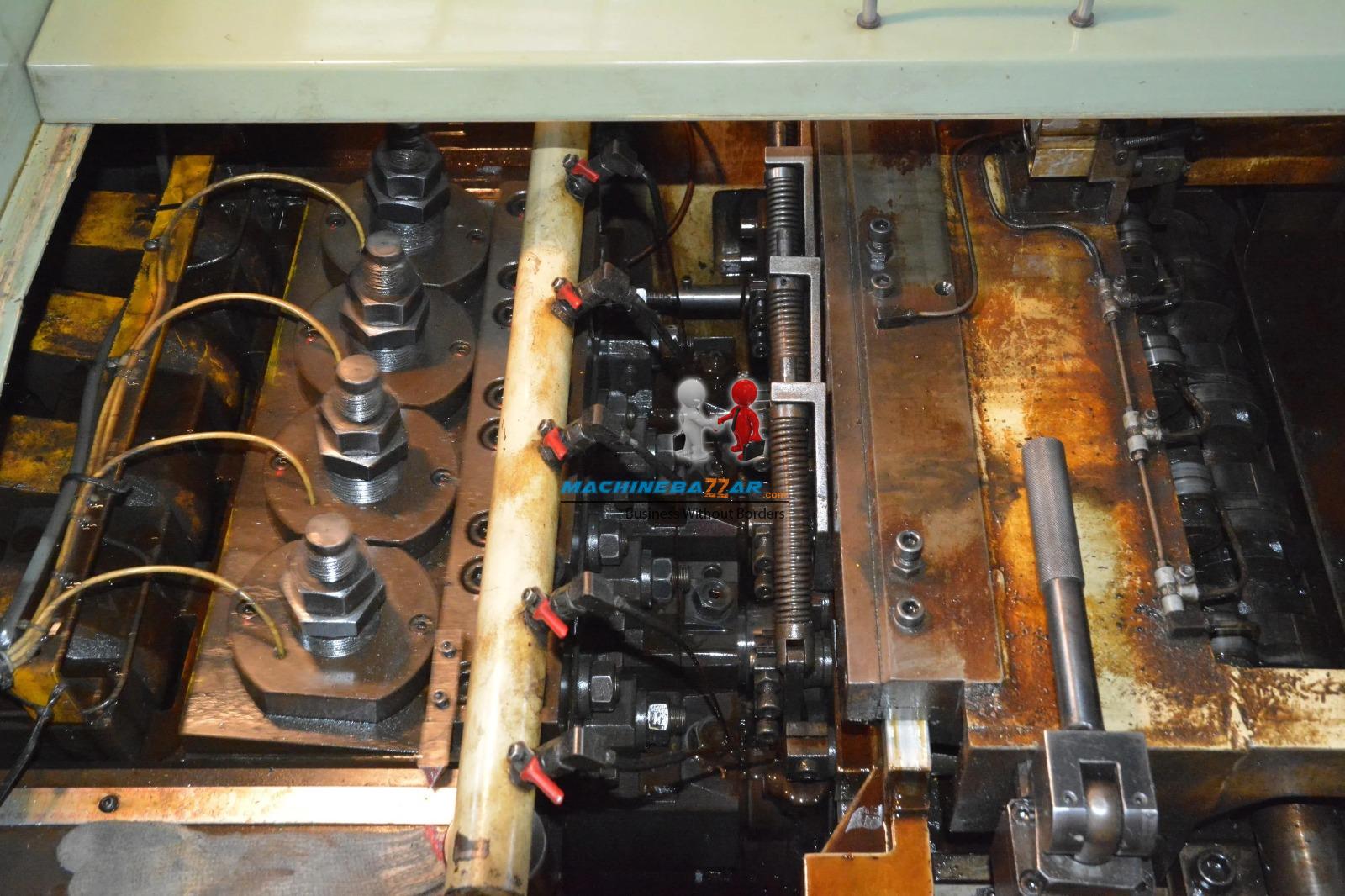

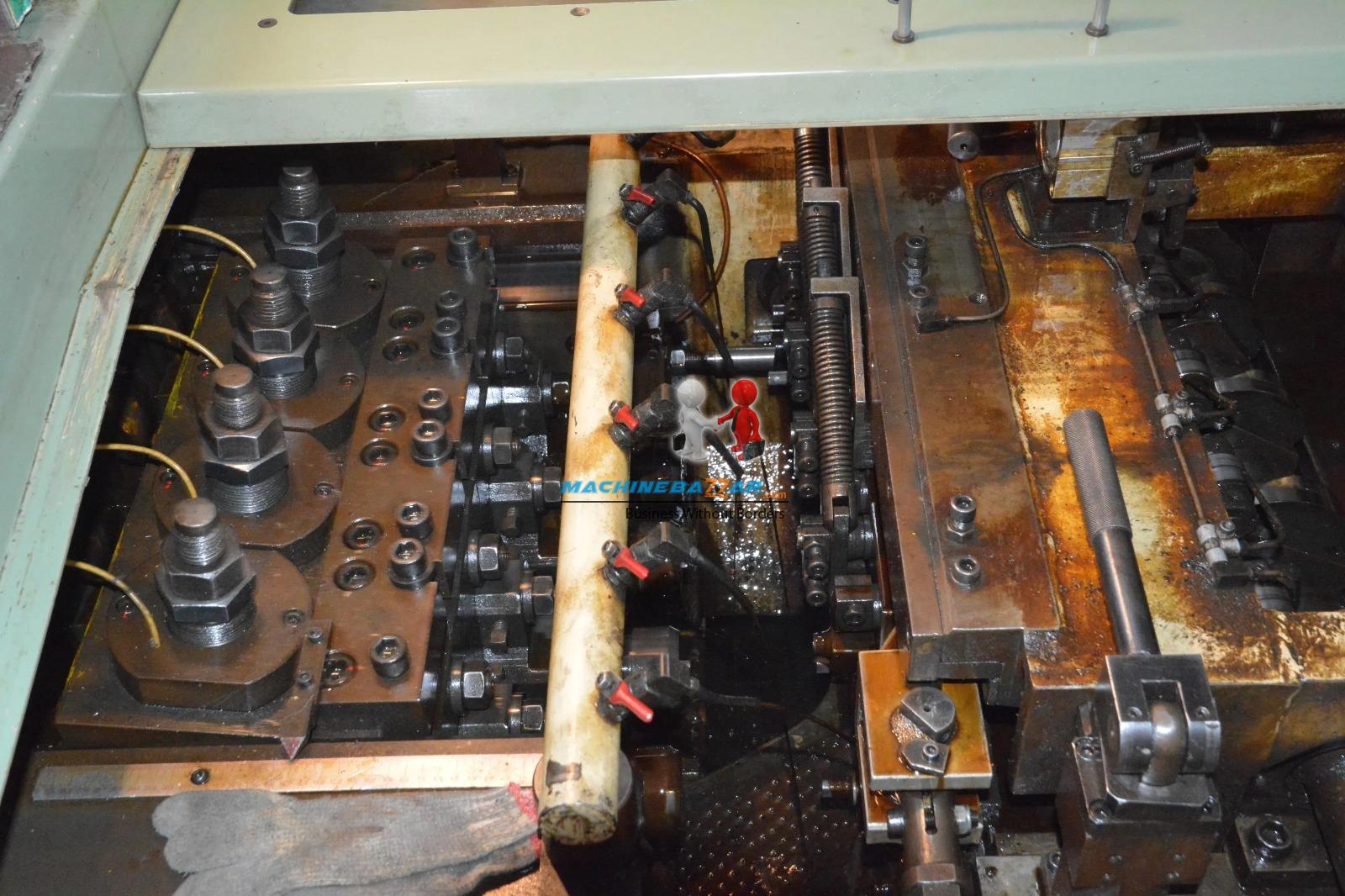

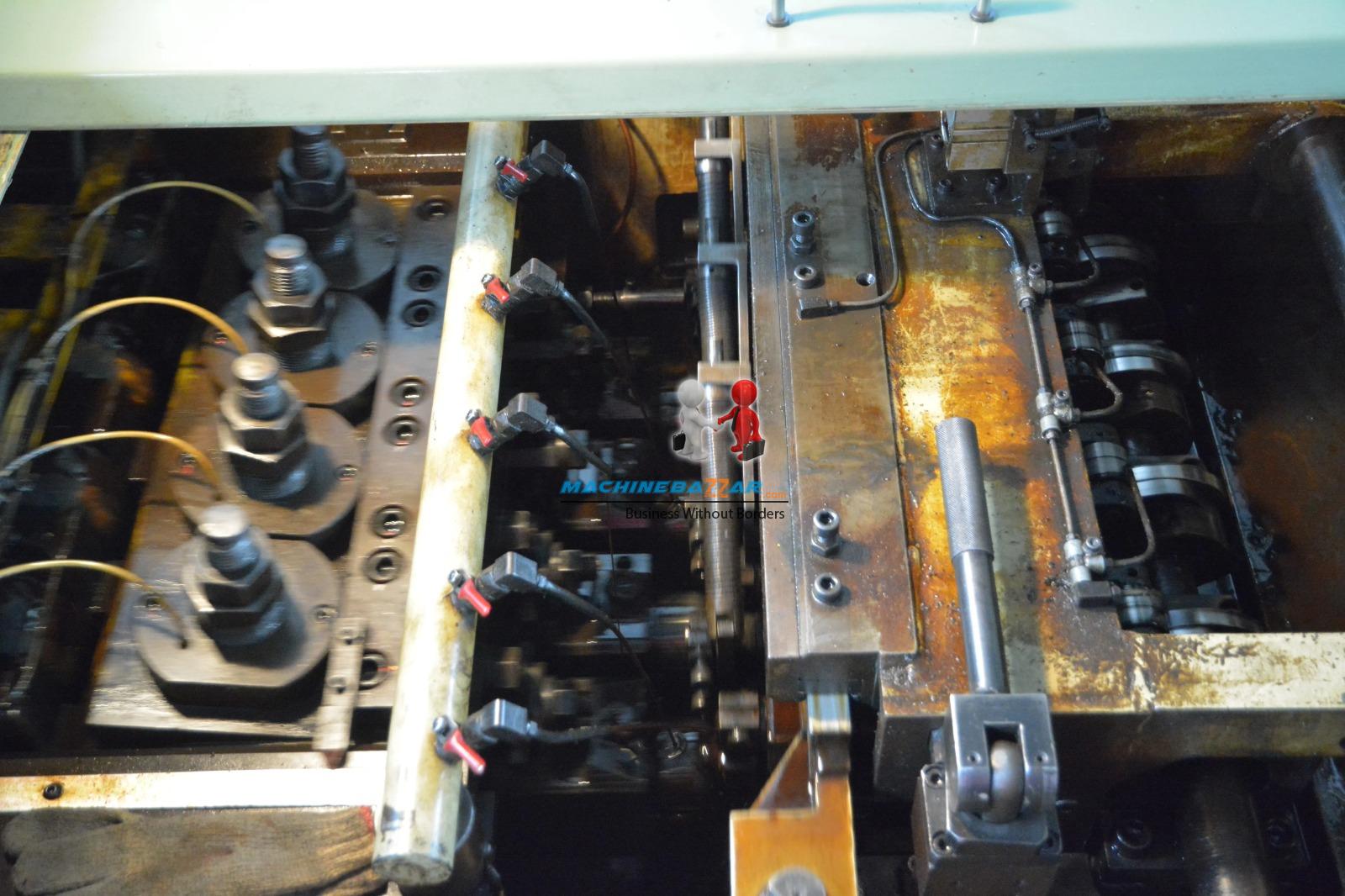

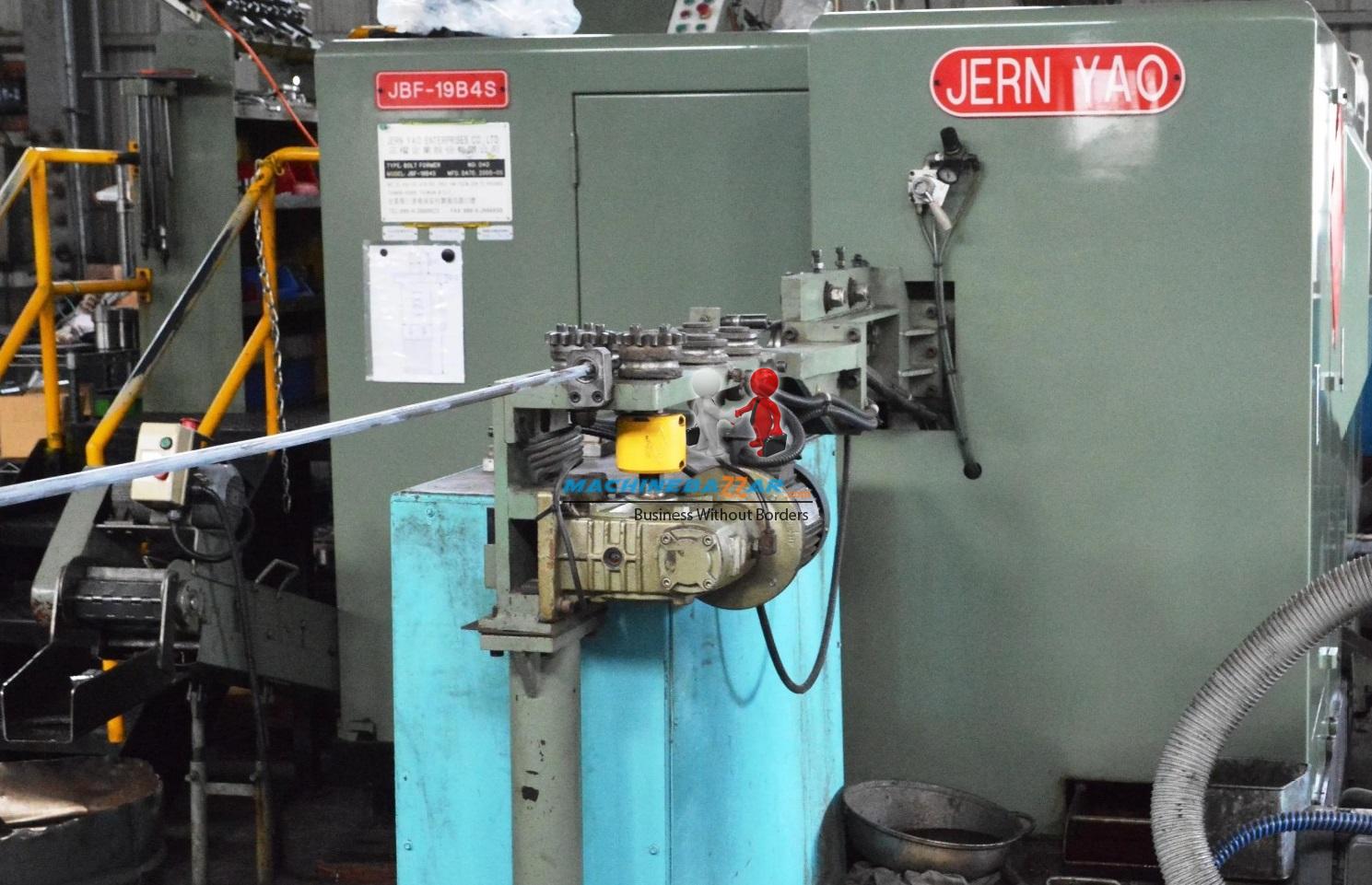

M16 X 150 Jern yao 4 die 4 station bolt former

View Seller Detail

MSZ-2759

Price: USD 161,180.00

Country of Mfg	Taiwan
Cut of Dia	16 mm
Cut of Length	140 mm
HP	50
Location	Out of india
Make	Jern yao
Max Shank Length	120 mm
Max wire dia	16 mm

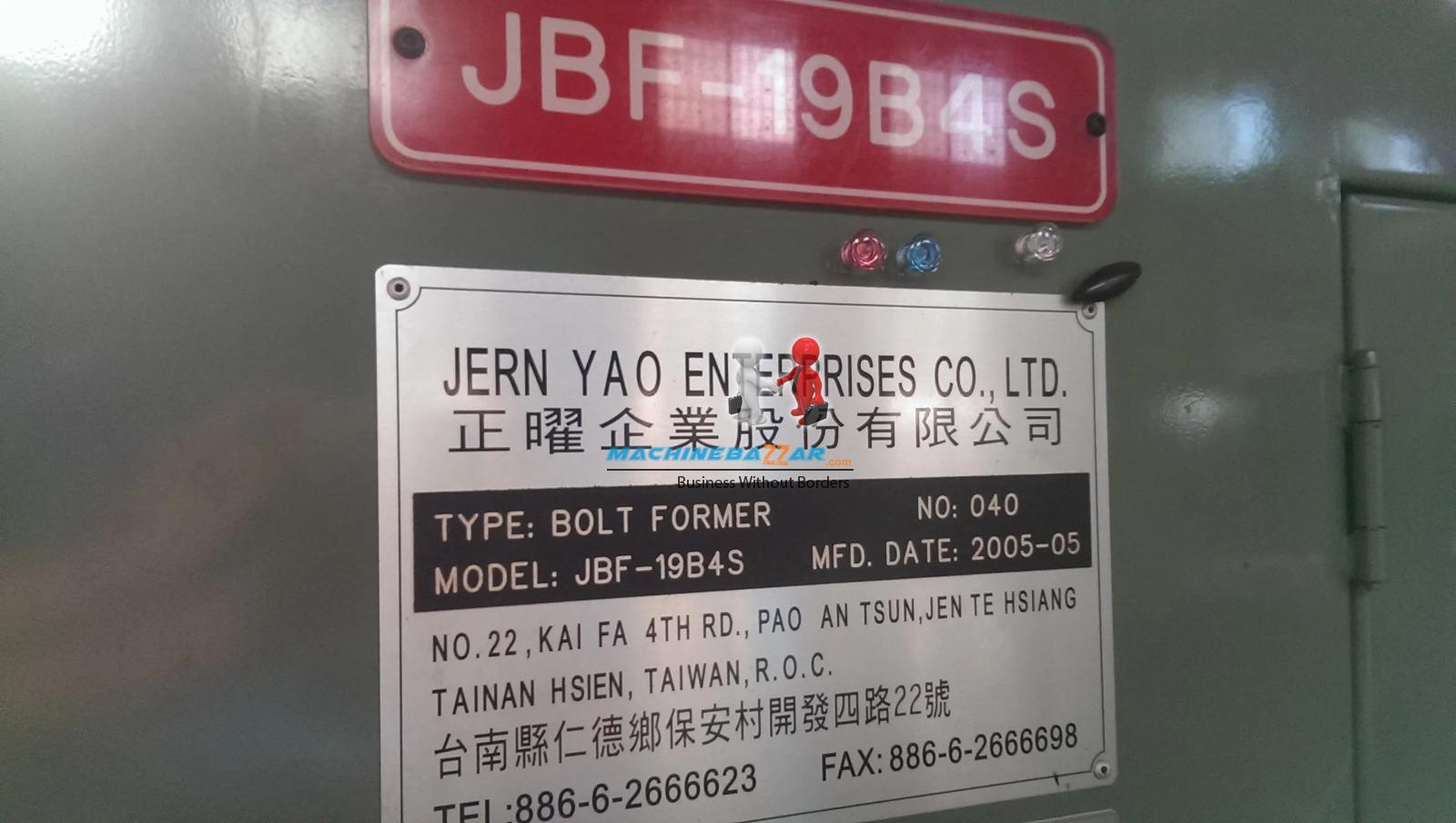

Model	JBF-19B4S
speed of machine	170 ppm
Type	4D4S
Weight	23000 kgs
Year of Mfg	2005
Quantity	1

Specifications:

1. Specification:
- Max. Cut-Off Dia.: Dia. 15mm
- Max. Cut-Off Length: 140mm
- Max. Kick-Out Length: 120mm
- Max. P.K.O Length: 26mm
- Cut-Off Quill: Dia.46*80L mm
- Main Die Hole: Dia. 90*135L mm
- Dies Pitch: 114mm
- Punch Hole: 60*120mm
- Ram Stroke: 200mm
- Forging Power: 120ton
- Products Size: 1/2(M12)
- Products Max. Length: 100mm
- Product Min. Length-Hex bolt: 20mm
- Product Min. Length-Socket: 25mm
- Max. Out Put: 170pcs/Min
- Main Motor: 50HP

2. Accessories: Die Holder*4pcs(New), Die back pad*5pcs, Reel*21pcs, Oil Filter*1unit
3. Est. Weight: 23,000kgs
4. Est. Dimension: 820(machine with accessories)*270*200 cm
5. Package: Export Standard Packing for Flat Rack Shipment.
Extra Charge will Apply for Wooden Case/Crate Packing If Required.
