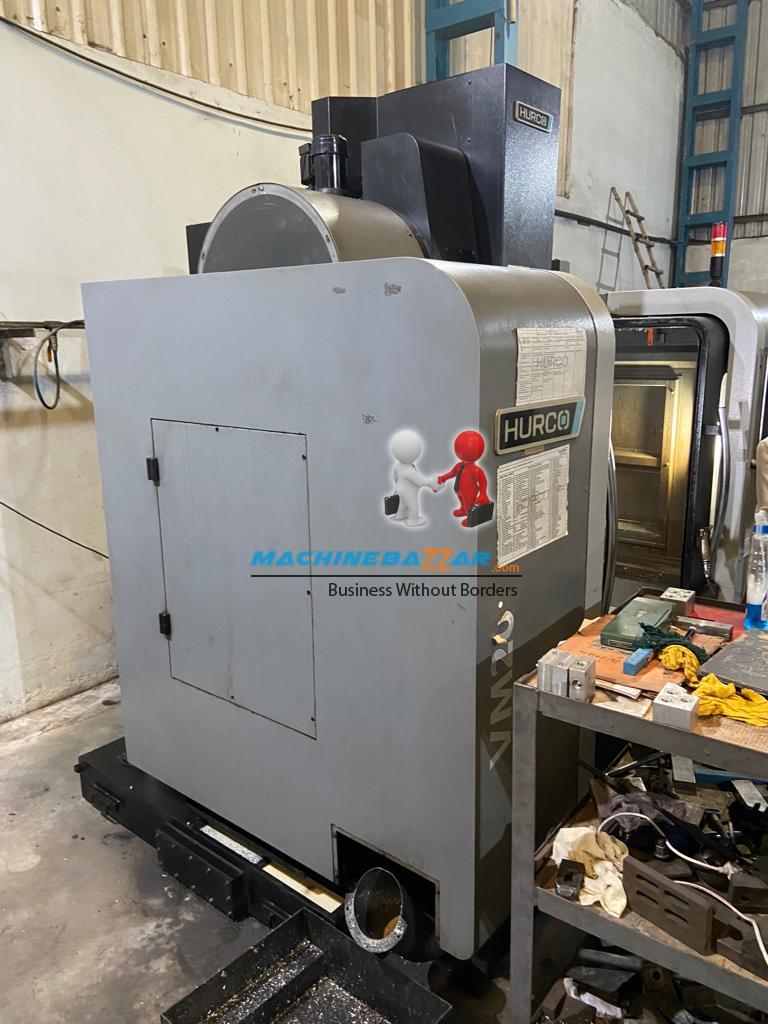

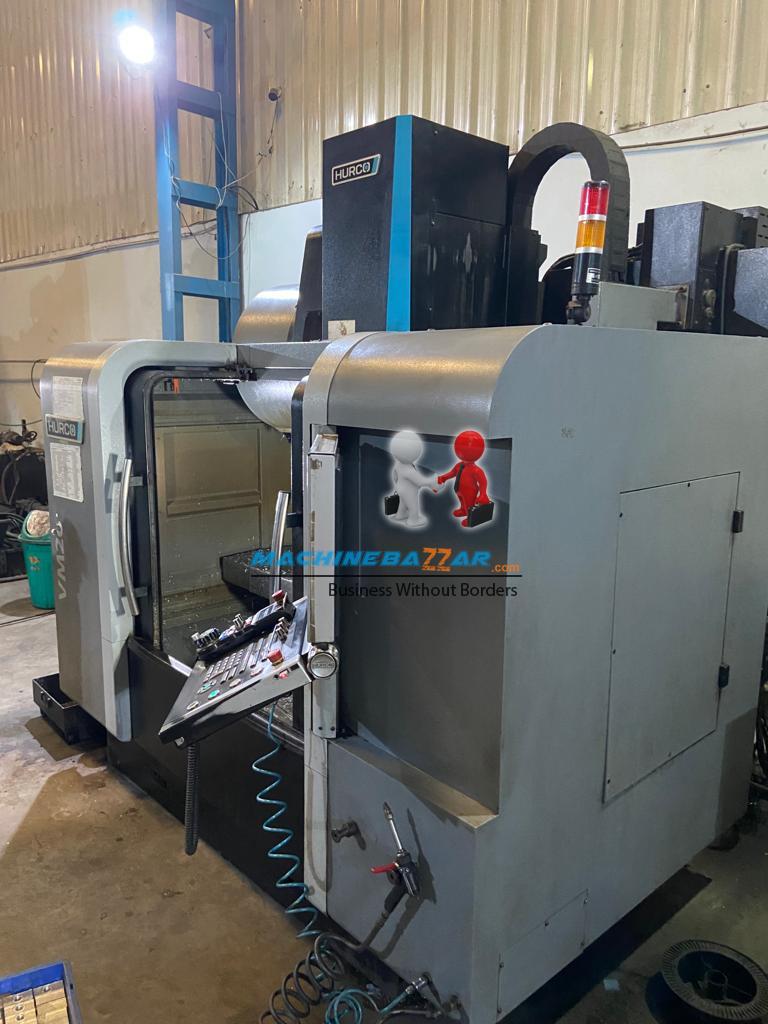

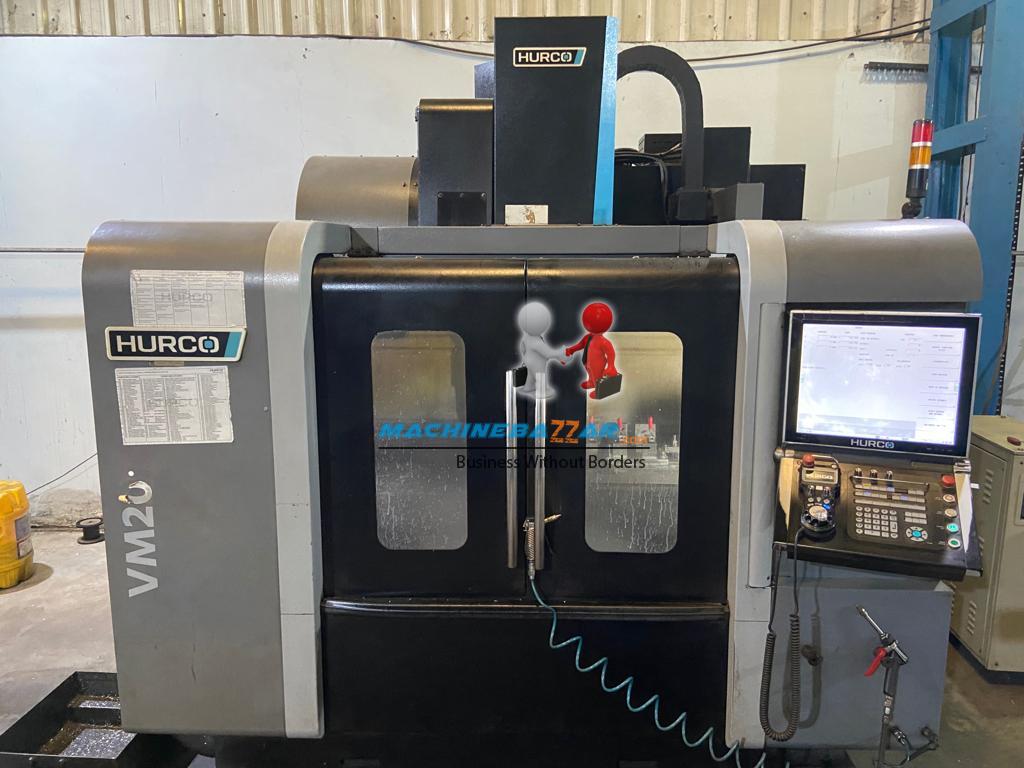

500 X 500 X 1000 Hurco 3 Axis VMC machine

Sold Machines

MSZ-2727

Price: INR 2,600,000.00

HP	20
Location	India
Make	Hurco
Model	vm20i
speed of machine	12000 rpm
Weight	4100 kg
Year of Mfg	2018
Axis size (large) Z	1016 mm
Axis size (medium) Y	508 mm
Axis size (small) X	508 mm
Table size ( small size ) X	508 mm
Table size (large size ) Y	1168 mm
Quantity	1

Specifications:

MACHINE SPECIFICATIONS
TRAVELS & CAPACITY
X, Y, Z Axis Travel 40 x 20 x 20 in (1016 x 508 x 508 mm)
Table Size 46 x 20 in (1168 x 508 mm)
Max. Weight on Table 3970 lbs (1800 kg)
Spindle Nose to Table Min/Max 4.0 / 24 in (102 / 610 mm)
T-Slot Size 5 x .71 in (5 x 18 mm)

SPINDLE
Max. Spindle Speed 12000 rpm
Spindle Power (peak - 1 min) 20 hp (15.0 kW)
Spindle Torque (peak - 1 min) 75 ft-lbs @ 1450rpm (102 Nm @ 1450 rpm)

TOOL CHANGER
Tool Type CAT 40 / Big Plus (CAT/BT 40)
Number Of Tools 20 (24)
Max Tool Diameter 3.1 in (80 mm)
Max Tool Length 9.8 in (250 mm)
Max Tool Weight 15.4 lb. (7 kg)

FEEDRATES
Rapid Traverse X,Y,Z Axis 1102 in/min (28 m/minute)
Max Programmable Feedrate 1102 inches/minute (25.5 m/minute)
SIZE
Max. Operating Floor Space 145.8 x 118.4 in (3703 x 3007 mm)
Machine Height 101.5 in (2,576 mm)
Machine Weight 9,039 lbs (4,100 kg)
