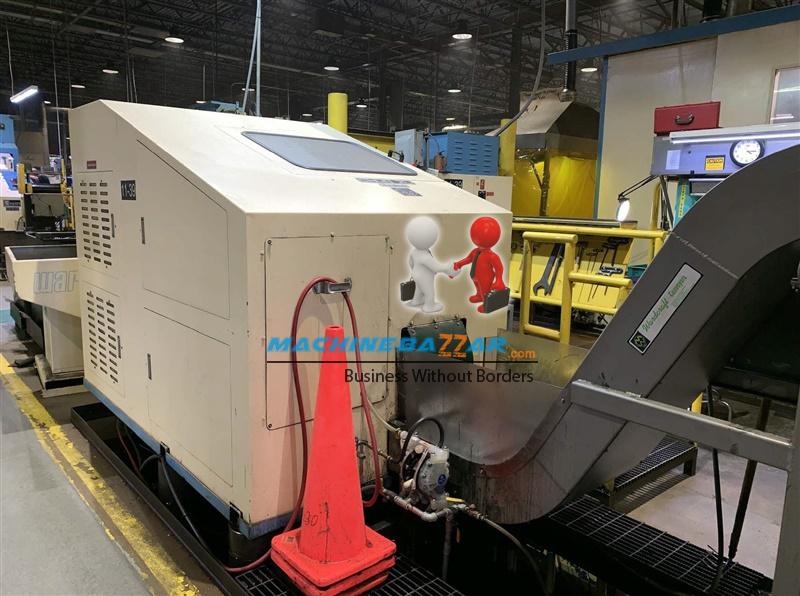

M20 X 100 Chun Zu Flat die thread rolling machine

View Seller Detail

MSZ-2604

Price On Request

Country of Mfg	Taiwan
HP	30
Location	Out of india

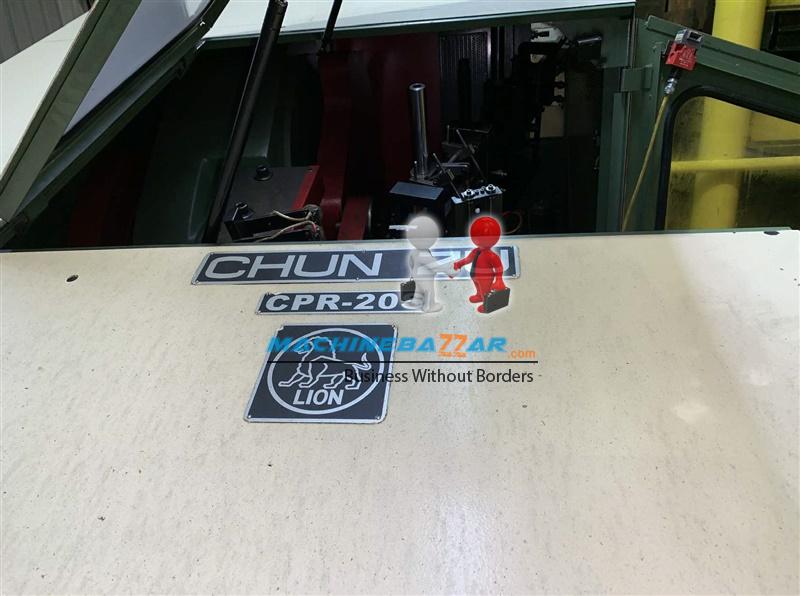

Make	Chun Zu
speed of machine	90 ppm
Max dia of screw / bolt	20 mm
Max length of screw / bolt	100 mm
Quantity	1

Specifications:

Thread Diameter:
20M
0.787"
Shank Length Under Head Range:
30 mm to 150 mm
1.181" To 5.905"
Maximum Thread Length:
100 mm
3.937"
Die Pocket Depth:
130.175 mm
5.125"
Maximum Speed: 90 ppm
Waterbury Die Size: No. 40
Air Pressure Requirement: 6kgf/Cm2 85psi
Main Motor: 30 HP
Floor Space Required: 10' 10"L X 4' 2"W X 7' 6"H
Net Weight: 23,400 LBS
Equipped With:
One Elevator Style Feeding System
One Set of Standard Spare Parts
T-Bar Construction
Full Soundproof Machine Cover
Pneumatic Brake System
Feed Finger Retractor with Roll Up Detector and Bad Blank Discharge Flap
Speed Indicator
Piece Counter

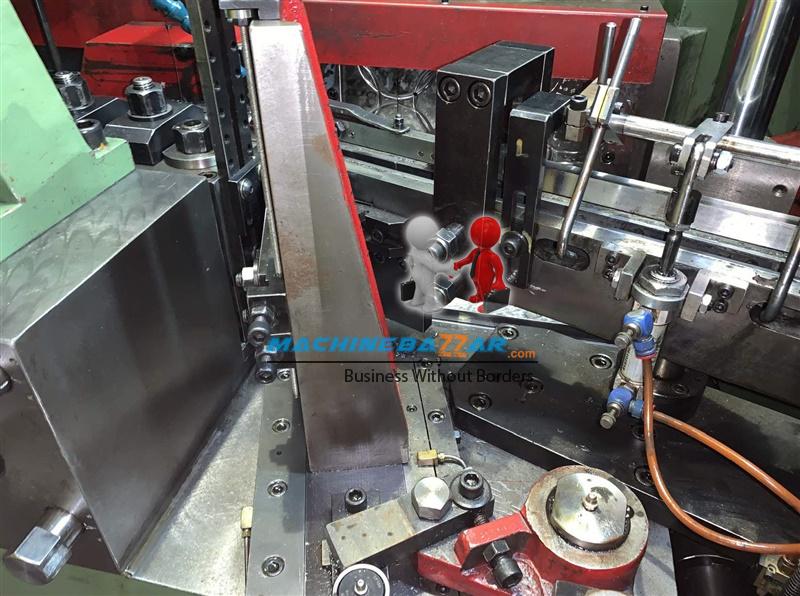

Precise Adjustment Mechanism
AC Motor Drive with Inverter
Easy Adjustment (X.Y.Z.) Of Stationary Die Pocket
Rotary Cam Timing Adjustment
