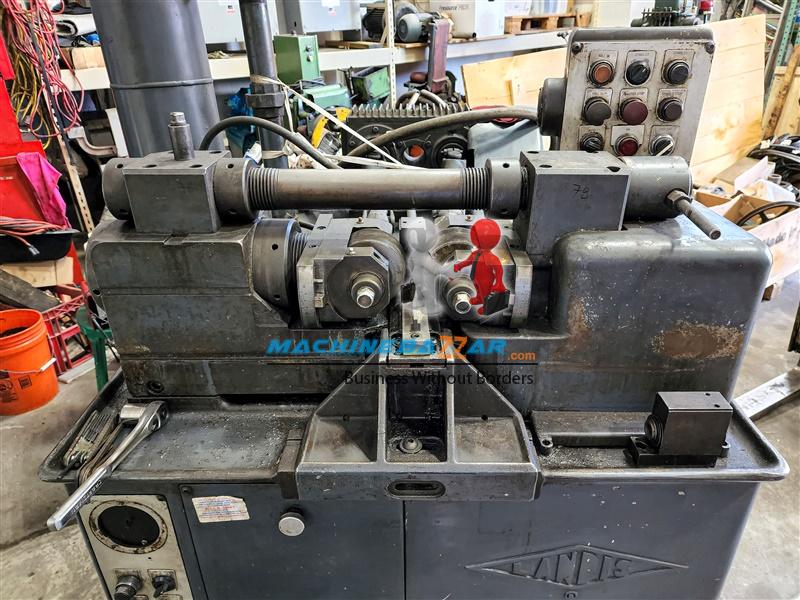

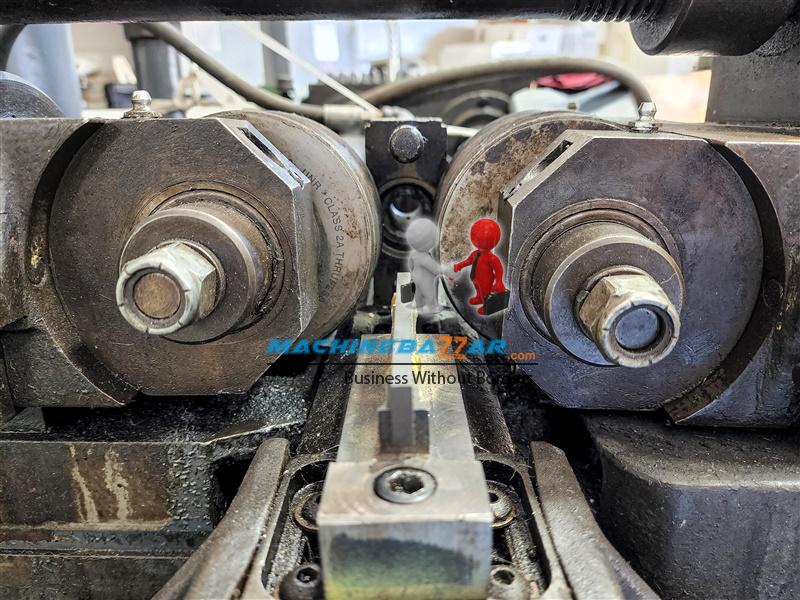

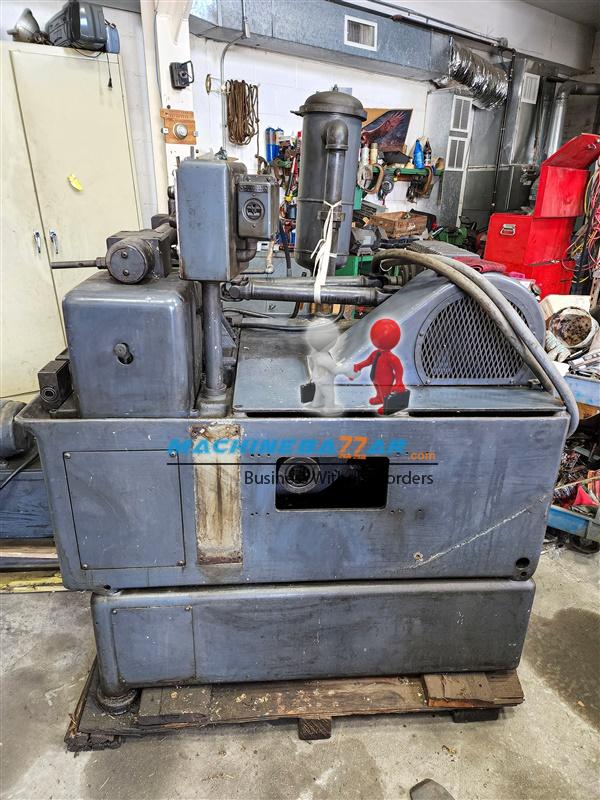

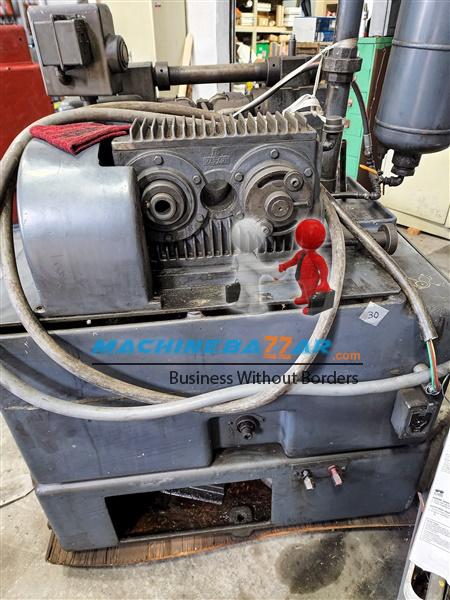

M50 X 1000 Landis 2 Die Cylindrical Die Thread Rolling Machines

View Seller Detail

MSZ-2577

Price On Request

Make	Landis
Max Shank Length	1000 mm
speed of machine	60 spm
Type	2 Die Cylindrical
Max dia of screw / bolt	50 mm
Quantity	1

Specifications:

Maximum In-feed Diameter: 2"
Thru-Feed Diameter: 1-1/2"
(2" Soft Material)
Max Rolling Pressure: 25,000 Lbs.
Spindle Diameter: 1-1/2"
Max Diameter Die Size: 4-1/2(OD)
Max Width Die Size: 4-1/4
In-feed Cycle Speed: Up to 60 spm
Work Height Die Center: 40-1/4
Equipped With:

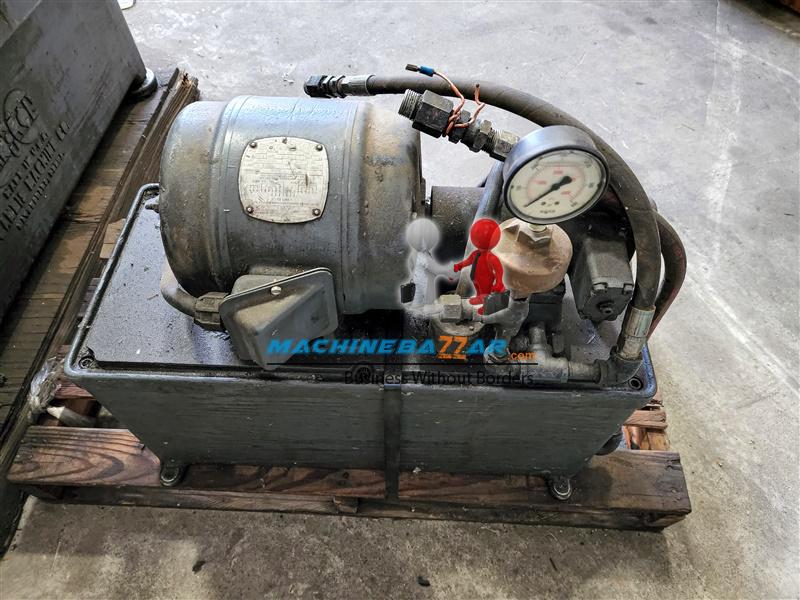

Hydraulic System
Work Rest Support
