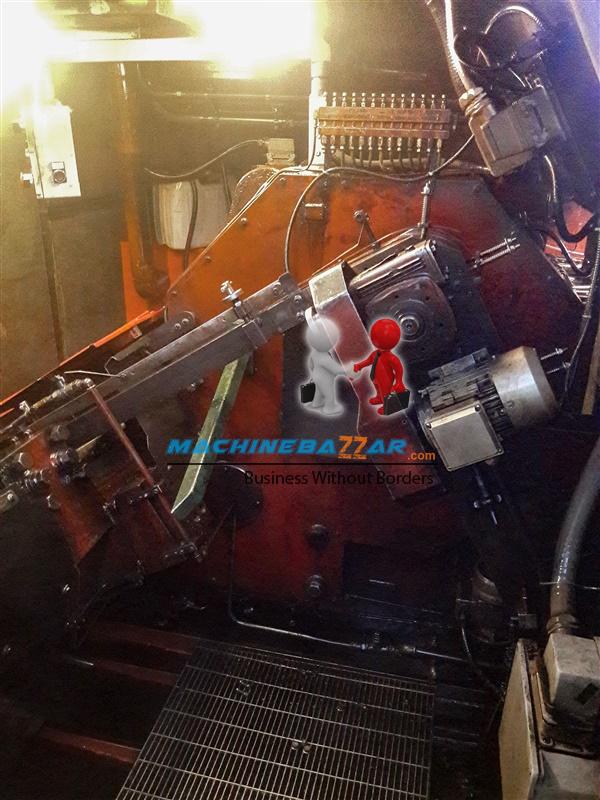

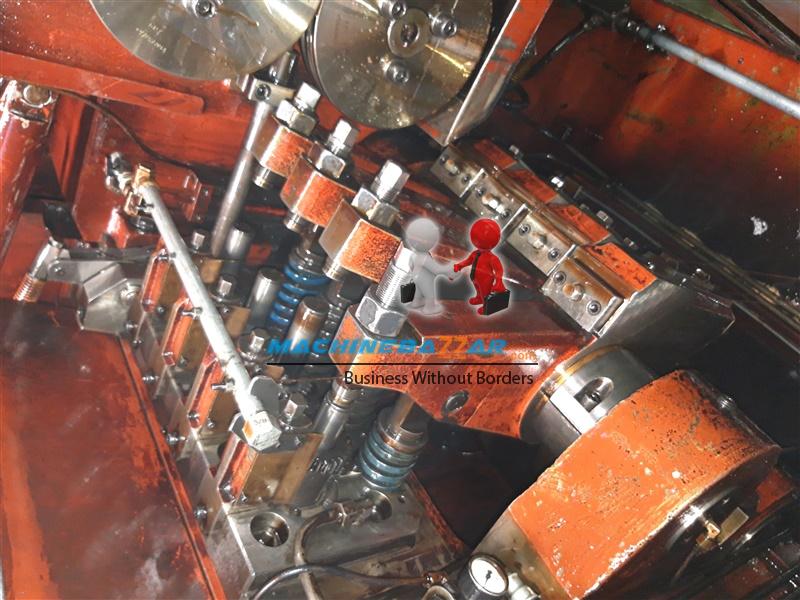

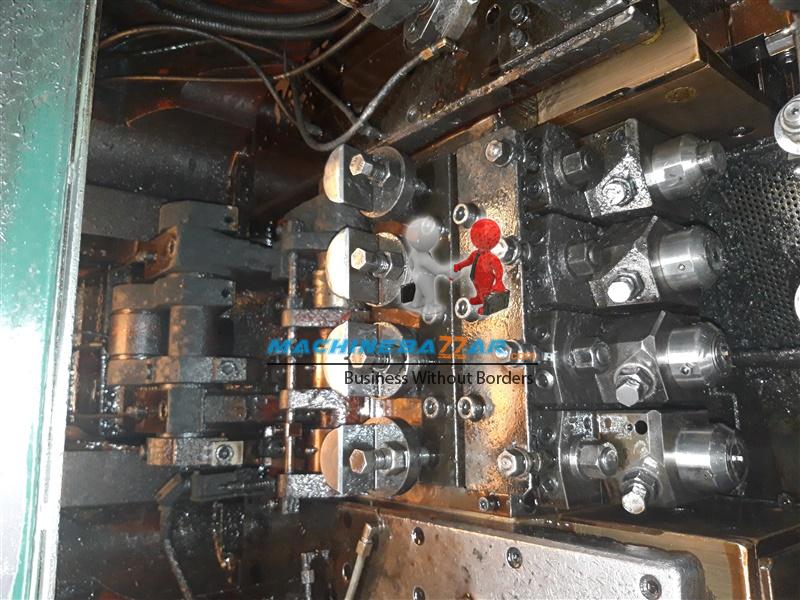

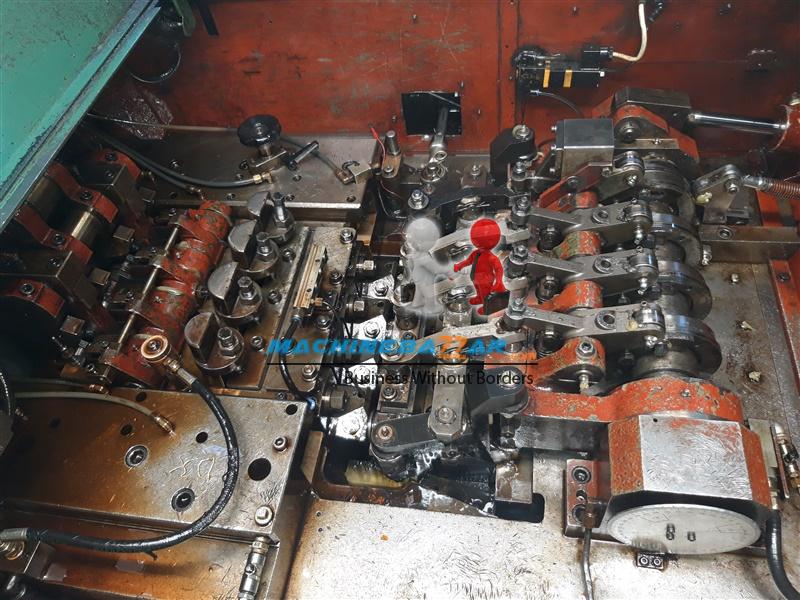

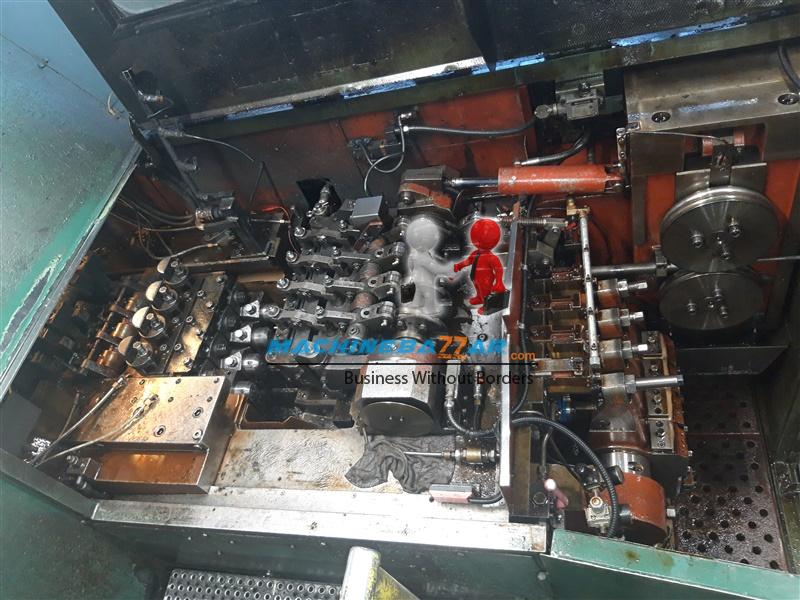

M15 X 90 Sacma 4 Die 5 station Bolt former machine

View Seller Detail

MSZ-2557

Price On Request

Cut of Dia	15 mm
Cut of Length	130 mm
HP	60
Location	Out of india
Make	Sacma
Max Shank Length	90 mm
Max wire dia	15 mm
Model	SP-37
speed of machine	200 ppm
Type	4D5S
Weight	24.5 Ton
Quantity	1

Specifications:

Forging stations: 4
Max. diameter of wire: 15 mm
Production Rate: 200 ppm
Maximum Screw Diameter: M14;
Screw Length Range: 20-90 mm
Maximum Cut-off Length: 127 mm
Dies Diameter: 75 x 125 mm
Punches Diameter: 60 x 125 mm
Cut-off Quill: 39 x 70 mm
Punch Kick-Out Length: 29.3 mm max
Rolling Dies: 190.5/215.9 x 66.67 x 20.63 mm
Motor: 45kW - 60HP
Net Weight: 24.5 Tons
Machine Dimension: 2150 x 5300 x 2600 mm
