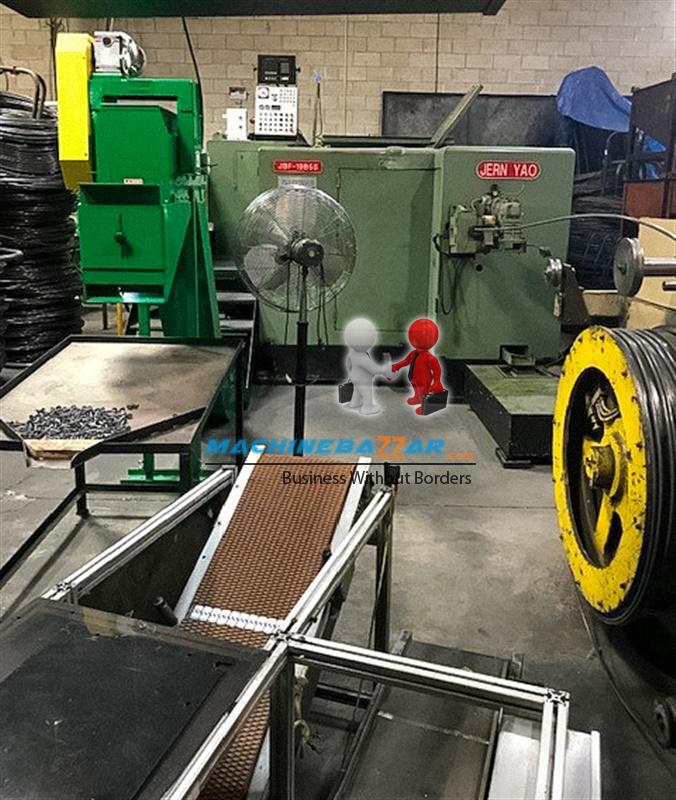

M12 x 120 Jern Yao 5 Die 5 Station Bolt Former

View Seller Detail

MSZ-2552

Price On Request

Country of Mfg	Taiwan
Cut of Dia	15 mm
Cut of Length	140 mm
HP	50
Location	Out of india
Make	Jern Yao
Max Shank Length	120 mm
Max wire dia	15 mm
Model	JBF 19B5S
speed of machine	150 ppm
Type	5D5S
Weight	28 Ton
Quantity	1

Specifications:

Forging Station: 5
Max Cut-Off Dia.: 15 mm
Cut-Off Length:40 to 140 mm
Max. Kick-Out Length: 120 mm
Max. P.K.O. Length: 26 mm
Cut-Off Quill(Dxl): 46 x 80 mm
Main Die Hole(Dxl):80 x 123 mm
Dies Pitch: 114 mm
Punch Hole(Dxl): 60 x 120 mm
Ram Stroke:200 mm
Forging Power: 145 tons
Production Rate: Up to 150 ppm
Motor: 50 HP
Approx. Weight: 28 ton
Products:
1/2"(M12)
Length: 20(Hex)/25(Socket) to 100 mm
Open Upset Dia.: 31 mm
