M12 X 120 Sakamura 4 Die 5 Sation Bolt Former

View Seller Detail

MSZ-2303

Price: USD 153,000.00

Country of Mfg	Taiwan
Cut of Dia	12 mm
Cut of Length	175 mm
Location	Out of India
Make	Sakamura
Max Shank Length	120 mm
Max wire dia	12 mm
Model	BP-440
speed of machine	90 ppm
Year of Mfg	1988
Quantity	1

Specifications:

make: SAKAMURA - type: BP-440 - constr. year abt. 1988

diameter range 12 mm
number of dies 4
shaft length under head 120 mm
number of stages 5
output - pieces/min 90
cutting length 175 mm
number of forming stations 4
press power 160t
weight 23 t
motor power 37 KW

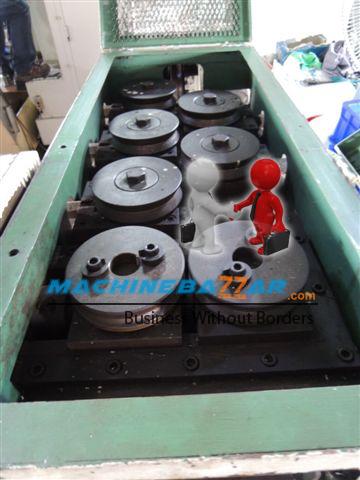

trimming device - overhauled in 2006 and after that never used, with new uncoiler with straightener
